Alpine UTE-204DAB digital car radio
1DIN mechless car radio with DAB+, USB playback and smartphone connectivity
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days

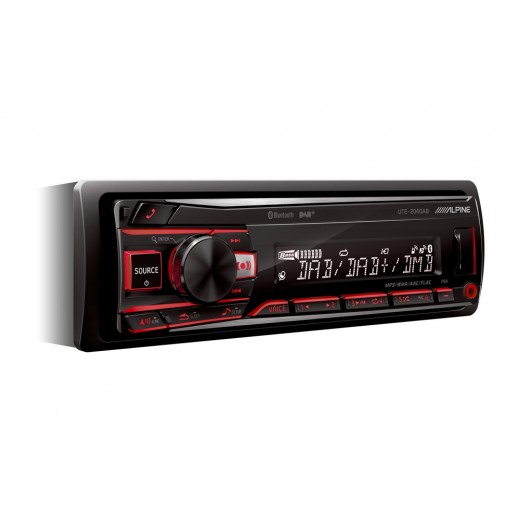

Digital car radio Alpine UTE-204DAB
A digital radio with DAB+, USB playback and smartphone connectivity. The UTE-204DAB is an affordable digital 1DIN DAB+ radio that will upgrade your sound with Alpine quality. It offers many connectivity features to make your journeys more enjoyable. Connect your iPhone or Android to enjoy all your stored audio content. You can also stream Spotify or internet radio via Bluetooth, or listen to your favorite music from a USB flash drive. The included microphone enables clear phone conversations with the built-in Bluetooth handsfree function. You can customize the display and button illumination in full RGB to match your preferences and your vehicle’s dashboard. A wireless remote control is available as an accessory.Main features
- Built-in DAB+ digital radio - the built-in DAB+ tuner uses advanced digital technology to deliver radio reception with excellent sound quality and no noise. DAB+ also offers many advantages over traditional FM: choose from a much wider selection of radio stations and, after an initial scan, easily select channels from an alphabetical or genre list of available stations.
- Made for iPhone - connect your iPhone via USB cable (not included) to enjoy stored audio content or Apple Music in your car. Simply select tracks, albums or playlists on your iPhone or directly via the Alpine head unit.
- Android compatible - if you have an Android phone or tablet, you can connect it via USB (cable not included) to the Alpine head unit and enjoy audio content through your car’s speakers. You can select tracks on the phone/tablet or use the Alpine unit’s rotary encoder.
- Bluetooth - the UTE-204DAB has a built-in, high-quality Bluetooth module that allows you to make safe, handsfree phone calls while driving. A separate microphone is included.
- Enjoy Spotify streaming - Spotify is a great way to discover new music and enjoy all your favorite tracks. Start a playlist, genre or album on your phone before you drive and stream it wirelessly via Bluetooth to the Alpine head unit. Enjoy music through your car’s audio system.
- Stream internet radio - there are many internet radio apps available for your smartphone. Simply start the internet radio app on your phone and connect via Bluetooth or the Alpine head unit’s AUX input (requires an optional AUX cable).

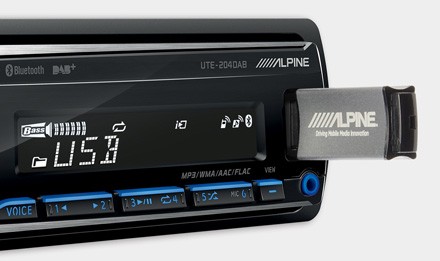

- USB input - the front USB port is ready for USB sticks and USB hard drives with power requirements up to 1000 mA. Take music with you on a USB flash drive and enjoy MP3, AAC, WMA and FLAC files with convenient browsing features.

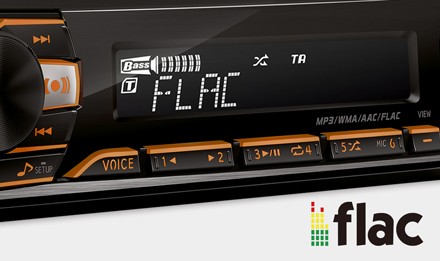

- FLAC playback - high-quality FLAC audio compression is becoming increasingly popular because it delivers much better sound quality compared to standard MP3 files. This Alpine unit can play FLAC files stored on USB media.
- Tune your sound - adjust the Alpine head unit’s sound to your personal preference with Bass Engine SQ for amazing bass output and EQ functions (10 presets or a 3-band parametric equalizer). Connect external amplifiers to the 3 preamp outputs (2 volts), or simply enjoy direct speaker connections with the built-in high-quality 4 x 50 W amplifier.

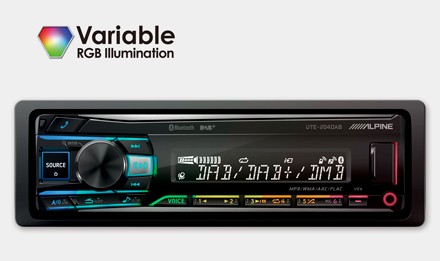

- RGB illumination - customize the display and button backlight to match your vehicle’s interior with an endless range of color combinations.
Technical specifications
- High-power amplifier 4 x 50 W.
- LCD display, single-line.
- Control type: rotary encoder knob.
- Playback of MP3/WMA/AAC/FLAC.
- 3 preamp outputs (2 V, front / rear / subwoofer).
- 3-band parametric equalizer.
- Built-in DAB+ tuner.
- Built-in high-pass filter (HPF).
- Built-in low-pass filter (LPF).
- Built-in Bluetooth® module.
- BT Audio Streaming.
- Compatible with iPhone and Android.
- Front USB input.
- Front AUX input (3.5 mm mini jack).
- Variable illumination (210,000 colors).
- Mechanism-less design.
- Detachable front panel.
- AUTO OFF function (after 30 minutes).
- Support for OEM steering wheel controls.
- ISO connectors included.
- External microphone included.
- Head unit size 178 x 50 x 177 mm.
- Optional IR remote control Alpine RUE-4360.
About the brand
Alpine is a traditional Japanese car audio manufacturer known for the highest quality on the market. The brand’s range includes Alpine head units, Alpine subwoofers, Alpine speakers, Alpine amplifiers and a lot of other accessories for integrating multimedia systems into the most modern cars. Alpine’s extensive offering includes premium multimedia systems with Android Auto and Apple CarPlay for vehicle models such as Fiat Ducato, Mercedes-Benz Vito, Ford Transit and several other models.| Catalog number | UTE-204DAB |
| Brand | Alpine |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 1DIN |
| DisplayAdditional information about the display. Segment, LCD, multi-line, etc. | White LCD display |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | Yes |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | Yes (front input) |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | No |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | FLAC, MP3, WMA, AAC |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 x 50 W |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 3 pairs |
| Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads. | 2 V |
| Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body. | Yes |
| Backlit buttonsColor options for the backlight of the car radio buttons. | Variable RGB |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No |
| Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. | Yes |
