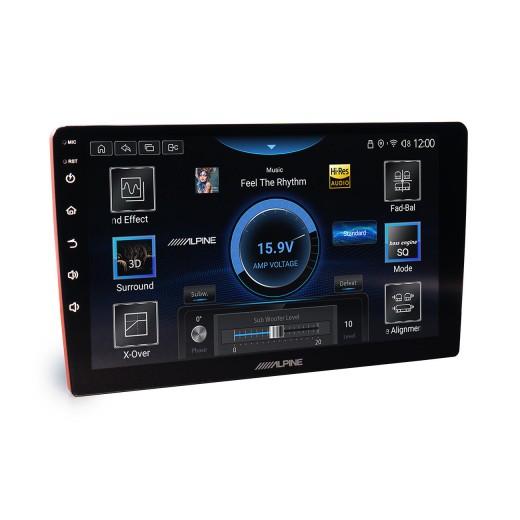

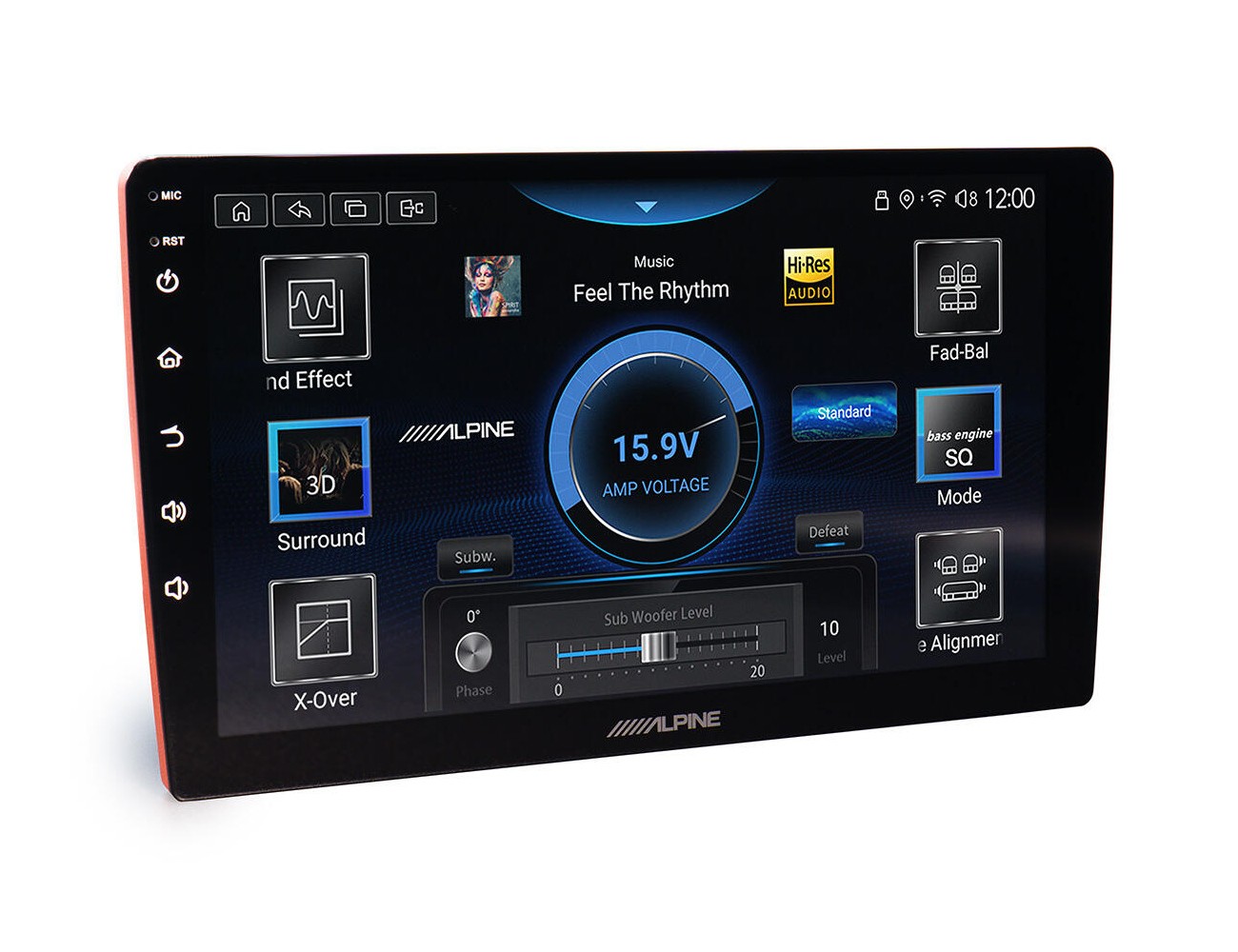

Digital multimedia receiver Alpine INE-AW409S
The Alpine INE-AW409S is a modern 2DIN multimedia car stereo with a large 9" touchscreen and HD resolution of 1280 × 720 px, combining extensive multimedia entertainment, connectivity and comfortable control. A responsive 4-core processor complemented by 4 GB of RAM and 64 GB of internal storage ensures fast reactions and a smooth user experience. Bluetooth 5.0 for hands-free calling and wireless music streaming, Wi‑Fi, MirrorLink, an FM/AM tuner and playback of music and video from USB are all included. The INE-AW409S supports a wide range of audio and video formats including FLAC, AAC, WAV, H.264 and H.265, and also offers basic sound adjustment options via preset equalizer modes and Fader and Balance controls. With two USB inputs, support for rear cameras in analog CVBS as well as the higher-quality AHD format, a CAN interface and the ability to learn steering wheel controls, the unit can be easily integrated into a wide range of vehicles. A clear and intuitive user interface and the sound tuning typical of the Alpine brand are a matter of course.
Main features
- 2DIN multimedia car stereo with 9" touchscreen.
- HD display resolution 1280 × 720 px.
- 4-core processor.
- 4 GB of RAM.
- 64 GB of internal storage.
- Bluetooth 5.0 for hands-free calling and music streaming.
- Support for Wi‑Fi and MirrorLink.

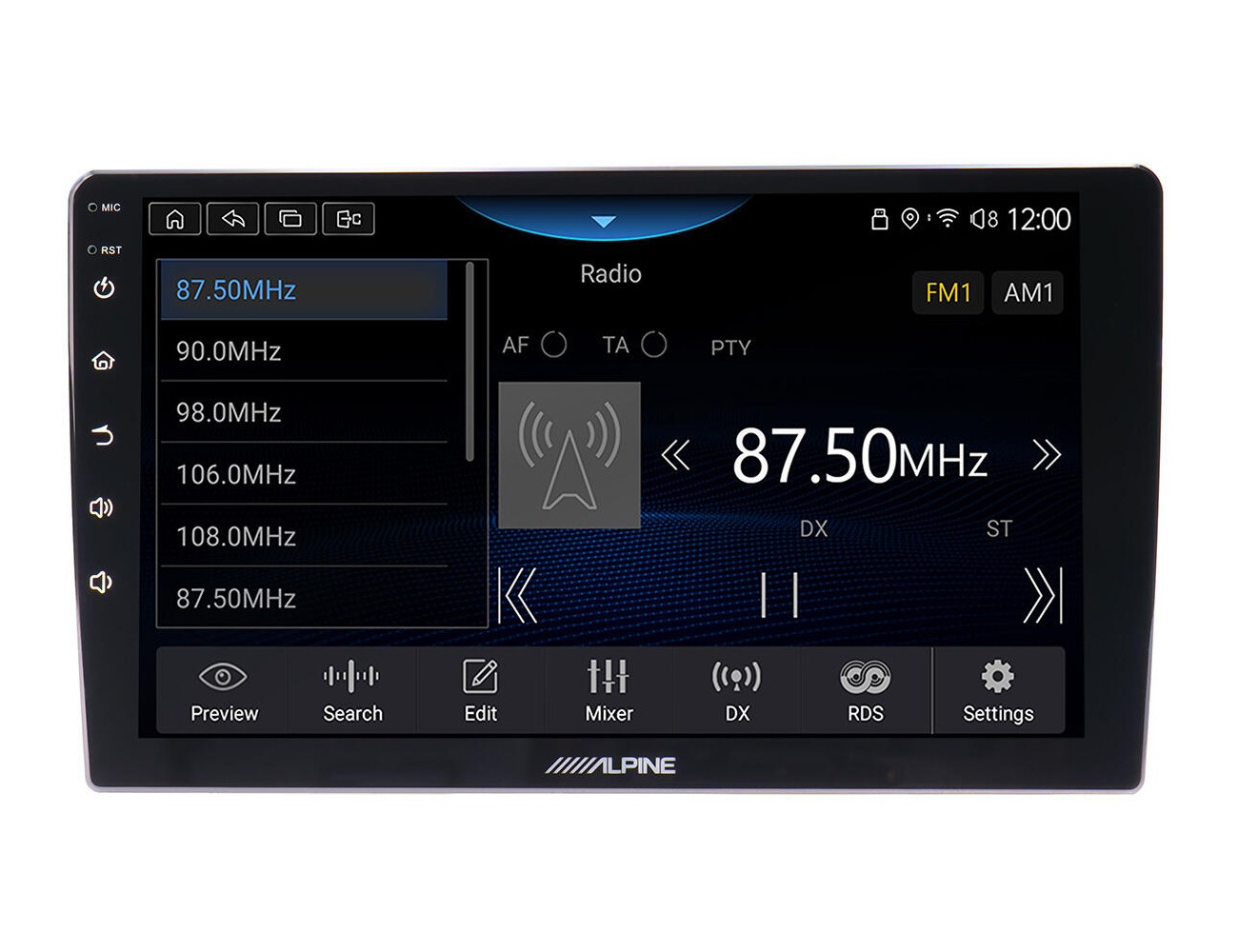

- FM/AM radio.
- 2× USB input.
- Playback of a wide range of audio and video formats.
- Support for the lossless FLAC format.
- Preset equalizer modes.
- Fader and Balance adjustment.
- Support for rear cameras in CVBS and AHD.
- CAN interface.

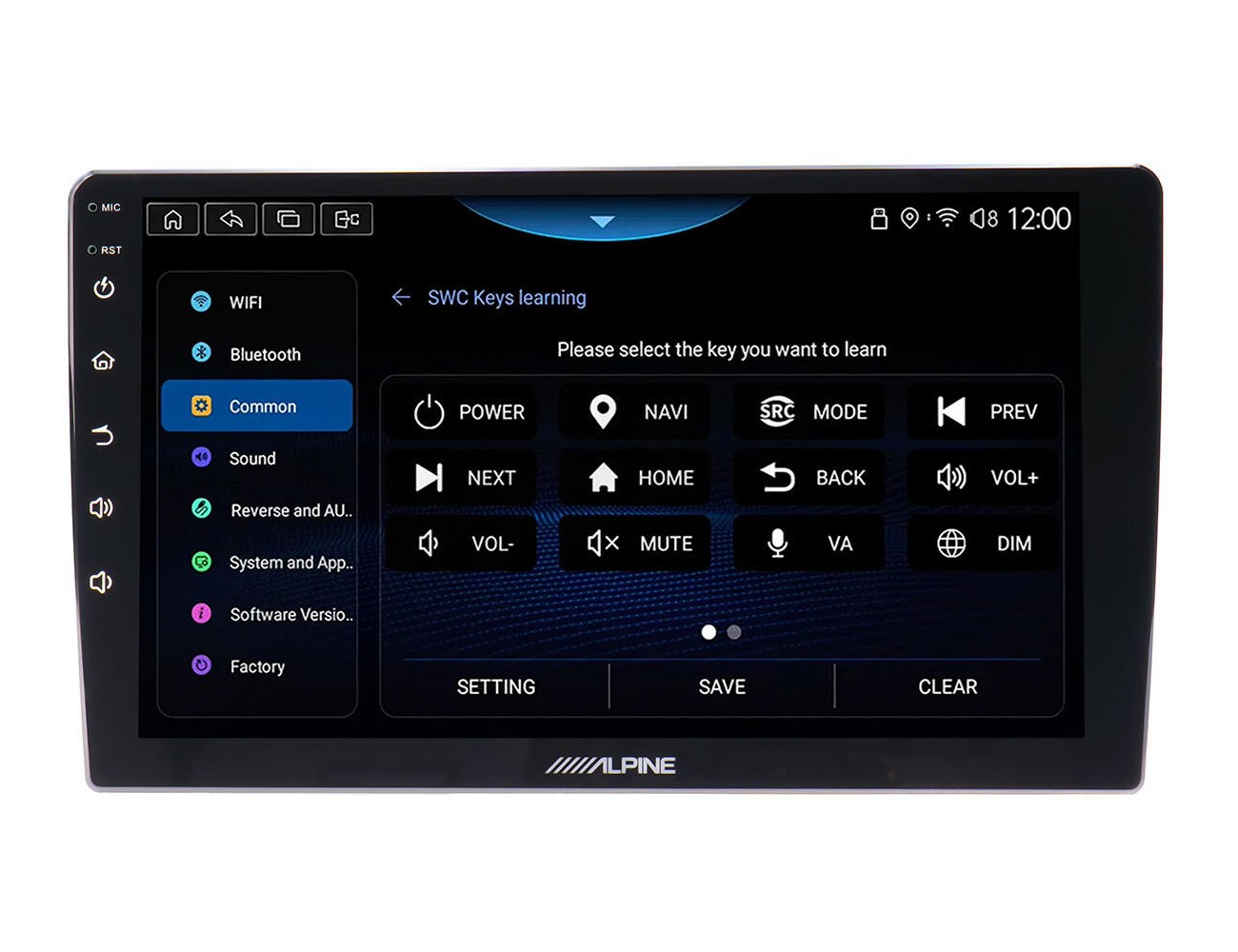

- Ability to learn steering wheel controls (SWC).
- Clear and intuitive user interface.
About the brand
Alpine is a traditional Japanese manufacturer of car audio systems known for the highest quality on the market. The brand's lineup includes Alpine head units, subwoofers, speakers, amplifiers and plenty of other accessories for integrating multimedia systems into the most modern vehicles. Alpine's extensive offering features premium multimedia systems with Android Auto and Apple CarPlay for vehicle models such as the Fiat Ducato, Mercedes‑Benz Vito, Ford Transit and several others.
| Catalog number | INE-AW409S |
| Brand | Alpine |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 2DIN |
| DisplayAdditional information about the display. Segment, LCD, multi-line, etc. | 9" touch LCD, 1280 × 720 px (HD) |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | Yes |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | Yes (2x rear) |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | No |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | MP3 / WMA / AAC / FLAC / OGG / APE / MP2 |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 x 50 W |
| Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body. | Yes |
| Backlit buttonsColor options for the backlight of the car radio buttons. | White LED |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No |
