Alpine iLX-F115S907 multimedia car radio

Be the first to rate the product
11" digital media station with DAB tuner, compatible with Apple CarPlay and Android Auto
More about the product
1.359,60 EUR
Catalog number: ILX-F115S907
We usually stock in 1 - 3 daysWatchdog
Free transport
We will help you with your purchase
  • You can return the goods to us within 14 days
Alpine iLX-F115S907 multimedia car radio

Alpine iLX-F115S907 multimedia car radio

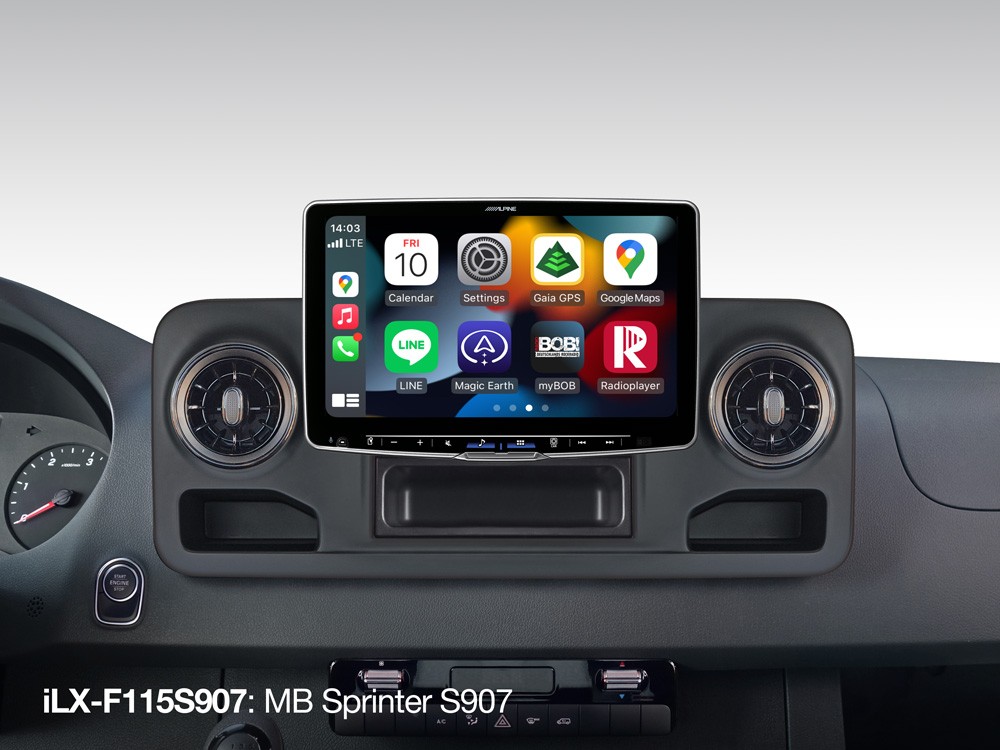

The Alpine iLX-F115S907 Halo11 for Mercedes Sprinter 907 is the second generation of Alpine's world-renowned Halo product line, which features an 11" WXGA high-resolution touchscreen and comes with all necessary mounting parts (such as plug-and-play wiring harness, interface CAN, bezel, etc.) for the Mercedes Sprinter 907. The super-slim display simply floats above the dashboard and can be adjusted to the best possible position.With this amazing head unit, you can enjoy wireless compatibility with Apple CarPlay and Android Auto ( cable), DAB+ digital radio, USB video playback, hands-free and Bluetooth audio streaming and much more. You can choose from a wide range of online navigation apps such as Google Maps and use them on Alpine screen via Apple CarPlay and Android Auto.Bring premium sound to your vehicle: The Alpine Halo11 is the world's first head unit with a built-in Class D amplifier and features a wide range of professional audio tuning features such as 2-band X-over, parametric EQ, digital time correction and much more.

Main features

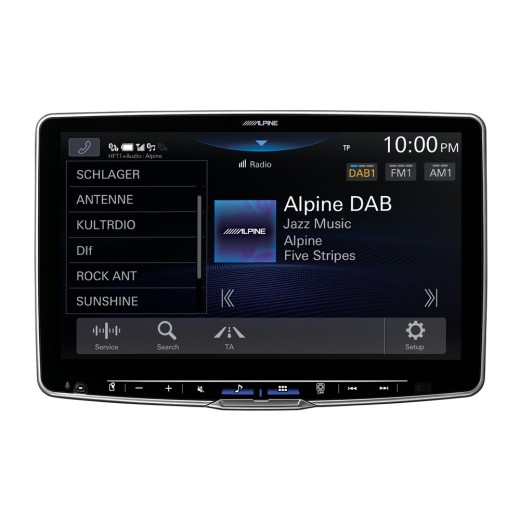

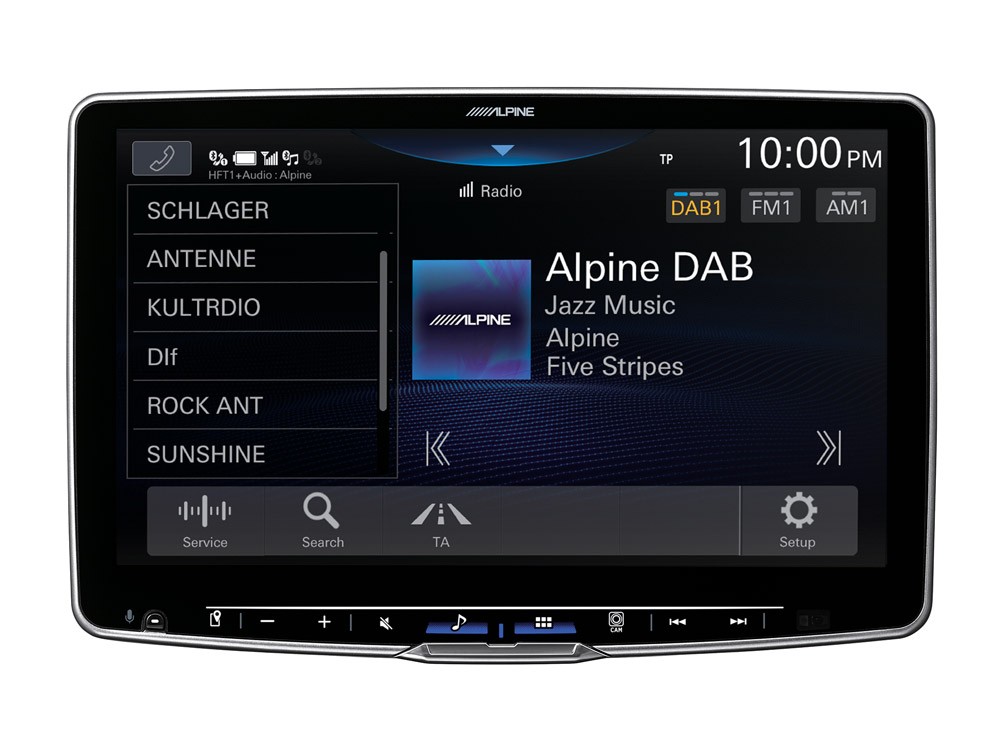

  • 11-inch WXGA HD display - The large 11-inch WXGA touchscreen display has a resolution of 1280 x 720p and contains more than 2.7 million pixel elements - making icons, menus and visual content on the dashboard extremely sharp and vivid. The screen is attached to an adjustable bracket attached to the Ducato 8 radio dock, leaving a free 1DIN pocket underneath to store smaller items.
  • Wireless Apple CarPlay - The iLX-F115S907 "works with Apple CarPlay" wirelessly, allowing iPhone users to make and receive calls, access and write text messages, play music and get directions so they can focus on the road. Apple CarPlay is accessible via the capacitive touchscreen or the microphone button to activate Siri voice control. Thanks to the WiFi connection, you can keep your iPhone in your pocket and not have to plug it in all the time (except for charging).
  • Freely adjustable viewing angle - You can adjust the viewing angle of the iLX-F115S907 from +45 degrees to -20 degrees to match a wide range of dashboard angles. You can freely adjust the viewing angle at any time to achieve the best visibility and prevent glare from sunlight.
  • Adjustable height and distance of the display - the height of the display can be adjusted +/- 3 cm from the center position. This allows for full-standing or hanging display configurations, as well as everything in between. You can also adjust the distance between the display and the instrument panel in the range of 20 mm. After selecting the height of the display and the distance to the dashboard, everything locks into place.
  • Wide options for entertainment and online navigation - the brand new DAB / radio tuner enables DAB - FM switching and allows you to enjoy smooth radio reception without interruption. In addition to the extended USB video playback formats (MP4, MOV, FLV, MKV), the Alpine Halo 11 offers many other entertainment options: the built-in Bluetooth module allows audio streaming from the phone and the HDMI input allows the connection of an external video playback device. You can of course use Android Auto with any compatible Android smartphone (wired connection).
  • The world's first head unit with a built-in Class D amplifier - the iLX-F115S907 is the world's first aftermarket head unit to feature a built-in 4x 50W Class D amplifier - enabling excellent high-end sound reproduction with highly reduced noise or phase shift. A key advantage of Class D amplification technology is its high efficiency of around 90% compared to 50-70% of Class AB amplifiers. New high-speed fans with internal heatsinks keep your Alpine Halo 11 cool - and playing music.
  • Enjoy excellent sound quality - thanks to the 56-band parametric EQ in advanced mode, 2-band digital X-over, 6-channel digital time correction and several Bass Engine SQ and MediaXpander sound tuning options, you have excellent tools for tuning your Alpine Halo 11 and connected amplifier / speaker system to perfection. But we don't stop there: Alpine Halo 11 is Hi-Res Audio certified and can decode and play Hi-Res Audio files up to 96kHz / 1.536kbps from USB sources in uncompressed supported formats such as FLAC, WAV and APE.
  • Drive-Assist cameras - a reversing camera is a great way to ensure safer reversing. The camera image automatically turns on when you put the gear into reverse, and distance guides appear on the screen, which can be adjusted to match the size of your car, so you can park your car safely.

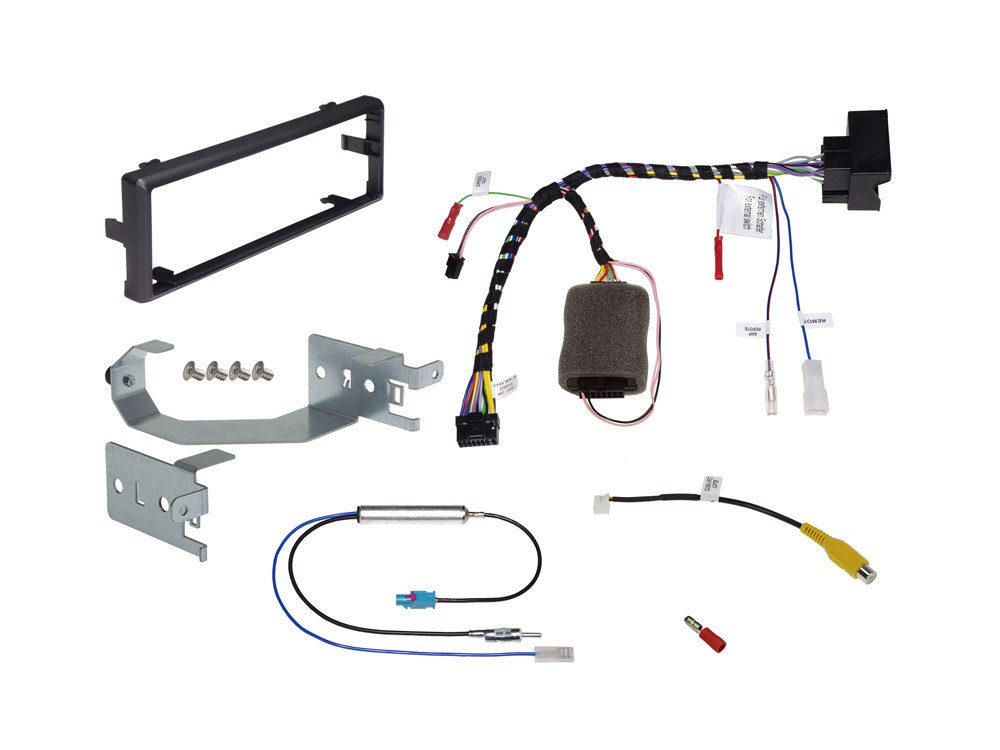

  • Installation kit for Mercedes Sprinter 907 (VS 30) included in the delivery - iLX-F115S907 includes a custom frame, cable harness with CAN interface and antenna adapter.

Technical characteristics

    • 4x 50W high power class D amplifier.
    • 11-inch capacitive touch XWGA display (1280 x 720p).
    • White LED backlight.
    • Display angle adjustable after installation.

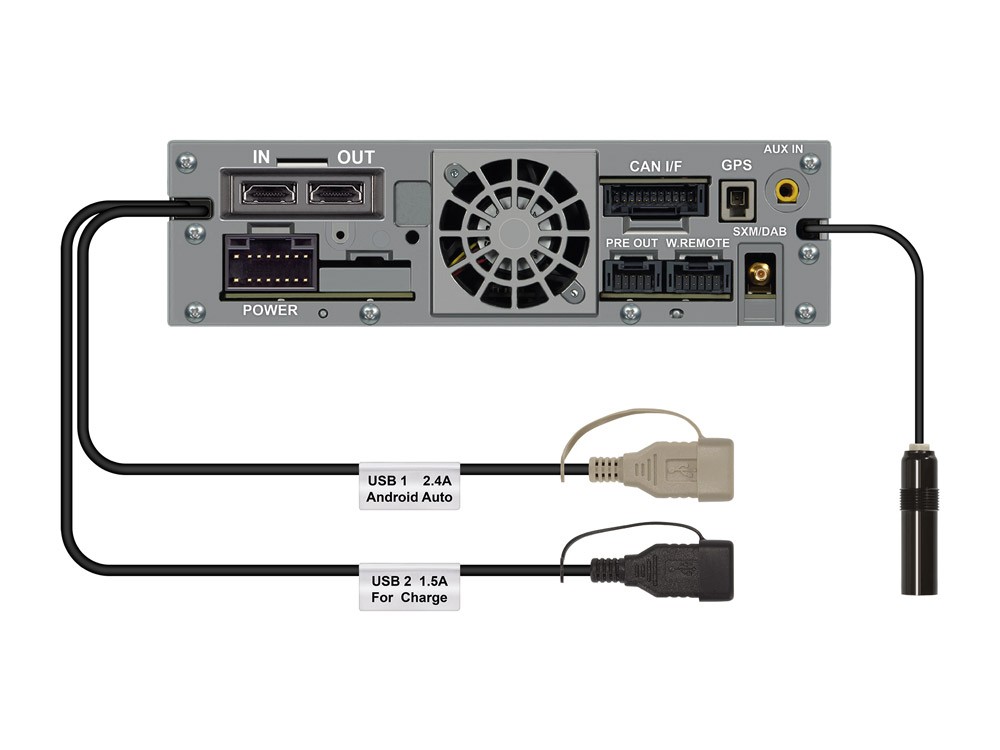

    • 3 preamplifier outputs (6 V, front / rear / subwoofer).
    • 1 A/V AUX input (3.5 mm micro jack).
    • 1 HDMI input / 1 HDMI output.
    • 2 USB ports (1x USB data port / 1x USB charging).
    • Steering wheel remote control ready.
    • Vehicle display interface ready (UART connection).
    • Remote control ready.
    • 2x camera connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch.
    • Camera distance guides (adjustable).
    • Live contrast adjustment.
    • Menu language: 24 languages.
    • Auto Dimmer.
    • Anti-theft security code.
    • Engine Start-Stop intact.
    • Chassis dimension (w x h x d) mm: 178 x 50 x 150 mm.
    • Display size (W x H x D) mm: 269 x 178 x 55 mm.

    About the brand

    Alpine is a traditional Japanese manufacturer of car sound systems, which is characterized by the highest quality on the market. In the offer of this brand, you will find Alpine car radios, Alpine subwoofers, Alpine speakers, Alpine amplifiers and many other accessories for integrating multimedia systems into the most modern cars. Alpine's extensive range includes premium multimedia systems with Android Auto and Apple CarPlay for car models such as the Fiat Ducato, Mercedes-Benz Vito, Ford Transit and some other models.

    Catalog numberILX-F115S907
    BrandAlpine
    LinksOfficial web presentation
    Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios .

    1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm.

    We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm.         		2DIN
    Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. FLAC / MP3 / WMA
    USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). Yes
    CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. No
    DVD driveDVD ("Digital Versatile Disc" or "Digital Video Disc") is a digital optical data carrier format that can contain movies or various other data.

    Car radios with a DVD drive can also play classic CD discs, and the car radio always has a slot for only one disc, the CD drive and the DVD drive are always in one.         		No
    Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. Yes
    Audio Streaming via BluetoothA2DP (Advanced Audio Distribution Profile) is a Bluetooth profile that enables the wireless transmission of stereo audio from an A2DP source, typically a mobile phone or computer, to an A2DP receiver (car radio). These devices usually also support the AVRCP profile. Yes
    External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. Yes
    Made for Apple iPod & iPhoneWhen connecting an Apple device to the car radio, music applications can be controlled using the car radio itself, i.e. basic common functions. Yes
    Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri. Yes
    Works with Android OSAfter connecting a smartphone with the ANDROID operating system, the car radio can control music in the Android OS music player (Google Play, Spotify, etc.), so there is no need to pick up a mobile phone. You control the basic, common functions of the music application with the car radio itself. Yes
    Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. Yes
    Backlit buttonsColor options for the backlight of the car radio buttons. White
    Display backlightOptions for backlighting the car radio display. LED
    DisplayAdditional information about the display. Segment, LCD, multi-line, etc. 11\" capacitive touchscreen
    Equalizer / DSP processorA basic or parametric equalizer allows you to adjust the sound at individual frequencies in finer steps.

    Using the DSP processor , you can set the time correction, connect the speakers actively (actively): without crossovers, set the location of the speakers and determine their size digitally.         		Yes
    Built-in DAB+ tunerIntegrated DAB+ (Digital Audio Broadcasting) digital FM tuner for reception of digital FM radio signal broadcasting. Before buying a car radio with a DAB+ tuner, we recommend checking whether the package includes a DAB+ antenna, without which you cannot receive digital broadcasts. This information is usually provided on the manufacturer's official website. Yes
    Direct subwoofer controlSubwoofer settings, where you can add or subtract the dB level, i.e. subtract or add bass according to the recording. Higher class car radios can also rotate the phase and other functions for perfect bass. Some car radios allow you to turn off the subwoofer completely, with a button in the car radio menu. This is a very useful feature if you have a subwoofer in your car. Yes
    Cable with ISO terminal included in the packageThere is usually a specific 12-18 pin connector on the back of the car radio itself, into which the reduction to standard ISO is connected. This cable is always included in the package of branded aftermarket car radios and has a length of 8 - 15 cm. Yes
    Cover for the front panel included in the packagePlastic or fabric cover for the front panel. A good helper against destroying or scratching the front panel of the car radio. No
    OtherHigh-speed smartphone charging via USB
