Advanced Navigation Unit X703D-A4

7" touch screen, 1DIN chassis, built-in navigation, with TomTom maps, compatible with Apple CarPlay and Android Auto, for Audi A4 (2007 - 2015), Audi A5 (2007-2016)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Description and parameters
Evaluation0
Category

7" Advanced Alpine X703D-A4 Navigation Unit for Audi A4, A5 (2007 - 2016)

The Alpine X703D-A4 multimedia system is a top-notch 7" infotainment solution for Audi A4, A5 vehicles, delivering exceptional sound, visuals, and modern features directly to your car. This system is designed for seamless integration into the Audi A4, A5 interior, offering intuitive control, support for Apple CarPlay, Android Auto, and many other features for maximum driving comfort.

Main Features

7" Touch Screen: High resolution for a clear and concise display, making it easy to control all system functions.
Compatibility with Audi A4, A5: Designed specifically for integration with Audi A4, A5 vehicles, ensuring a perfect look and compatibility with your car.

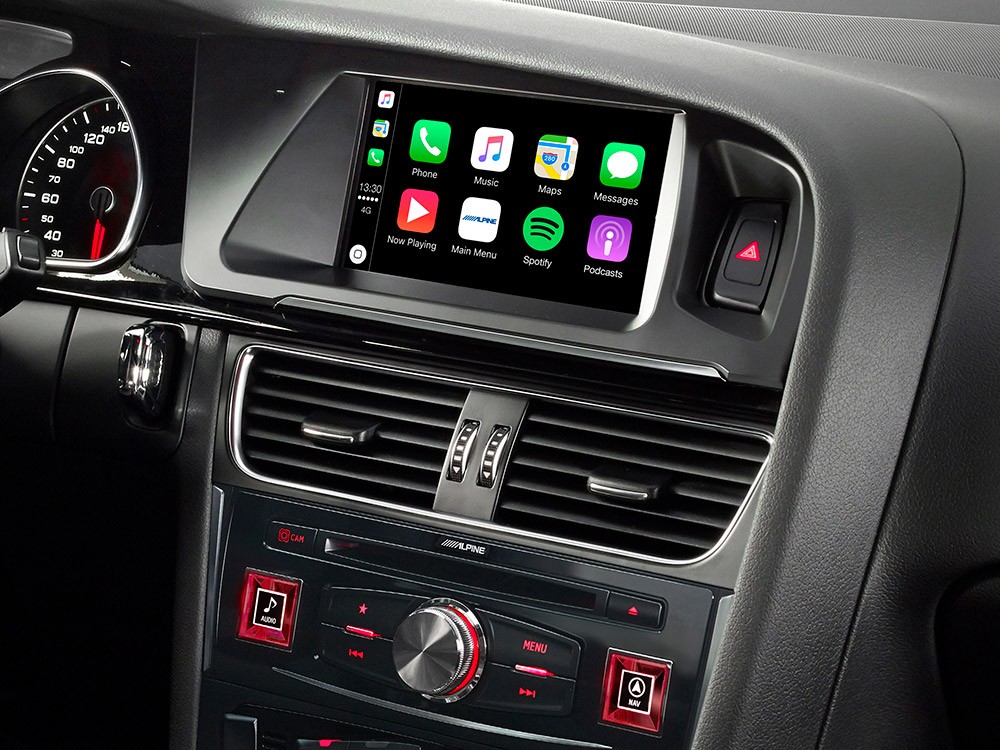

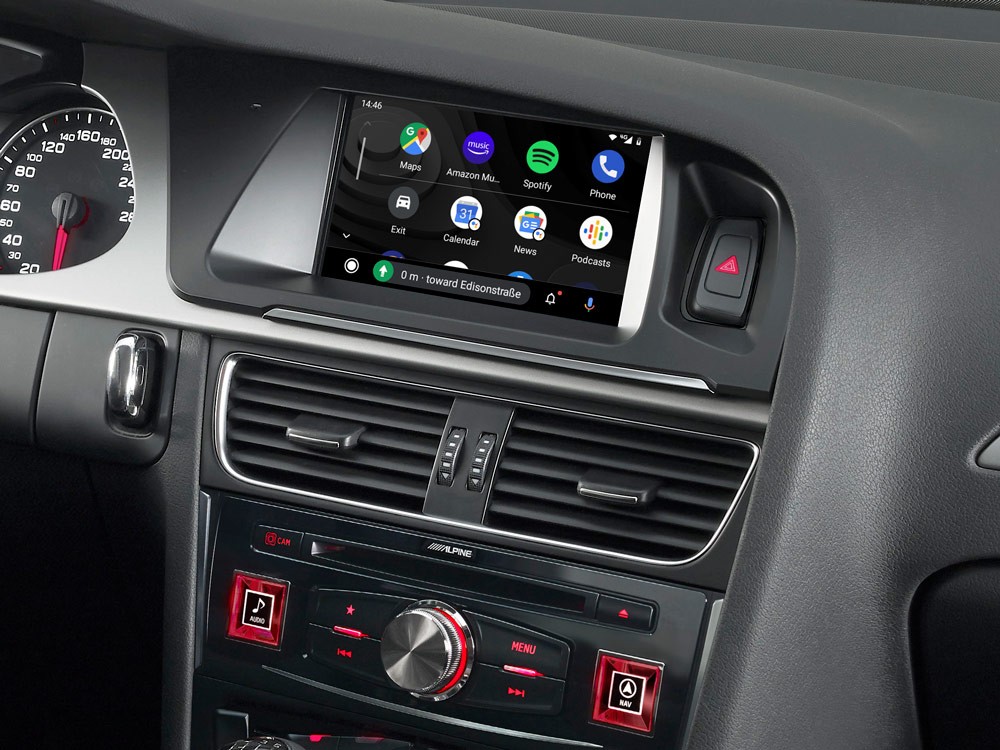

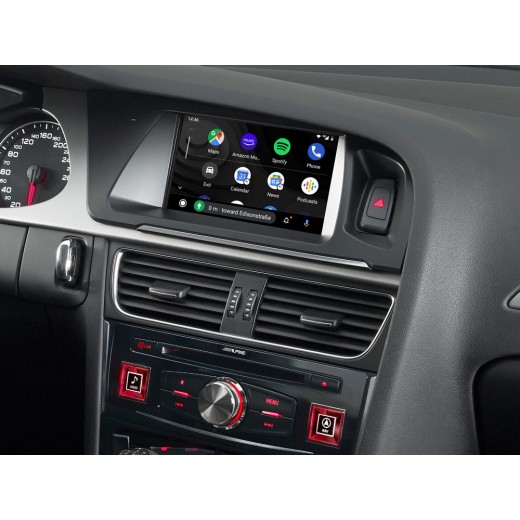

Apple CarPlay and Android Auto: Wireless compatibility with Apple CarPlay and wired support for Android Auto let you connect your mobile devices and use navigation, music, and apps directly on the screen.
Built-in DAB+ Tuner: Enjoy quality digital radio reception with a wide range of stations and improved sound quality.
Bluetooth for Hands-Free Calls: Integrated Bluetooth allows for convenient hands-free calls and wireless music streaming.
Built-in Class D Amplifier: Ensures excellent sound quality for your audio experiences while driving.

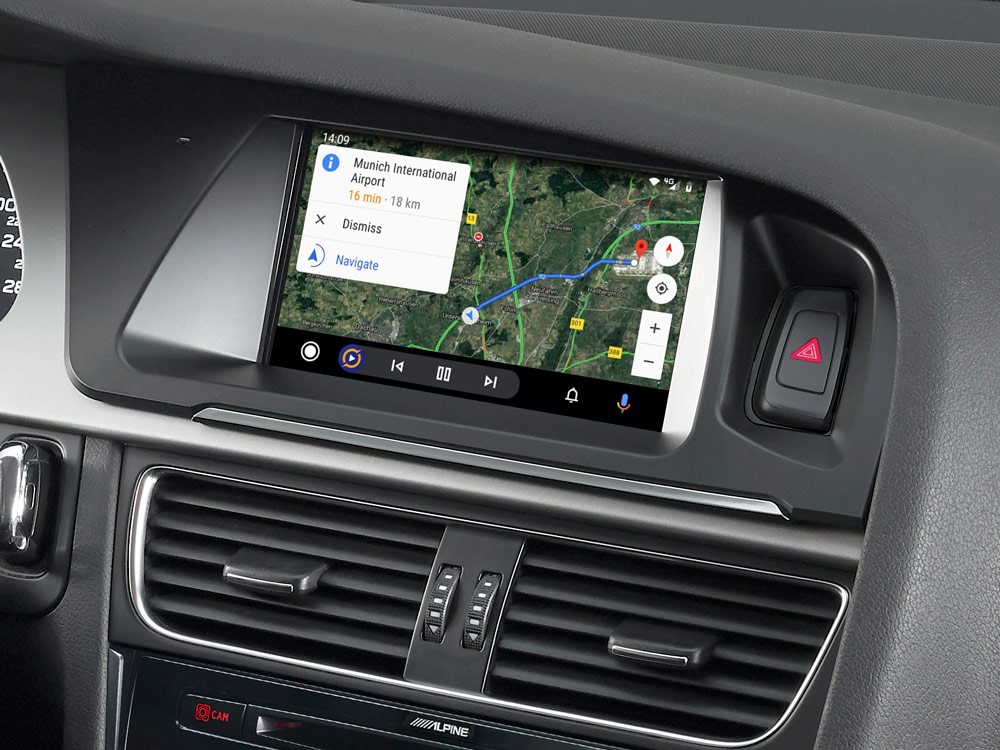

Navigation Support: Compatible with navigation apps, allowing you to easily find your way and track current traffic information.
USB Ports and HDMI Input: For connecting external devices like USB drives or video players.
Inputs for Rear Camera and Parking Sensors: Allows connection of a camera for improved visibility when parking and maneuvering.

Technical Features

Resolution: 1280 x 720 pixels for a clear and detailed image.
Brightness: 500 cd/m² for good visibility even in direct sunlight.
Touch Technology: Capacitive touch for fast and accurate control.
User Interface: Intuitive and easy-to-use interface with customization options.
Amplifier: Built-in Class D amplifier for excellent sound and low power loss.
Audio Formats: Support for MP3, WMA, AAC, FLAC, WAV, and other formats for music playback.
RDS (Radio Data System): Support for RDS for text information about radio stations.
Parametric Equalizer.
Digital Time Alignment.
3-way X-over for optimal frequency distribution.
Apple CarPlay: Wireless compatibility for iPhone for access to apps, navigation, music, and more.
Android Auto: Wired support for Android devices, providing access to apps, maps, and music.
Bluetooth: Support for hands-free calls and music streaming.
DAB+/DAB+ Slideshow: Digital radio with the ability to display information and images on the screen.
USB: 1x USB port for connecting USB devices.
HDMI Input: For connecting external devices like video players or other multimedia devices.
Aux Input: For connecting additional external audio sources.
Compatibility with Navigation Apps: Use of Apple Maps and Google Maps via Apple CarPlay and Android Auto.
Support for Connecting External Navigation Units via USB or HDMI for enhanced navigation experience.
Rear Camera: Option to connect a rear camera for better visibility when reversing and parking.
Parking Sensors: Integration with parking sensors for better maneuvering and obstacle avoidance.
Support for Adaptive Parking Assistants: Ability to connect and control vehicle parking assistants.
RCA Outputs: For connecting external amplifiers or additional audio/video devices.
2x RCA Inputs: For connecting external audio and video devices.
Support for Multiple Cameras: Option to connect several cameras for better visibility (front, rear, side).
Subwoofer Output: Dedicated output for connecting a subwoofer to ensure quality bass sound.

About the Brand

Alpine is a traditional Japanese manufacturer of car audio systems, known for the highest quality on the market. The brand offers Alpine car radios, subwoofers, speakers, amplifiers, and a wide range of accessories for integrating multimedia systems into the most modern cars. Alpine's extensive range includes premium multimedia systems with Android Auto and Apple CarPlay for car models such as Fiat Ducato, Mercedes-Benz Vito, Ford Transit, and some other models.

Catalog number	X703D-A4
Brand	Alpine
Links	Official web presentation
Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm.	1DIN
Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input.	FLAC / MP3 / WMA / AAC / MP4
USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable).	Yes
CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD.	No
SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios.	No
DVD driveDVD ("Digital Versatile Disc" or "Digital Video Disc") is a digital optical data carrier format that can contain movies or various other data. Car radios with a DVD drive can also play classic CD discs, and the car radio always has a slot for only one disc, the CD drive and the DVD drive are always in one.	No
HDMI / MHLHDMI stands for High-Definition Multi-media Interface, an uncompressed video and audio signal in digital format. HDMI supports video transmission in standard, enhanced or high-definition quality, and up to 8-channel digital audio. Mobile High-definition Link (MHL) is an industry norm and standard for a mobile multimedia (audio/video) interface that allows you to connect a smartphone, tablet and other portable electronic devices to car stereos with high definition image and sound. The MHL standard supports video up to full HD 1080p/60 and audio with 7.1 channels.	Yes (requires Alpine Special HDMI connector)
Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function.	Yes
Audio Streaming via BluetoothA2DP (Advanced Audio Distribution Profile) is a Bluetooth profile that enables the wireless transmission of stereo audio from an A2DP source, typically a mobile phone or computer, to an A2DP receiver (car radio). These devices usually also support the AVRCP profile.	Yes
External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror.	Yes
Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases.	3 pairs
Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads.	4 V
Made for Apple iPod & iPhoneWhen connecting an Apple device to the car radio, music applications can be controlled using the car radio itself, i.e. basic common functions.	Yes
Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri.	Yes
Works with Android OSAfter connecting a smartphone with the ANDROID operating system, the car radio can control music in the Android OS music player (Google Play, Spotify, etc.), so there is no need to pick up a mobile phone. You control the basic, common functions of the music application with the car radio itself.	Yes
Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works.	Yes
Backlit buttonsColor options for the backlight of the car radio buttons.	White LEDs
Display backlightOptions for backlighting the car radio display.	White LEDs
DisplayAdditional information about the display. Segment, LCD, multi-line, etc.	7\" capacitive WVGA high-resolution display
DimmerThe Dimmer function is used to automatically reduce the brightness after dark. The dimmer can usually be set manually in a few steps.	Yes
Equalizer / DSP processorA basic or parametric equalizer allows you to adjust the sound at individual frequencies in finer steps. Using the DSP processor , you can set the time correction, connect the speakers actively (actively): without crossovers, set the location of the speakers and determine their size digitally.	Yes
Dual zoneThe "Dual Zone" function allows you to split the signal in the multimedia car radio and, for example, the rear or ceiling monitor. If the car radio has this function, you, as the driver, watch a TV signal, for example, and the rear passengers watch a movie on the overhead monitor.	Yes
Built-in DAB+ tunerIntegrated DAB+ (Digital Audio Broadcasting) digital FM tuner for reception of digital FM radio signal broadcasting. Before buying a car radio with a DAB+ tuner, we recommend checking whether the package includes a DAB+ antenna, without which you cannot receive digital broadcasts. This information is usually provided on the manufacturer's official website.	Yes
Direct subwoofer controlSubwoofer settings, where you can add or subtract the dB level, i.e. subtract or add bass according to the recording. Higher class car radios can also rotate the phase and other functions for perfect bass. Some car radios allow you to turn off the subwoofer completely, with a button in the car radio menu. This is a very useful feature if you have a subwoofer in your car.	Yes
Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely.	No
Input for steering wheel button control adapterCar radios equipped with a cable input or a 3.5 Jack socket for an adapter to control the buttons on the steering wheel. Most branded car radios have this input, from the back of the car radio body.	Yes
