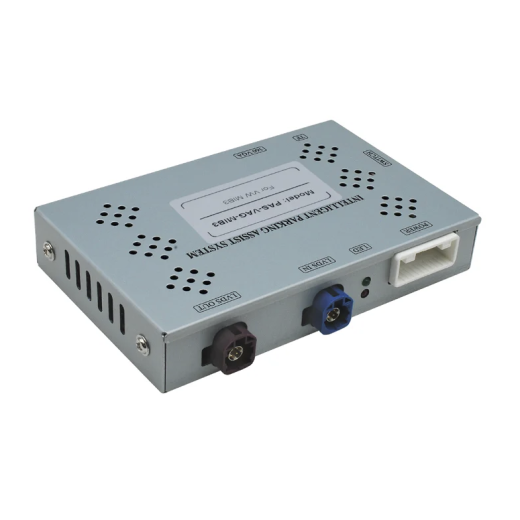

Adapter for parking camera VW / Škoda MIB3 230580.

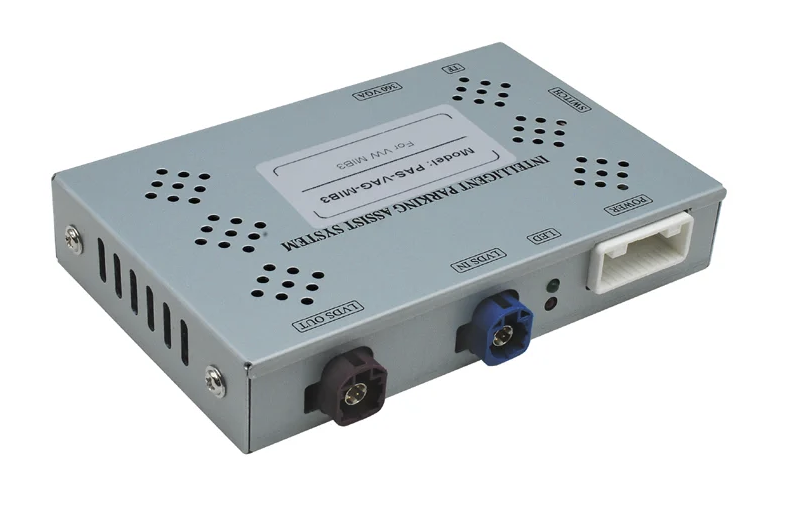

Adapter for parking camera VW / Škoda MIB3 230580 is a module for connecting front and rear parking cameras to original multimedia systems MIB3 High End in selected Volkswagen and Škoda vehicles. It enables adding a camera system without replacing the original navigation and preserves the original dashboard appearance.
The module offers an input for a rear camera with automatic activation when reverse gear is engaged, an input for a front camera and an additional video input for, for example, a DVR camera, TV tuner or DVD player. It also supports displaying original parking sensors PDC and moving guiding parking lines FPG. It can be used with cameras using PAL, NTSC or CVBS video signal.
Main features.
- Adapter for connecting a parking camera to the OEM VW / Škoda MIB3 system.
- Intended for MIB3 High End versions.
- Input for a rear parking camera.
- Automatic image activation when reverse gear is engaged.
- Input for a front parking camera.
- Video input for a DVR camera, TV tuner or DVD player.
- Ability to display the view behind the vehicle even while driving.
- 12 V power supply for the rear parking camera.
- Support for OEM parking sensors PDC.
- Support for moving guiding lines FPG.
- Compatibility with PAL, NTSC or CVBS cameras.
- Module transmits video signal only.
Compatibility.
The adapter is intended for cars with the original MIB3 High End navigation and a 9.2" touchscreen. Aunika lists compatibility, for example, with these vehicles:
- Škoda Scala 2020→.
- Škoda Kamiq 2020→.
- Škoda Octavia IV 2020→.
- Škoda cars with OEM Amundsen MIB3 with 9.2" touchscreen.
- VW Arteon 2020→.
- VW Golf VIII 2020→.
- VW Passat B8 2020→.
- VW Tiguan 6/2020→.
- VW T6.1 2020→.
- VW cars with OEM Discover Pro MIB3 with 9.2" touchscreen.
A more detailed list on the product page also includes Škoda Kamiq NW4 7/2019→, Octavia IV NX 2020→, Scala NW 2019→, VW Arteon 3H facelift 2020→, Passat B8 3G 2015–2023, Tiguan II AD1 1/2016→ and Transporter T6.1 2020–2024.
Important notice.
- The adapter is intended for MIB3 High End versions.
- Low End version with the USB connector in the lower right corner of the screen is not supported.
- Compatibility is governed by the specific OEM unit and display, not just the car model.
- The module supports video signal only.
- To connect audio signal to the OEM unit, use the AUX input or an FM modulator.
- The device is intended exclusively for professional installation by an authorized service or a trained installation workshop.
Package contents.
- Module / adapter for connecting a parking camera.
- Cabling for connection to the original unit.
- Video inputs for connecting a front camera, rear camera or external video source.
Technical data.
- Product type: adapter / input for parking camera.
- Order number: 2 30 580.
- Designed for: VW / Škoda.
- OEM system: MIB3 High End.
- Display: 9.2" touchscreen.
- Video standard: PAL / NTSC / CVBS.
- Functions: rear camera, front camera, additional video input.
- Support: PDC, FPG, reverse gear engagement information.
- Package: 1 piece.
| Catalog number | 230580 |
| Brand | Aunika |
