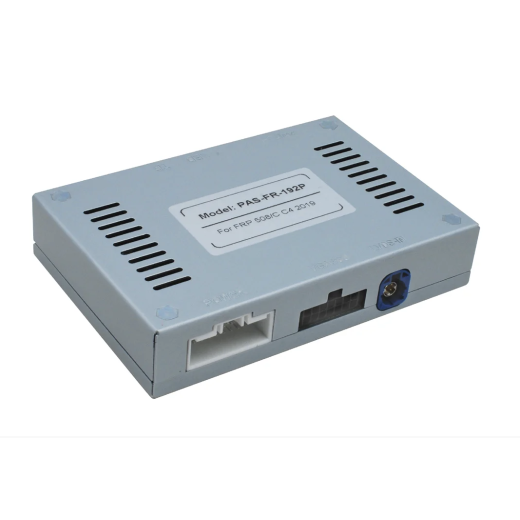

Adapter for parking camera Peugeot / Citroën / Toyota / Opel 230561
Adapter for parking camera Peugeot / Citroën / Toyota / Opel 230561 is a module for connecting front and rear parking cameras to original multimedia systems NAC / RCC with a 7" or 8" monitor. It allows adding a parking camera to selected vehicles without replacing the original unit, preserving the vehicle's interior appearance.
The adapter offers an input for a rear camera with automatic activation when reverse gear is engaged, an input for a front camera and an additional video input for, for example, a DVR camera, TV tuner or DVD player. It also supports displaying OEM parking sensors PDC and moving guiding parking lines FPG. It can be used with cameras using PAL or NTSC video signal.
Main features.
- Adapter for connecting a parking camera to the vehicle's OEM system.
- Designed for NAC / RCC systems with a 7" or 8" monitor.
- Input for a rear parking camera.
- Automatic image activation when reverse gear is engaged.
- Input for a front parking camera.
- Video input for a DVR camera, TV tuner or DVD player.
- Option to display the rear view while driving.
- 12 V power supply for the rear parking camera.
- Support for OEM parking sensors PDC.
- Support for moving guiding lines FPG.
- Compatibility with PAL and NTSC cameras.
- Module transmits video signal only.
Compatibility.
The adapter is intended for selected Peugeot, Citroën, Toyota and Opel vehicles with the original NAC low/high or RCC unit and a 7" / 8" monitor. Stated compatibility includes, for example:
- Citroën C3 from 2017.
- Citroën C4 from 2017.
- Citroën C6 from 2016.
- Citroën Berlingo III K9 2016–2024.
- Citroën Jumpy 2016–2024.
- Citroën SpaceTourer 2016–2024.
- Opel Crossland from 2017.
- Opel Grandland X from 2017.
- Opel Combo 2019–2024.
- Opel Vivaro C 2019–2024.
- Opel Zafira Life 2019–2024.
- Peugeot 208 from 2017.
- Peugeot 308 from 2017.
- Peugeot 2008 from 2017.
- Peugeot 3008 from 2016.
- Peugeot 4008 from 2017.
- Peugeot 5008 from 2017.
- Peugeot Partner III K9 from 2018.
- Peugeot Expert 2016–2024.
- Peugeot Traveller 2016–2024.
- Peugeot Rifter from 2018.
- Toyota ProAce 2016–2024.
- Toyota ProAce Verso 2016–2024.
- Toyota ProAce City 2018–2024.
Important notice.
- For cars with a 9", 10.25" or 12.3" display a different module is intended: 2 30 562.
- Compatibility is always governed by the specific OEM unit and display type.
- The module transmits video signal only.
- To connect audio signal, use the AUX input or an FM modulator.
- The device is intended exclusively for professional installation by an authorized service or a trained installation workshop.
- This product replaces module 230563.
Package contents.
- Module / adapter for connecting a parking camera.
- Cabling for connection to the original unit.
- Video inputs for connecting front, rear or external cameras.
The supplier states the package contains 1 piece; a precise detailed breakdown of all parts is not provided in the available description.
Technical data.
- Product type: adapter / input for parking camera.
- Order number: 2 30 561.
- Designed for: Peugeot / Citroën / Toyota / Opel.
- OEM system: NAC / RCC.
- Display: 7" / 8".
- Video standard: PAL / NTSC.
- Functions: rear camera, front camera, additional video input.
- Support: PDC, FPG, reverse gear engagement information.
| Catalog number | 230561 |
| Brand | Aunika |
