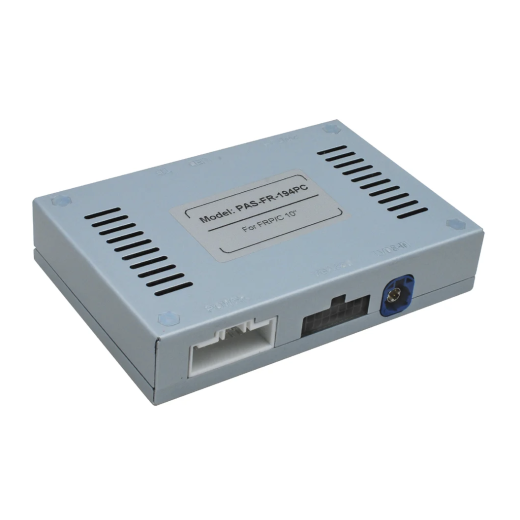

Adapter for parking camera Peugeot / Citroën / Opel / Toyota 230562
More about the product
Adapter for parking camera Peugeot / Citroën / Opel / Toyota 230562.
Adapter for parking camera Peugeot / Citroën / Opel / Toyota 230562 is a video module for connecting front and rear parking cameras to original multimedia systems in vehicles with a 9", 10.25" or 12.3" monitor. It allows adding a camera system without replacing the original unit and preserves the vehicle's interior appearance.
The module offers an input for a rear parking camera with automatic activation when reverse gear is engaged, an input for a front camera and an additional video input for, for example, a DVR camera, TV tuner or DVD player. It also supports displaying original parking sensors PDC and moving guiding parking lines FPG. It can be used with cameras using PAL or NTSC video signal.
Main features.
- Adapter for connecting front and rear parking cameras.
- Designed for OEM systems Peugeot / Citroën / Opel / Toyota.
- Suitable for original systems with 9", 10.25" or 12.3" monitor.
- Input for a rear parking camera.
- Automatic image activation when reverse gear is engaged.
- Input for a front parking camera.
- Additional video input for a DVR camera, TV tuner or DVD player.
- Option to display the rear view while driving.
- 12 V power supply for the rear parking camera.
- Support for OEM parking sensors PDC.
- Support for moving guiding lines FPG.
- Compatibility with PAL and NTSC cameras.
- Module transmits video signal only.
Compatibility.
The adapter is intended for vehicles with an original OEM system with a 9", 10.25" or 12.3" monitor. Aunika lists compatibility, for example, with the following models: Citroën C3 from 2019, Citroën C4 from 2019, Citroën C4 Aircross from 2016, Citroën Berlingo III K9 from 2018, Peugeot 308 from 2016, Peugeot 3008 from 2016, Peugeot 4008 from 2017, Peugeot 5008 from 2017, Peugeot Partner III K9 from 2018, Opel Combo from 2019, Toyota ProAce Verso from 2019 and Toyota ProAce City from 2019.
A more detailed list on the product page also includes, for example, Citroën Berlingo K9/EK9 6/2018→, Citroën C3 III 2016–2024, Citroën C4 B7 2010–2020, Opel Combo E 2018→, Peugeot 3008 II 2016–2024, Peugeot 308 II 2013–2021, Peugeot 5008 II 2017–2024, Peugeot Partner III from 9/2018 and Toyota Proace City 2018→.
Important notice.
- For vehicles with a 7" or 8" display the intended module is 2 30 561.
- Compatibility is governed by the specific OEM unit and display size.
- The module supports video signal only.
- To connect audio signal to the OEM unit, use the AUX input or an FM modulator.
- The device is intended exclusively for professional installation by an authorized service or a trained installation workshop.
Package contents.
- Module / adapter for connecting a parking camera.
- Cabling for connection to the original unit.
- Video inputs for connecting a front camera, rear camera or external video source.
Technical data.
- Product type: adapter / input for parking camera.
- Order number: 2 30 562.
- Designed for: Peugeot / Citroën / Opel / Toyota.
- OEM system: original system with 9", 10.25" or 12.3" monitor.
- Video standard: PAL / NTSC.
- Functions: rear camera, front camera, additional video input.
- Support: PDC, FPG, reverse gear engagement information.
- Package: 1 piece.
| Catalog number | 230562 |
| Brand | Aunika |
