ACV shrink tubing 9.5 mm / 8 m
Heat shrink tubing, diameter before shrinking 9.5 mm, length 8 m
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days

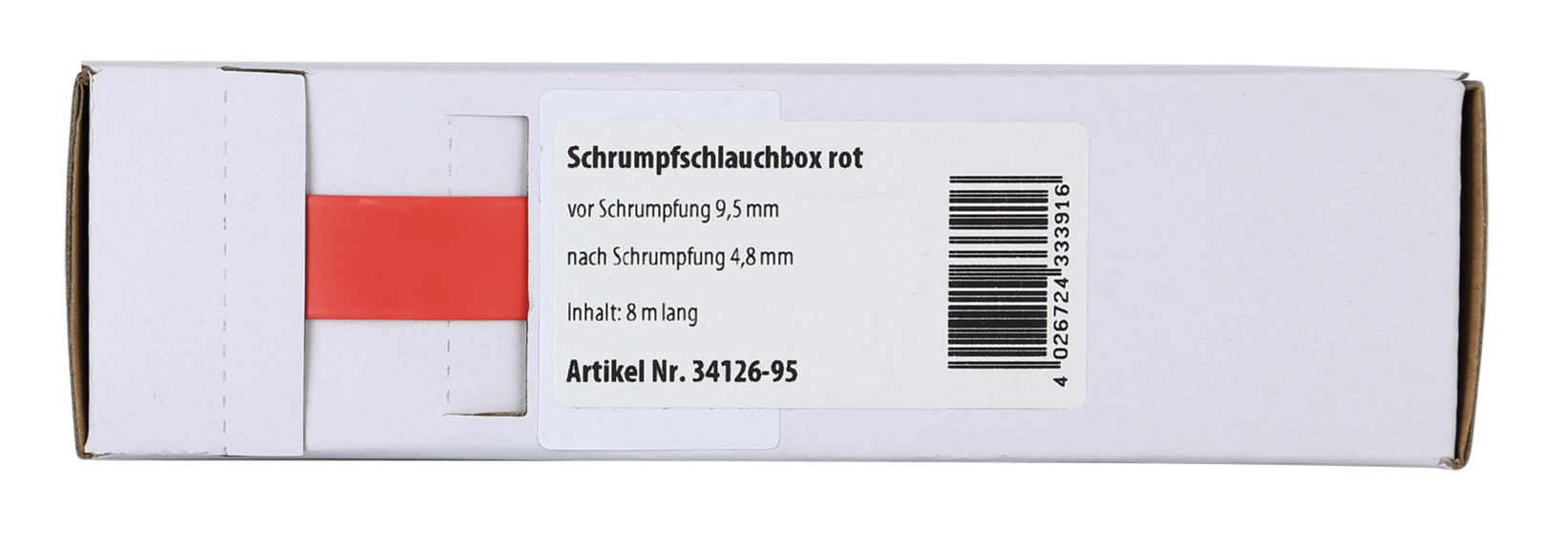

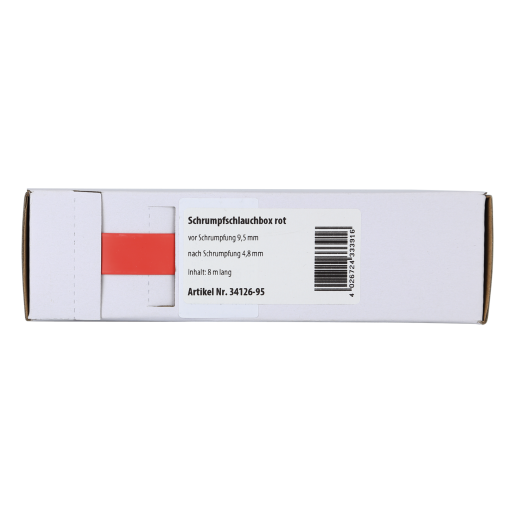

ACV Heat Shrink Tubing 9.5 mm / 8 m
Heat shrink tubing is elastic, thin-walled, polyolefin, and heat-shrinkable tubing for versatile use. Low shrinkage temperature, excellent flexibility, and mechanical strength are its defining features. Additionally, the tubing is self-extinguishing. It can be used for reliable insulation of joints and components in electrical engineering, electronics, and the automotive industry, for protecting pipes from corrosion, providing mechanical protection and reinforcement of cable ends or joints, and bundling wires or cables during vehicle audio installation.Main features
- Heat shrink tubing set.
- Inner diameter before heating: 9.5 mm.
- Inner diameter after heating: 4.8 mm.
- Wall thickness after heating: 0.6 mm.
- Package: 8 m.
- Color: red.
- Material: thin-walled cross-linked polyolefin.
- Operating temperature: -55 °C to +125 °C.
- Shrink ratio: 2:1.
- Standard: UL224 VW-1 125 °C 600 V.
- Approval: UL, CSA.
- Tensile strength: ASTM D 2671 (10.4 MPa).
- Elongation: ASTM D 2671 (200%).
- Tensile strength after thermal aging: UL 224 158 °C x 168 hrs (>= 7.3).
- Thermal resistance: UL 224 250 °C x 4 hrs.
- Elongation after aging: UL 224 158 °C x 168 hrs (>=100%).
- Electrical strength: IEC 243 (>= 15kV/mm).
- Volume resistivity: IEC 93 (>= 1x10^14 Ohm.cm).
- Copper stability: UL 224 158 °C x 168 hrs.
- Copper corrosion: UL 224 158 °C x 168 hrs.
| Catalog number | 34126-95 |
| Brand | ACV |
| Links | Official web presentation |
