ACV shrink tubing 4.8 mm / 12 m
Heat shrink tubing, diameter before shrinking 4.8 mm, length 12 m
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days

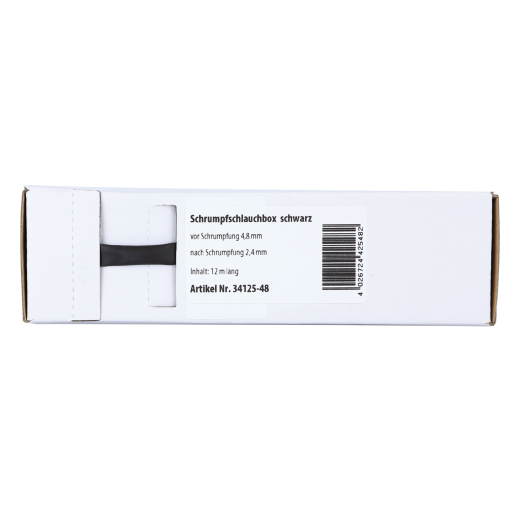

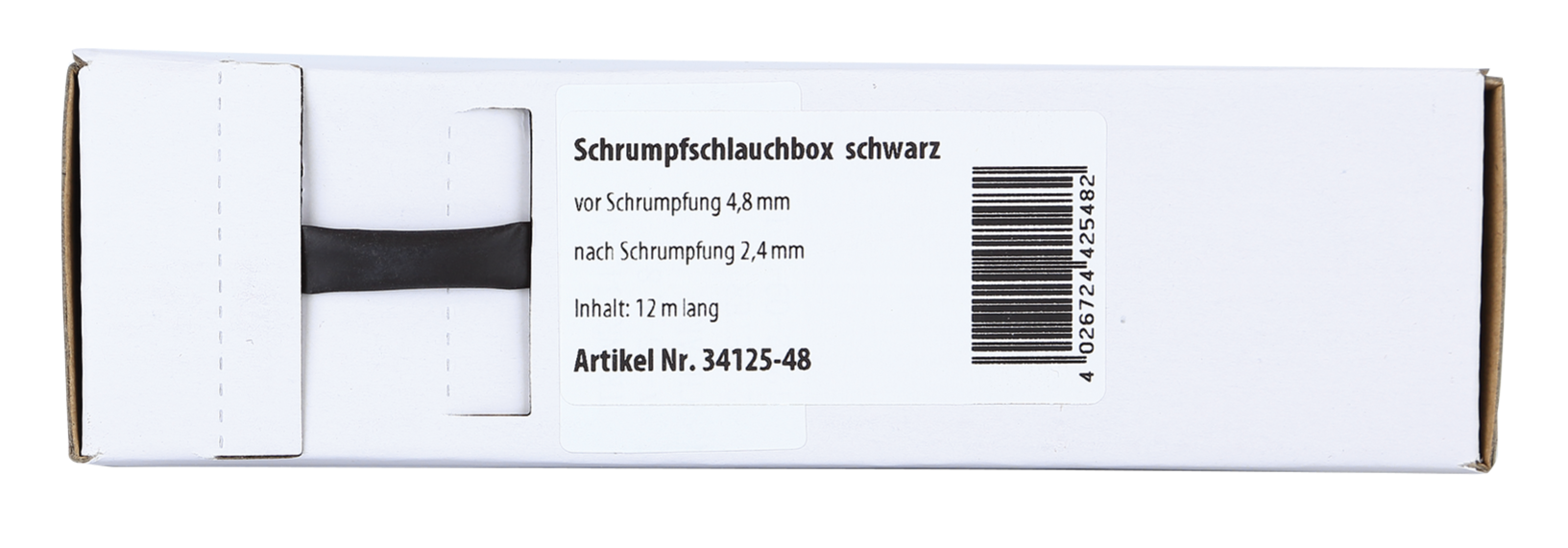

ACV Heat Shrink Tubing 4.8 mm / 12 m
Heat shrink tubings are elastic, thin-walled, polyolefin, and heat-shrinkable tubes for versatile use. Low shrinkage temperature, excellent flexibility, and mechanical strength are their defining features. Additionally, the tubings are self-extinguishing. They can be used for reliable insulation of joints and components in electrical engineering, electronics, and the automotive industry, for protecting pipes from corrosion, as mechanical protection, and for reinforcing the ends or junctions of electrical wires and bundling wires or cables during vehicle sound system installation.Main Features
- Heat shrink tubing set.
- Inner diameter before heating: 4.8 mm.
- Inner diameter after heating: 2.4 mm.
- Wall thickness after heating: 0.5 mm.
- Package: 12 m.
- Color: black.
- Material: thin-walled cross-linked polyolefin.
- Operating temperature: -55 °C to +125 °C.
- Shrink ratio: 2:1.
- Standard: UL224 VW-1 125 °C 600 V.
- Approvals: UL, CSA.
- Tensile strength: ASTM D 2671 (10.4 MPa).
- Elongation: ASTM D 2671 (200%).
- Tensile strength after heat aging: UL 224 158 °C x 168 Std. (>= 7.3).
- Heat resistance: UL 224 250 °C x 4 hours.
- Elongation after aging: UL 224 158°C x 168 hours (>=100%).
- Dielectric strength: IEC 243 (>= 15kV/mm).
- Volume resistivity: IEC 93 (>= 1x1014 Ohm.cm).
- Copper resistance: UL 224 158°C x 168 hours.
- Copper corrosion: UL 224 158°C x 168 hours.
| Catalog number | 34125-48 |
| Brand | ACV |
| Links | Official web presentation |
