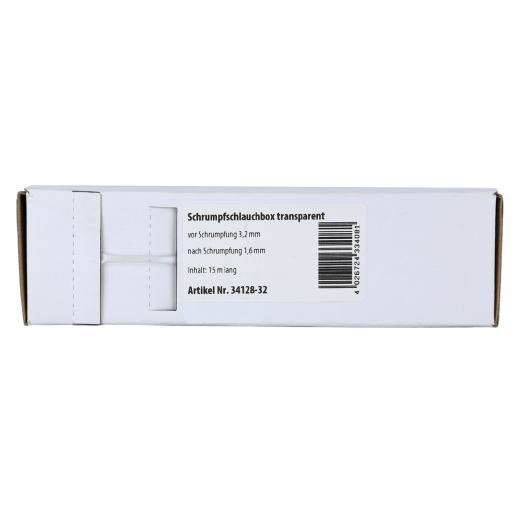

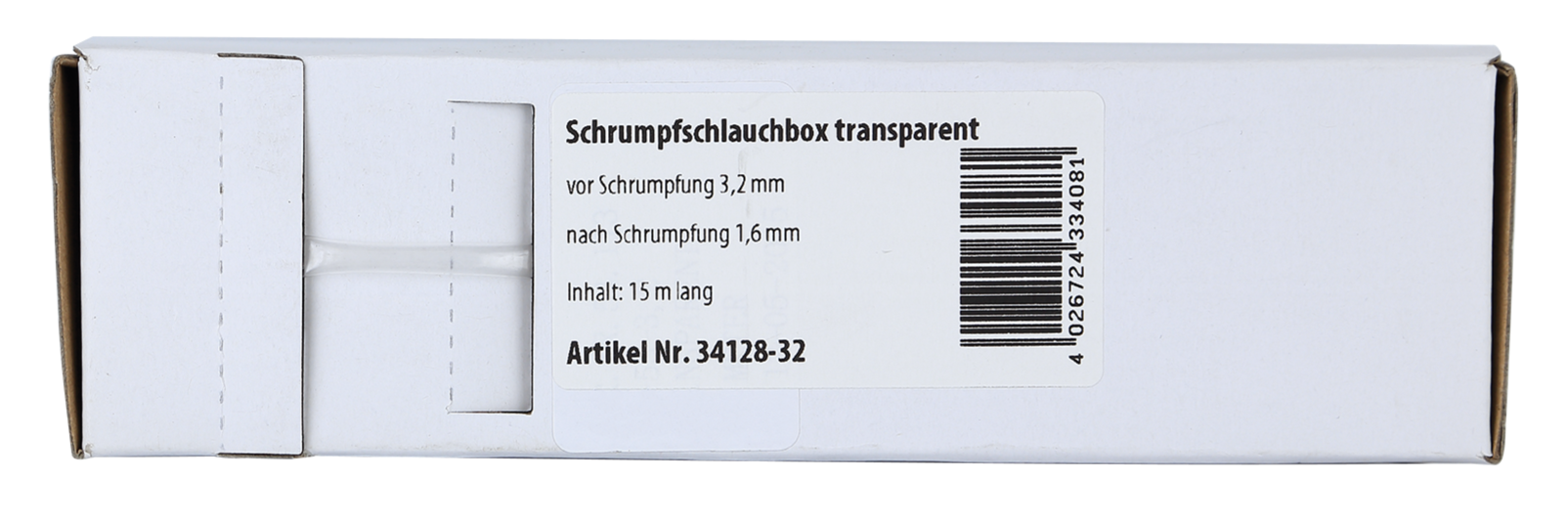

ACV shrink tubing 3.2 mm / 15 m
Heat shrink tubing, diameter before shrinking 3.2 mm, length 15 m
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days
ACV Heat Shrink Tubing 3.2 mm / 15 m
Heat shrink tubes are elastic, thin-walled, polyolefin, heat-shrinkable tubes for versatile use. Low shrink temperature, excellent flexibility, and mechanical strength are their defining features. Additionally, these tubes are self-extinguishing. They can be used for reliable insulation of joints and components in electrical engineering, electronics, and the automotive industry, for protecting pipes from corrosion, as mechanical protection, and reinforcement of endings or joints of electrical conductors, as well as for bundling wires or cables during vehicle audio installation.Main features
- Heat shrink tubing set.
- Inner diameter before heating: 3.2 mm.
- Inner diameter after heating: 1.6 mm.
- Wall thickness after heating: 0.4 mm.
- Packaging: 15 m.
- Color: White.
- Material: Thin-walled cross-linked polyolefin.
- Operating temperature: -55 °C to +125 °C.
- Shrink ratio: 2:1.
- Standard: UL224 VW-1 125 °C 600 V.
- Approval: UL, CSA.
- Tensile strength: ASTM D 2671 (10.4 MPa).
- Elongation: ASTM D 2671 (200%).
- Tensile strength after heat aging: UL 224 158 °C x 168 hrs (>= 7.3).
- Thermal endurance: UL 224 250 °C x 4 hrs.
- Elongation after aging: UL 224 158°C x 168 hrs (>=100%).
- Dielectric strength: IEC 243 (>= 15kV/mm).
- Volume resistivity: IEC 93 (>= 1x10^14 Ohm.cm).
- Copper resistance: UL 224 158°C x 168 hrs.
- Copper corrosion: UL 224 158°C x 168 hrs.
| Catalog number | 34128-32 |
| Brand | ACV |
| Links | Official web presentation |
