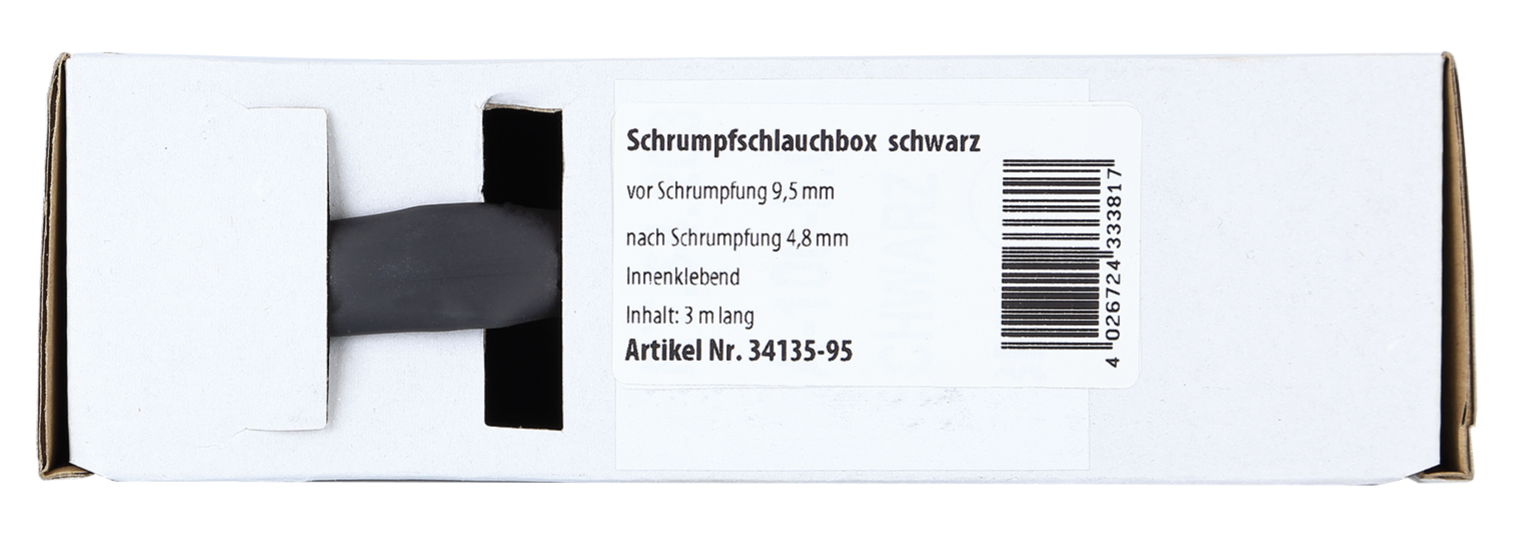

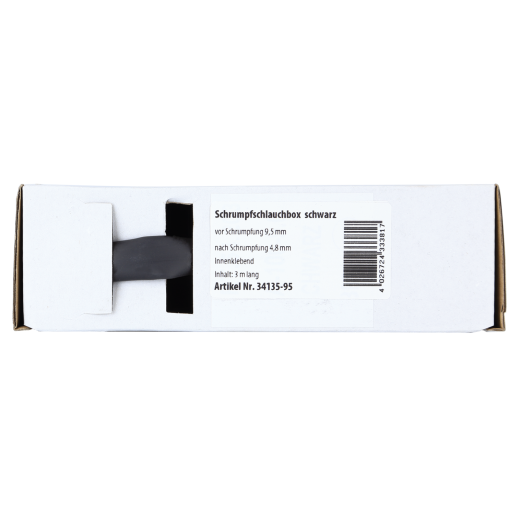

ACV heat shrink tubing with adhesive 9.5 mm / 3 m
shrink tubing with adhesive, diameter before shrinking 9.5 mm, length 3 m
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days
ACV Heat Shrink Tubing with Adhesive 9.5 mm / 3 m
Heat shrink tubing is flexible, thin-walled, polyolefin, and heat-shrinkable tubing for versatile use. Low shrinkage temperature, excellent flexibility, and mechanical strength are the main features. The tubing is also self-extinguishing. It can be used for reliable insulation of joints and components in electrical engineering, electronics, and the automotive industry, to protect pipes from corrosion, as mechanical protection and reinforcement of terminations or joints of electrical conductors, and for bundling wires or cables during vehicle sound system installation.Main features
- Set of heat shrink tubing with adhesive.
- Inner diameter before heating: 9.5 mm.
- Inner diameter after heating: 3.2 mm.
- Wall thickness after heating: 1.45 mm.
- Adhesive thickness: 0.5 mm.
- Packaging: 3 m.
- Color: black.
- Material: dual-wall polyolefin tube with adhesive.
- Operating temperature: -45 °C to +125 °C.
- Shrink ratio: 3:1.
- Standard: UL224 VW-1 125 °C 600 V.
- Approval: UL, CSA.
- Tensile strength: ASTM D 2671 (10.4 MPa).
- Elongation: ASTM D 2671 (300%).
- Tensile strength after heat aging: UL 224 158 °C x 168 Std. (>= 7.3).
- Heat resistance: UL 224 250 °C x 4 hours.
- Elongation after aging: UL 224 158°C x 168 hours (>=100%).
- Dielectric strength: IEC 243 (>= 15kV/mm).
- Volume resistivity: IEC 93 (>= 1x10/14 Ohm.cm).
- Copper resistance: UL 224 158°C x 168 hours.
- Copper corrosion: UL 224 158°C x 168 hours.
| Catalog number | 34135-95 |
| Brand | ACV |
| Links | Official web presentation |
