ACV heat shrink tubing with adhesive 6.4 mm / 3 m
Heat shrink tubing with adhesive, diameter before shrinking 6.4 mm, length 3 m
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days

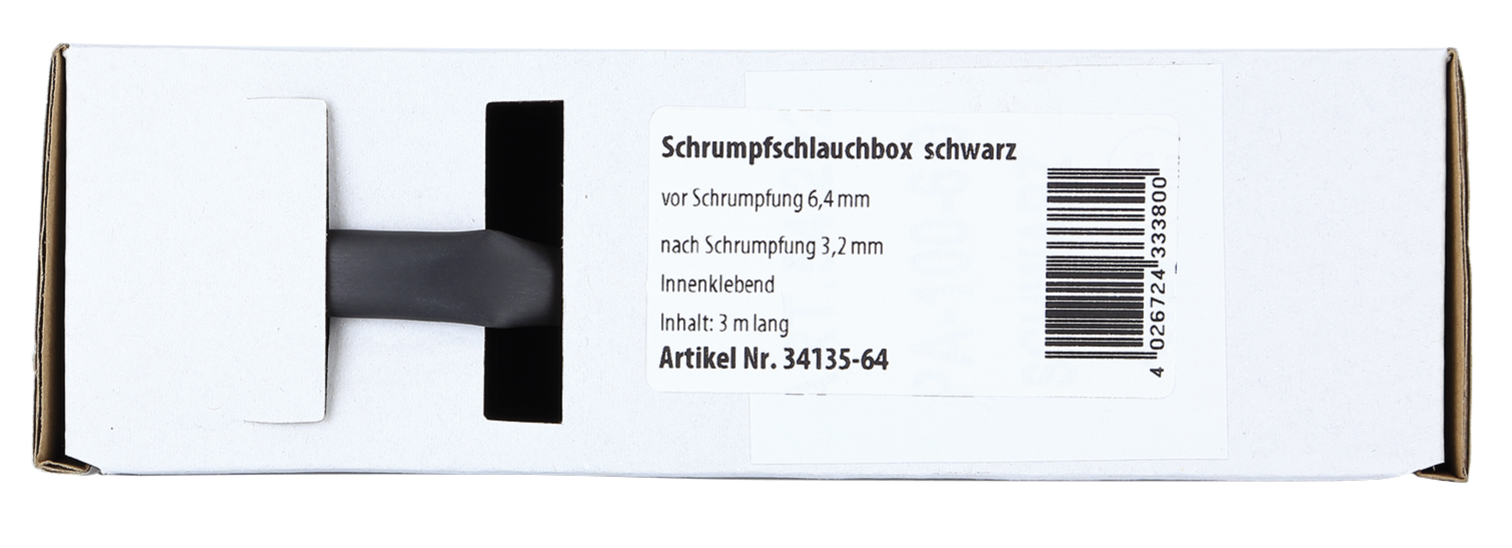

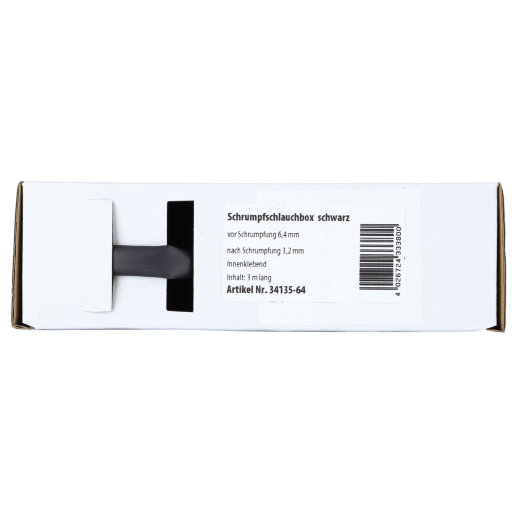

ACV Heat Shrink Tubing with Adhesive 6.4 mm / 3 m
Heat shrink tubing is elastic, thin-walled, polyolefin, and heat-shrinkable tubes for versatile use. They are defined by their low shrink temperature, excellent flexibility, and mechanical strength. The tubing is also self-extinguishing. It can be used for reliable insulation of joints and components in electrical engineering, electronics, and the automotive industry, to protect tubes from corrosion, as mechanical protection and reinforcement of electrical wire ends or joints, and for bundling wires or cables during vehicle sound system installation.Main features
- Set of heat shrink tubing with adhesive.
- Inner diameter before heating: 6.4 mm.
- Inner diameter after heating: 2.2 mm.
- Wall thickness after heating: 1.2 mm.
- Adhesive thickness: 0.45 mm.
- Package: 3 m.
- Color: black.
- Material: dual-wall polyolefin tube with adhesive.
- Operating temperature: -45 °C to +125 °C.
- Shrink ratio: 3:1.
- Standard: UL224 VW-1 125 °C 600 V.
- Approval: UL, CSA.
- Tensile strength: ASTM D 2671 (10.4 MPa).
- Elongation: ASTM D 2671 (300%).
- Tensile strength after heat aging: UL 224 158 °C x 168 Std. (>= 7.3).
- Heat resistance: UL 224 250 °C x 4 hrs.
- Elongation after aging: UL 224 158°C x 168 hrs. (>=100%).
- Dielectric strength: IEC 243 (>= 15kV/mm).
- Volume resistivity: IEC 93 (>= 1x1014 Ohm.cm).
- Copper resistance: UL 224 158°C x 168 hrs.
- Copper corrosion: UL 224 158°C x 168 hrs.
| Catalog number | 34135-64 |
| Brand | ACV |
