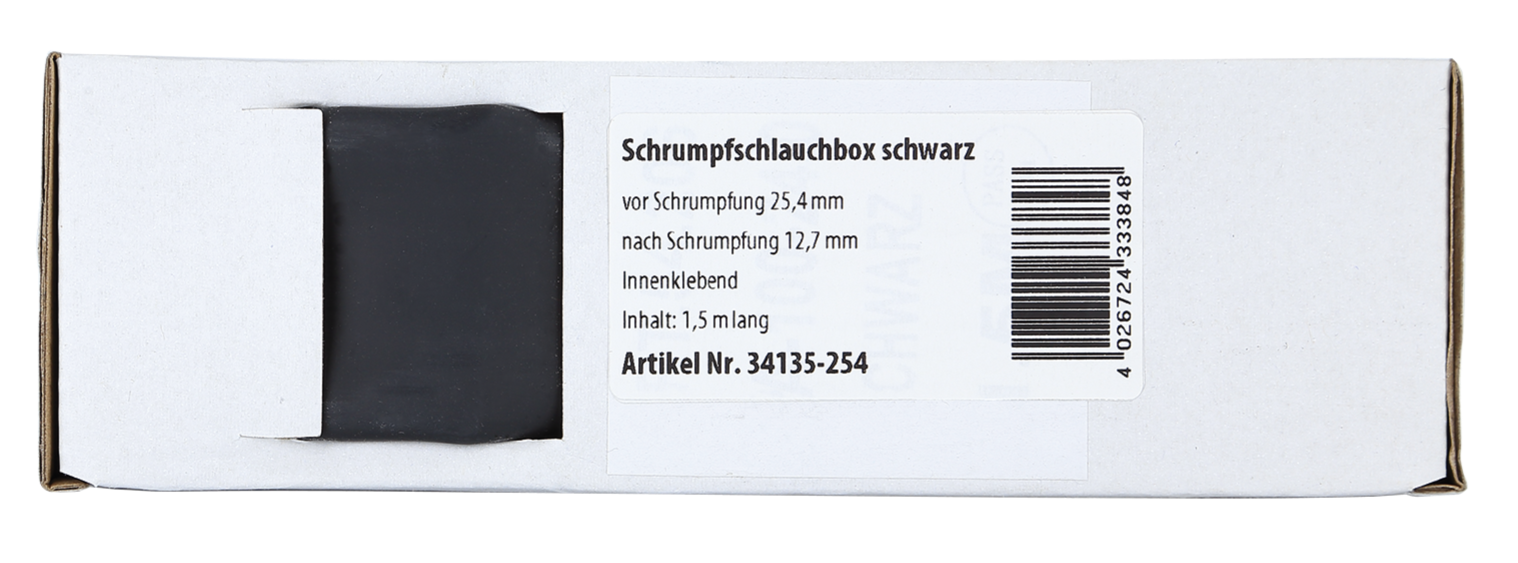

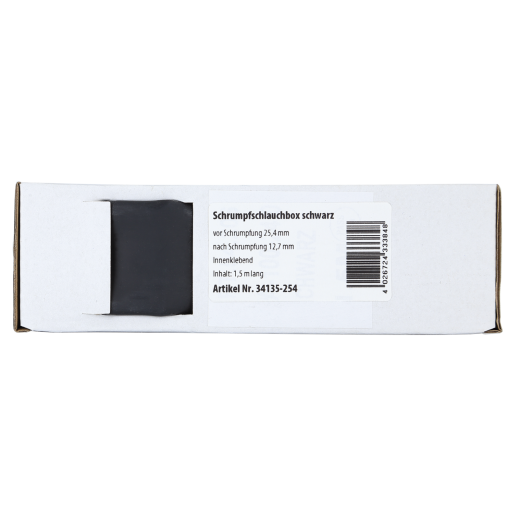

ACV Heat Shrink Tubing with Adhesive 25.4 mm / 1.5 m
Heat shrink tubing is elastic, thin-walled, polyolefin, and heat-shrinkable tubing for versatile use. Low shrink temperature, excellent flexibility, and mechanical strength are its defining features. The tubing is also self-extinguishing. It can be used for reliable insulation of joints and components in the electrical, electronic, and automotive industries, for protecting pipes from corrosion, as mechanical protection and reinforcement of endings or joints of electrical conductors, and for bundling wires or cables during vehicle sound system installation.Main features
- Heat shrink tubing set with adhesive.
- Internal diameter before heating: 25.4 mm.
- Internal diameter after heating: 8.5 mm.
- Wall thickness after heating: 2.1 mm.
- Adhesive thickness: 0.55 mm.
- Length: 1.5 m.
- Color: Black.
- Material: Dual-wall polyolefin tubing with adhesive.
- Operating temperature: -45 °C to +125 °C.
- Shrink ratio: 3:1.
- Standard: UL224 VW-1 125 °C 600 V.
- Approval: UL, CSA.
- Tensile strength: ASTM D 2671 (10.4 MPa).
- Elongation: ASTM D 2671 (300%).
- Tensile strength after thermal aging: UL 224 158 °C x 168 hours (>= 7.3).
- Heat resistance: UL 224 250 °C x 4 hours.
- Elongation after aging: UL 224 158°C x 168 hours (>= 100%).
- Electrical strength: IEC 243 (>= 15kV/mm).
- Volume resistivity: IEC 93 (>= 1x10^14 Ohm.cm).
- Copper resistance: UL 224 158°C x 168 hours.
- Copper corrosion: UL 224 158°C x 168 hours.
| Catalog number | 34135-254 |
| Brand | ACV |
| Links | Official web presentation |
