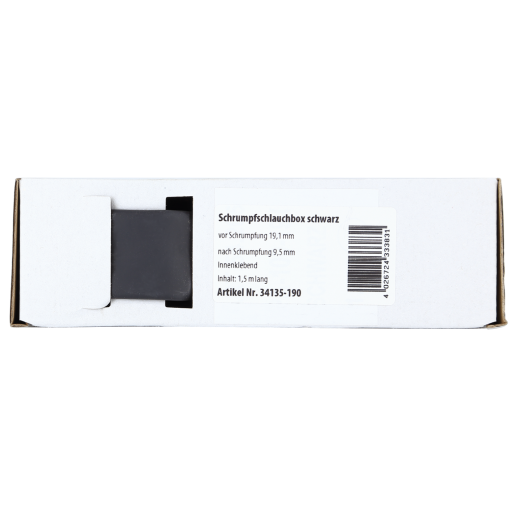

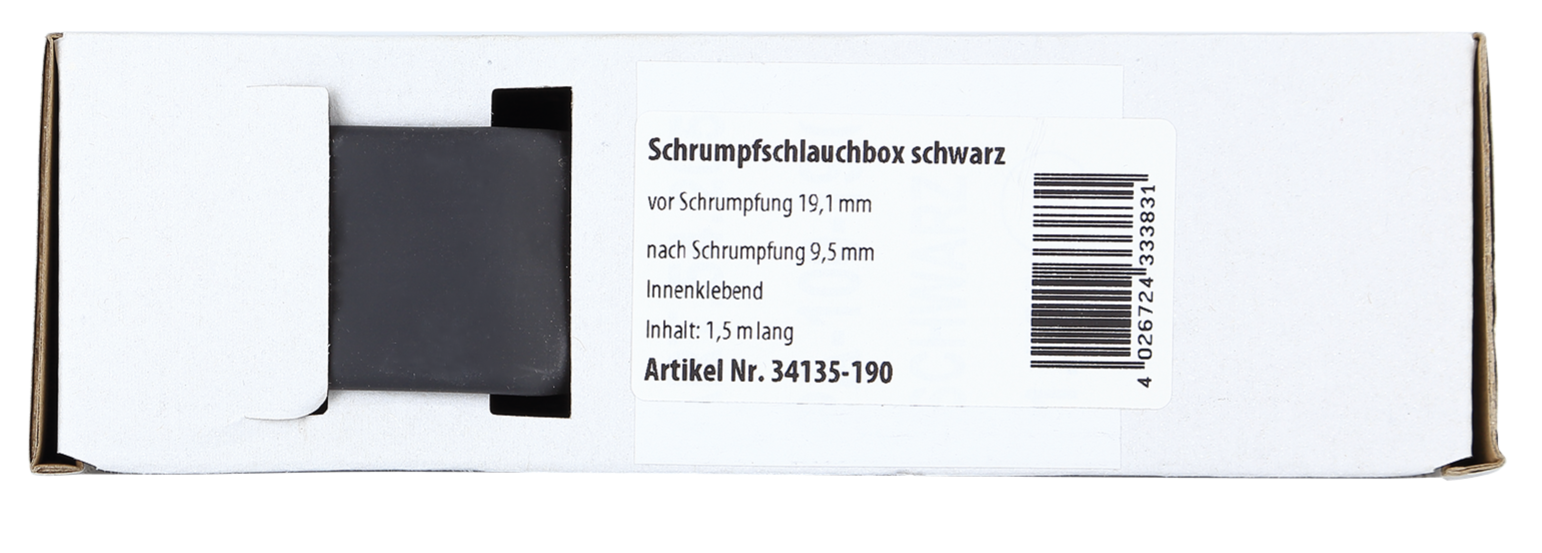

ACV Heat Shrink Tubing with Adhesive 19.1 mm / 1.5 m
Heat shrink tubing is an elastic, thin-walled, polyolefin, heat-shrinkable tube for versatile use. With a low shrinkage temperature, excellent flexibility, and mechanical strength, these are the main features that define it. Additionally, the tubing is self-extinguishing. It can be used for reliable insulation of joints and components in electronics, electrical and automotive industries, protection of pipes against corrosion, mechanical protection and reinforcement of wire ends or joints, and bundling of wires or cables during vehicle sound system installation.Main features
- Set of heat shrink tubing with adhesive.
- Inner diameter before heating: 19.1 mm.
- Inner diameter after heating: 6.3 mm.
- Wall thickness after heating: 2 mm.
- Adhesive thickness: 0.55 mm.
- Packaging: 1.5 m.
- Color: black.
- Material: dual-wall polyolefin tube with adhesive.
- Operating temperature: -45 °C to +125 °C.
- Shrink ratio: 3:1.
- Standard: UL224 VW-1 125 °C 600 V.
- Approval: UL, CSA.
- Tensile strength: ASTM D 2671 (10.4 MPa).
- Elongation: ASTM D 2671 (300%).
- Tensile strength after thermal aging: UL 224 158 °C x 168 Std. (>= 7.3).
- Thermal resistance: ul 224 250 °C x 4 hrs.
- Elongation after aging: ul 224 158°C x 168 hrs. (>=100%).
- Electrical strength: iec 243 (>= 15kV/mm).
- Volume resistivity: iec 93 (>= 1x10/14 Ohm.cm).
- Copper resistance: ul 224 158°C x 168 hrs.
- Copper corrosion: ul 224 158°C x 168 hrs.
| Catalog number | 34135-190 |
| Brand | ACV |
| Links | Official web presentation |
