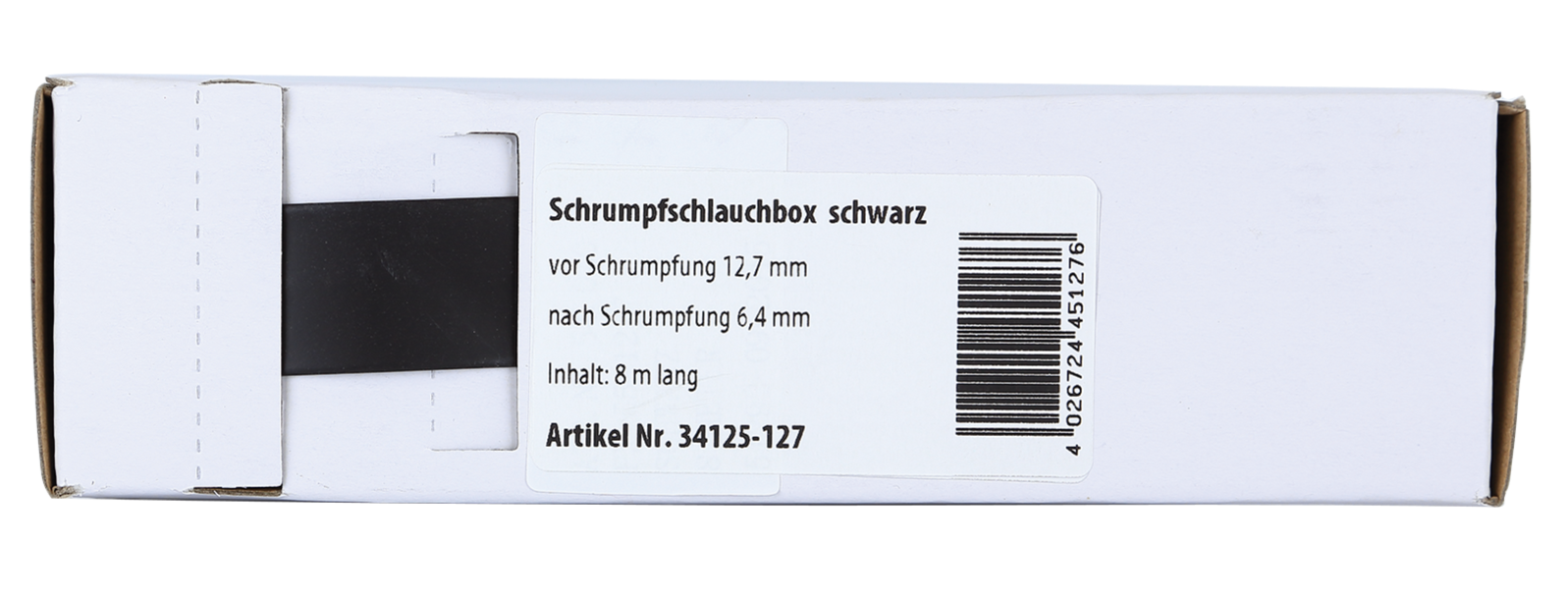

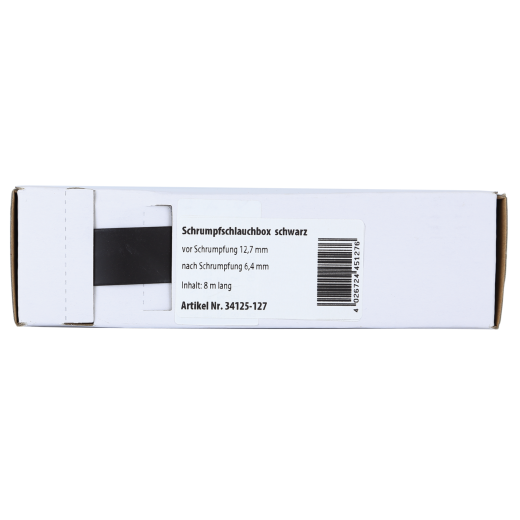

ACV heat shrink tubing 12.7 mm / 8 m
Heat shrink tubing, diameter before shrinking 12.7 mm, length 8 m
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days
ACV heat-shrink tubing 12.7 mm / 8 m
Heat-shrink tubing is elastic, thin-walled, polyolefin, heat-shrinkable tubing for versatile use. Low shrink temperature, excellent flexibility, and mechanical strength are its main defining characteristics. The tubing is also self-extinguishing. It can be used for reliable insulation of joints and components in electrical engineering, electronics, and the automotive industry, to protect pipes from corrosion, as mechanical protection and reinforcement of electrical conductor ends or joints, and for bundling conductors or cables when installing vehicle sound systems.Main characteristics
- Set of heat-shrinkable tubing.
- Inner thickness before heating: 12.7 mm.
- Inner thickness after heating: 6.4 mm.
- Wall thickness after heating: 0.65 mm.
- Packaging: 8 m.
- Color: black.
- Material: thin-walled cross-linked polyolefin.
- Operating temperature: -55 °C to +125 °C.
- Shrink ratio: 2:1.
- Standard: UL224 VW-1 125 °C 600 V.
- Approval: UL, CSA.
- Tensile strength: ASTM D 2671 (10.4 MPa).
- Elongation: ASTM D 2671 (200%).
- Tensile strength after heat aging: UL 224 158 °C x 168 Std. (>= 7.3).
- Heat resistance: UL 224 250 °C x 4 hours.
- Elongation after aging: UL 224 158 °C x 168 hours (>= 100%).
- Electrical strength: IEC 243 (>= 15 kV/mm).
- Volume resistance: IEC 93 (>= 1x10/14 Ohm.cm).
- Copper resistance: UL 224 158°C x 168 hours.
- Copper corrosion: UL 224 158°C x 168 hours.
| Catalog number | 34125-127 |
| Brand | ACV |
| Links | Official web presentation |
