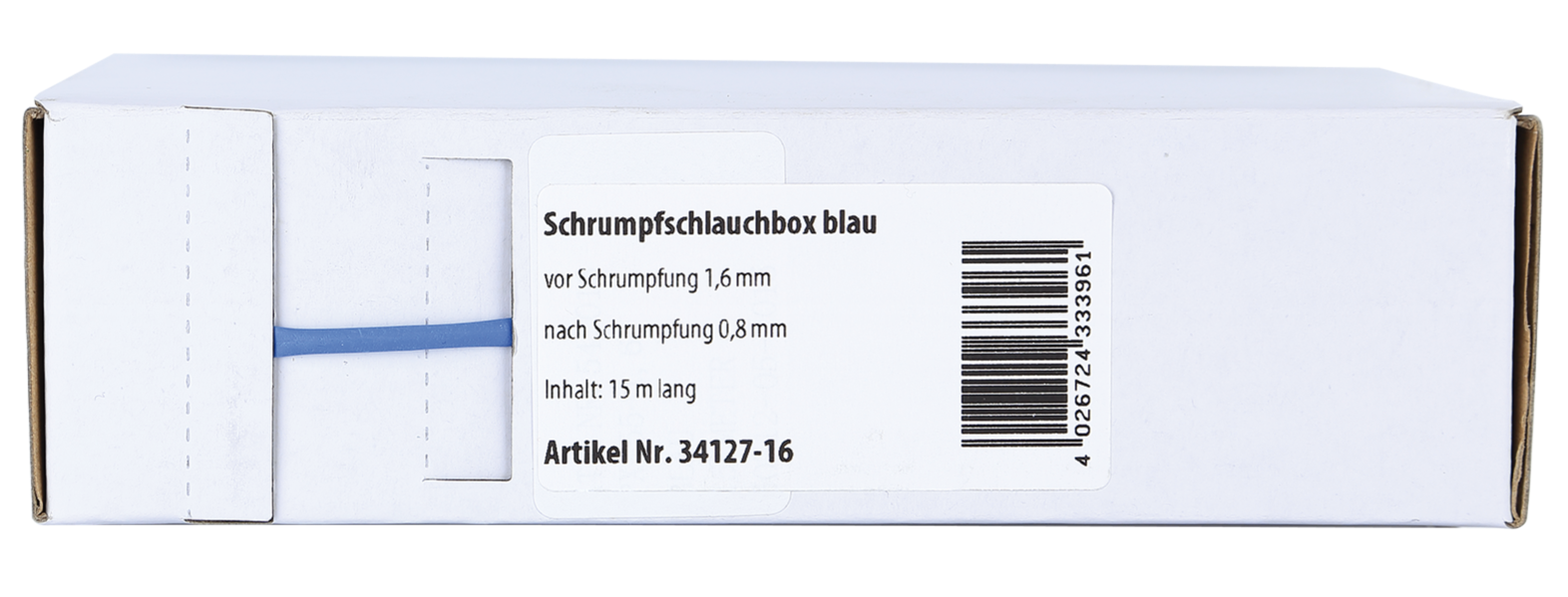

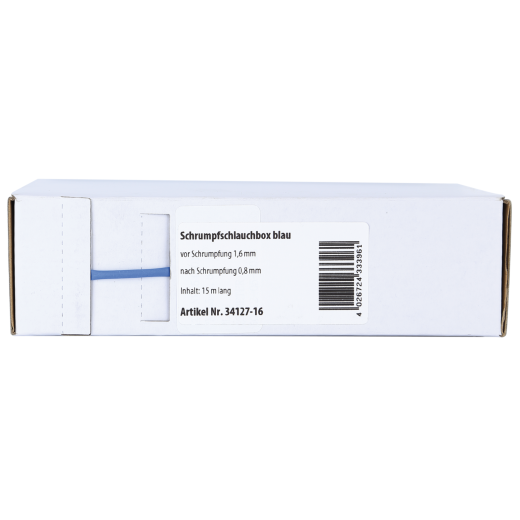

ACV heat shrink tubing 1.6 mm / 15 m
Heat shrink tubing, diameter before shrinking 1.6 mm, length 15 m
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days
ACV Heat Shrink Tubing 1.6 mm / 15 m
Heat shrink tubing is elastic, thin-walled, polyolefin, and heat-shrinkable tubes for versatile use. Low shrink temperature, excellent flexibility, and mechanical strength are the main defining features. Additionally, the tubing is self-extinguishing. It can be used for reliable insulation of joints and components in electrical engineering, electronics, and the automotive industry, for protecting pipes from corrosion, as mechanical protection and reinforcement of electrical wire ends or joints, and for bundling wires or cables during vehicle audio installation.Main features
- Heat shrink tubing set.
- Inner diameter before heating: 1.6 mm.
- Inner diameter after heating: 0.8 mm.
- Wall thickness after heating: 0.32 mm.
- Packaging: 15 m.
- Color: blue.
- Material: thin-walled cross-linked polyolefin.
- Operating temperature: -55 °C to +125 °C.
- Shrink ratio: 2:1.
- Standard: UL224 VW-1 125 °C 600 V.
- Approvals: UL, CSA.
- Tensile strength: ASTM D 2671 (10.4 MPa).
- Elongation: ASTM D 2671 (200%).
- Tensile strength after thermal aging: UL 224 158 °C x 168 hours (>= 7.3).
- Heat resistance: UL 224 250 °C x 4 hours.
- Elongation after aging: UL 224 158°C x 168 hours (>=100%).
- Dielectric strength: IEC 243 (>= 15kV/mm).
- Volume resistivity: IEC 93 (>= 1x10/14 Ohm.cm).
- Copper resistance: UL 224 158°C x 168 hours.
- Copper corrosion: UL 224 158°C x 168 hours.
| Catalog number | 34127-16 |
| Brand | ACV |
| Links | Official web presentation |
