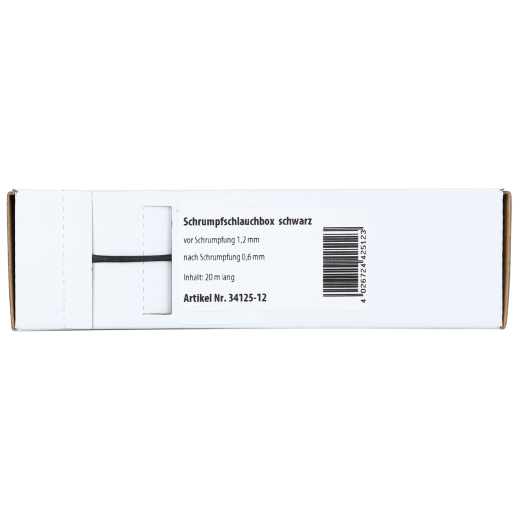

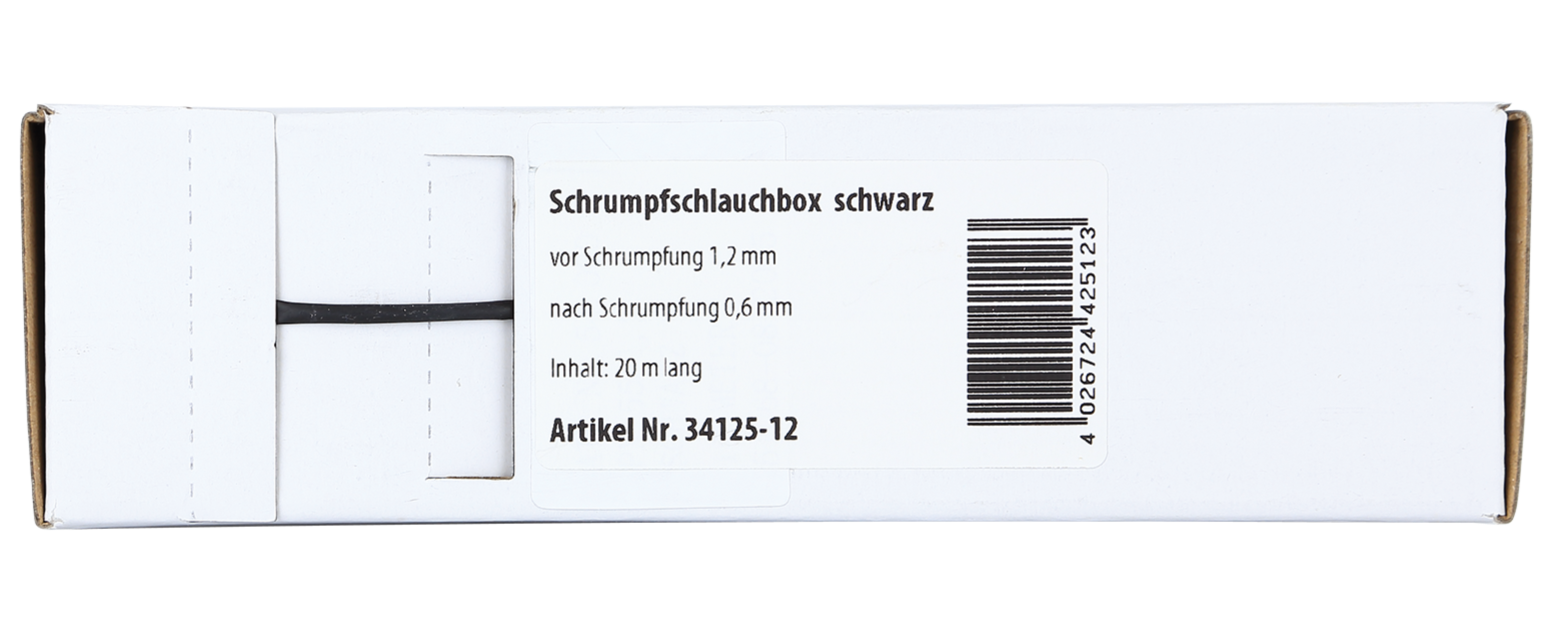

ACV heat shrink tubing 1.2 mm / 15 m
Heat-shrink tubing is elastic, thin-walled, polyolefin, heat-shrinkable tubing for versatile use. Low shrink temperature, excellent flexibility, and mechanical strength are its main defining characteristics. The tubing is also self-extinguishing. It can be used for reliable insulation of joints and components in electrical engineering, electronics, and the automotive industry, to protect pipes from corrosion, as mechanical protection and reinforcement of electrical conductor ends or joints, and for bundling conductors or cables when installing vehicle sound systems.Main characteristics
- Set of heat-shrinkable tubing.
- Internal thickness before heating: 1.2 mm.
- Internal thickness after heating: 0.6 mm.
- Wall thickness after heating: 0.3 mm.
- Packaging: 15 m.
- Color: black.
- Material: thin-walled cross-linked polyolefin.
- Operating temperature: -55 °C to +125 °C.
- Shrink ratio: 2:1.
- Standard: UL224 VW-1 125 °C 600 V.
- Approval: UL, CSA.
- Tensile strength: ASTM D 2671 (10.4 MPa).
- Elongation: ASTM D 2671 (200%).
- Tensile strength after heat aging: UL 224 158 °C x 168 Std. (>= 7.3).
- Heat resistance: UL 224 250 °C x 4 hours.
- Elongation after aging: UL 224 158 °C x 168 hours (>= 100%).
- Electrical strength: IEC 243 (>= 15 kV/mm).
- Volume resistance: IEC 93 (>= 1x10/14 Ohm.cm).
- Copper resistance: UL 224 158°C x 168 hours.
- Copper corrosion: UL 224 158°C x 168 hours.
| Catalog number | 34125-12 |
| Brand | ACV |
| Links | Official web presentation |
