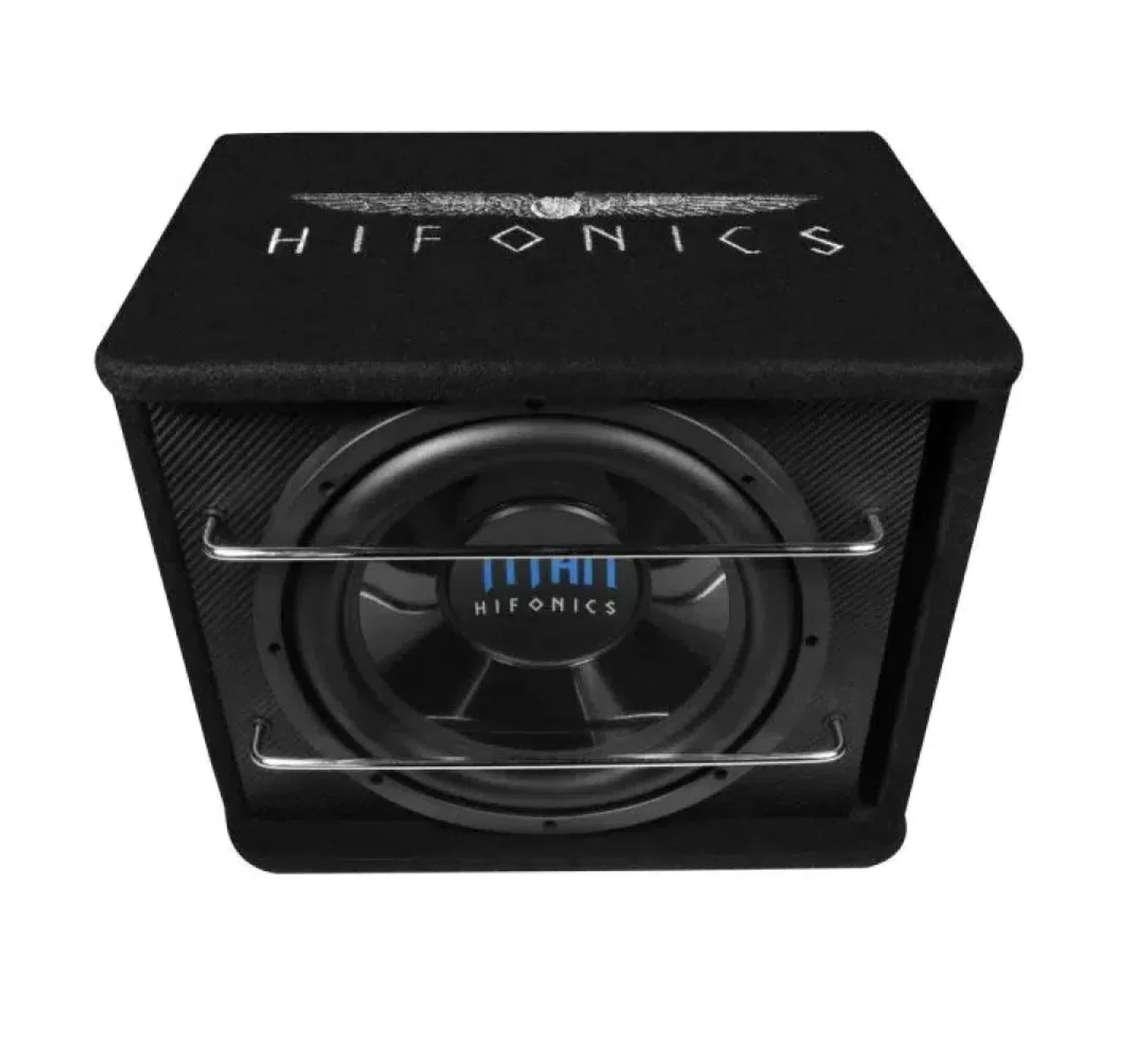

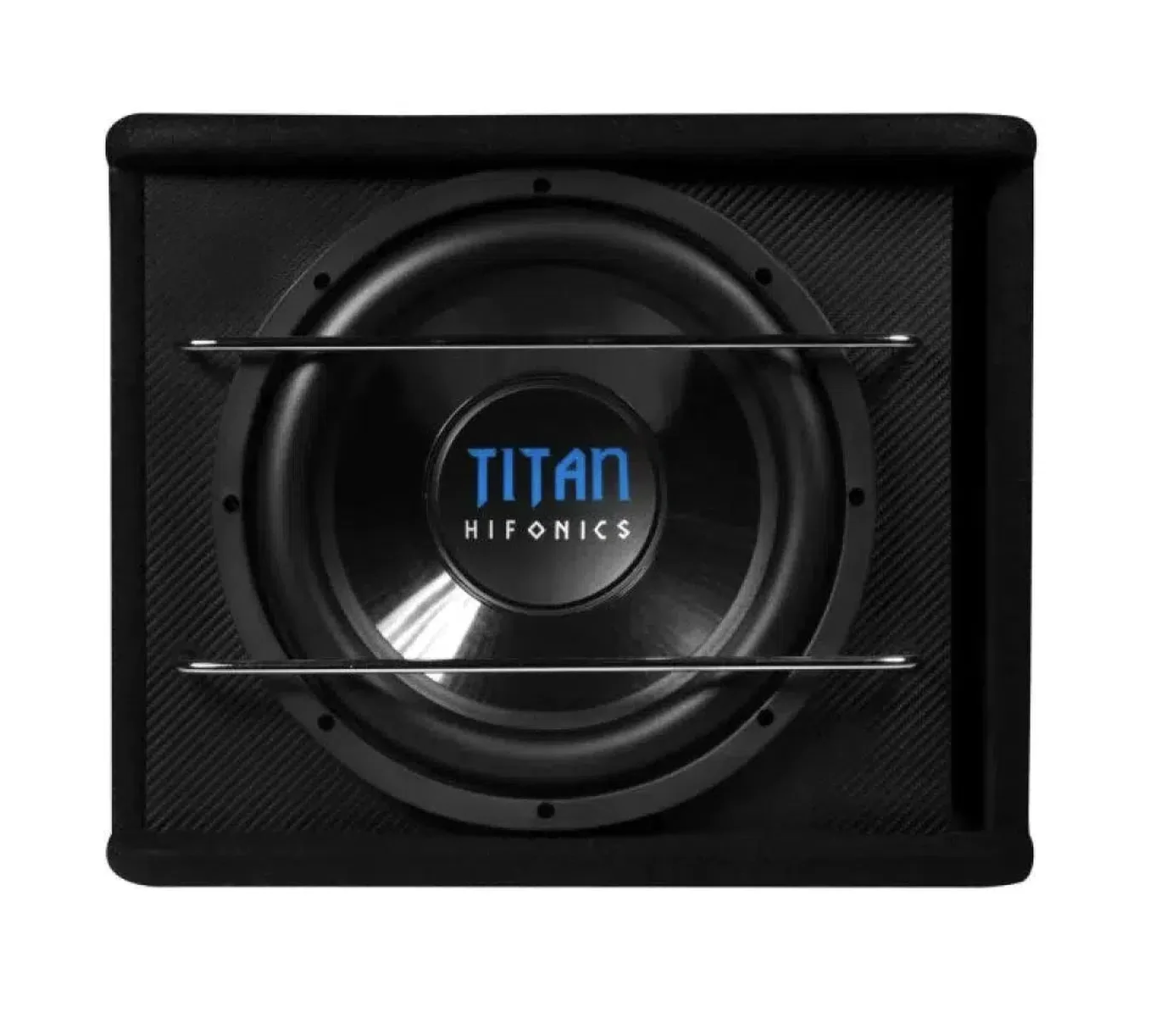

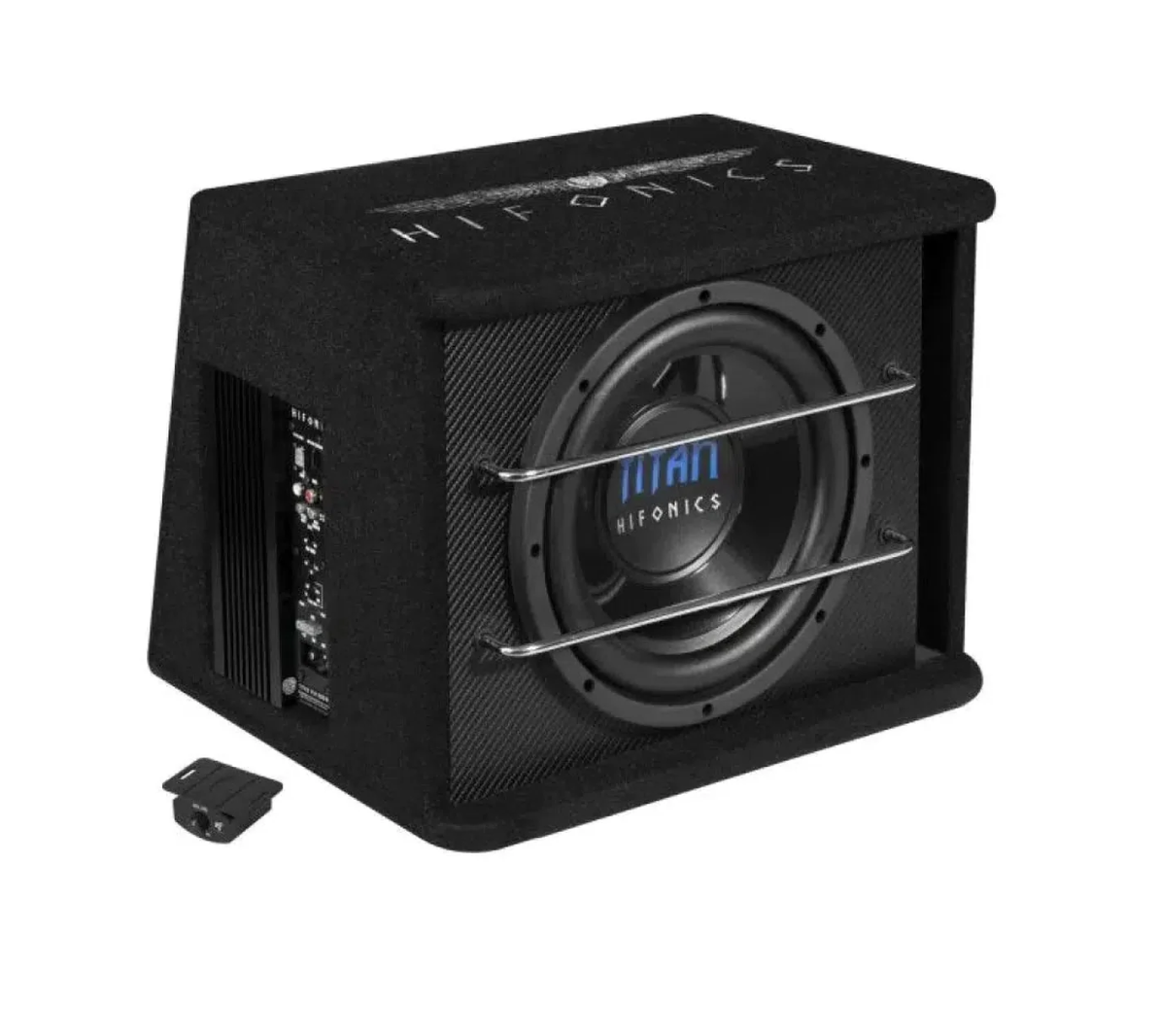

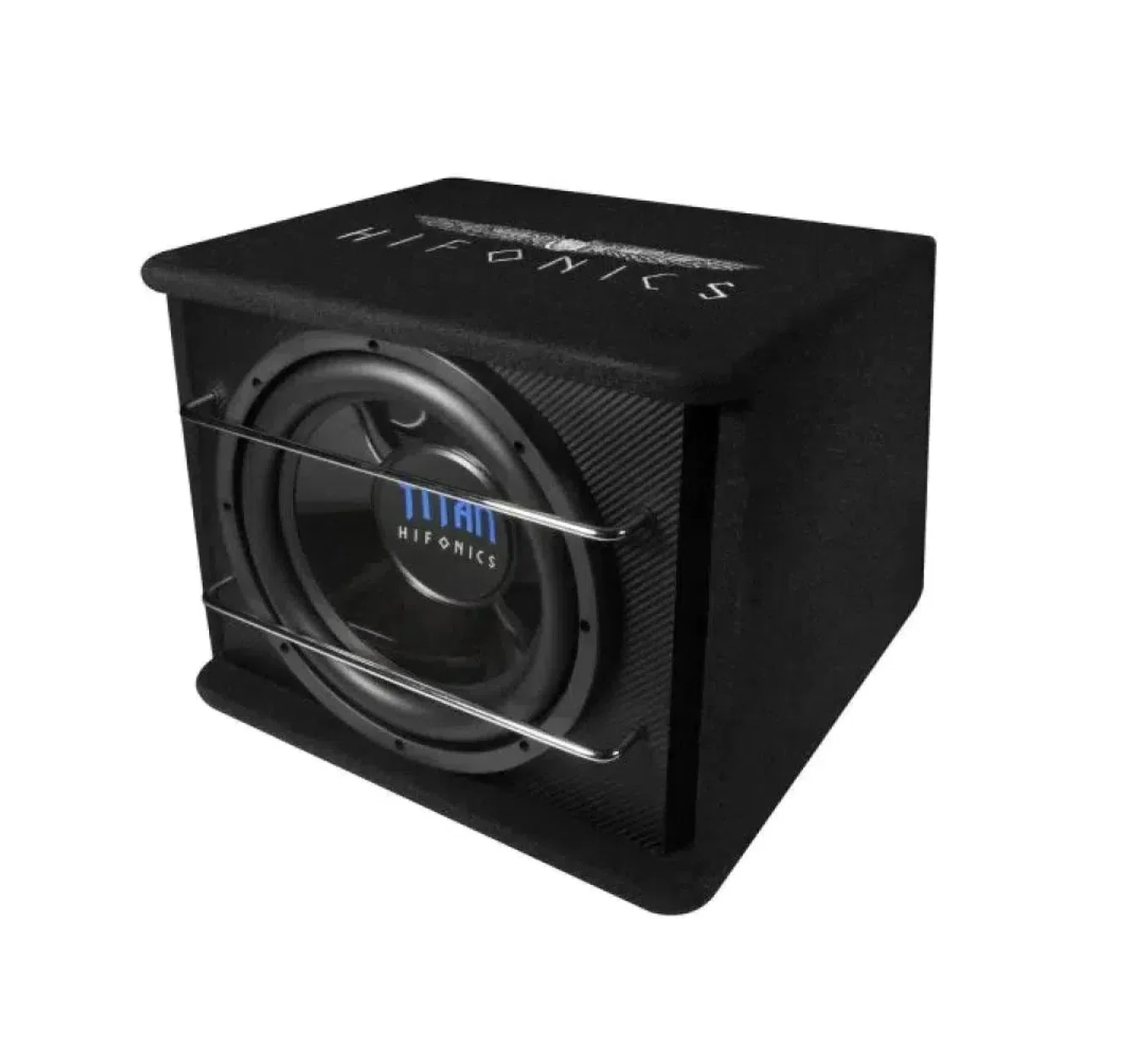

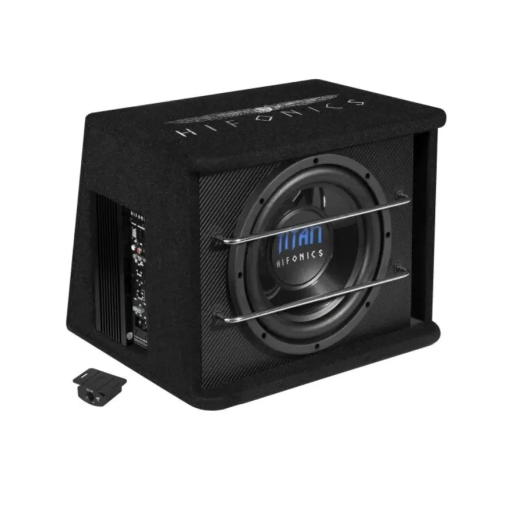

Active subwoofer in a box Hifonics TSA300R

Active Subwoofer in Box Hifonics TSA300R

Bass reflex models of the TITAN TS/TD series are also available as powerful active subwoofer systems. The solid enclosures with internal reinforcements, combined with an integrated and well-equipped Class D amplifier, deliver deep and powerful bass. Like the passive versions, the boxes feature chrome protective bars, a carbon-look foil front, and a quality logo.

Main Features

• 300mm (12") active bass reflex box.

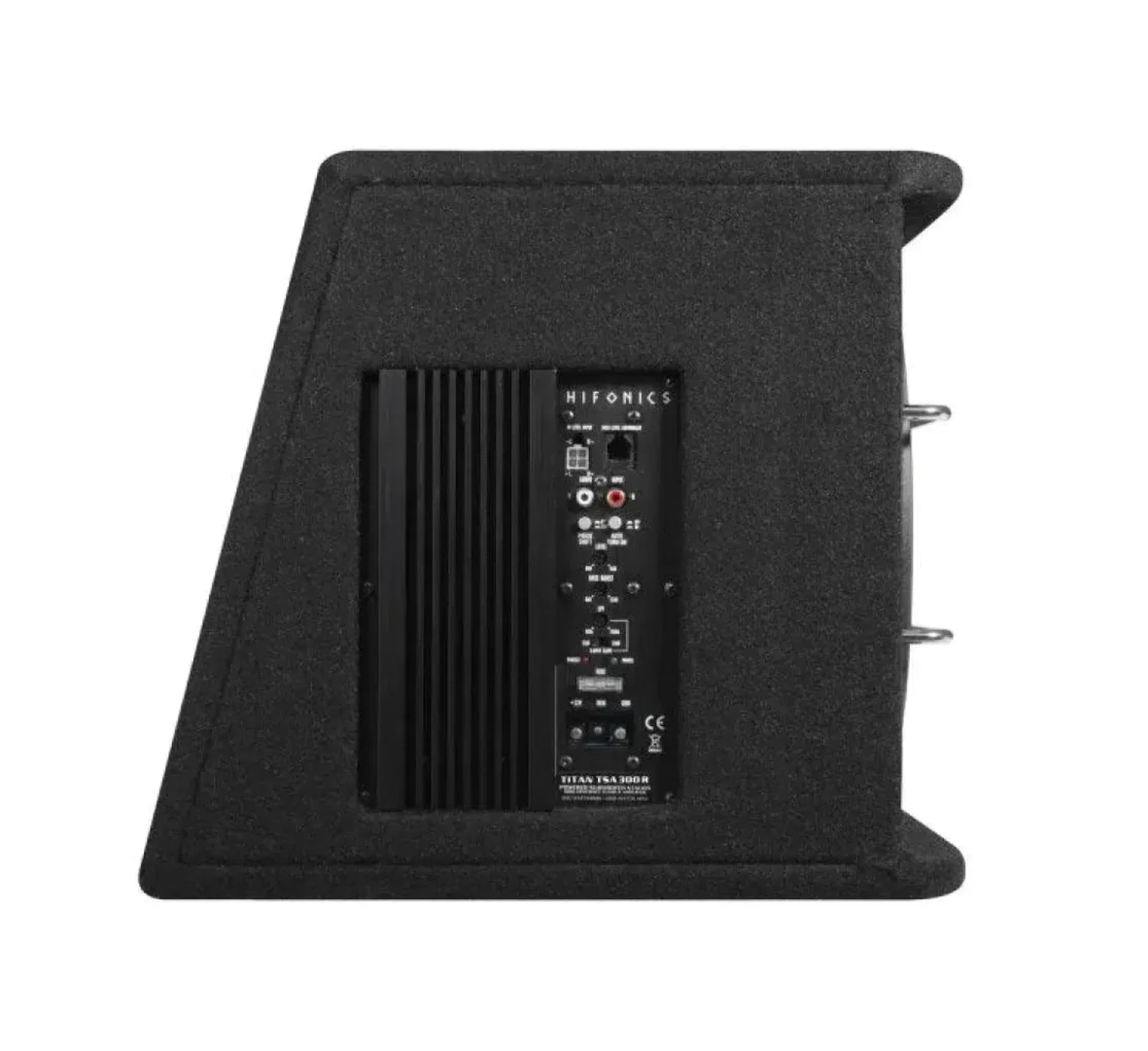

• Integrated Class D amplifier.
• Carbon-look front panel.
• Automatic switch-on via high-level inputs.
• RCA inputs.
• Chrome brackets.
• Phase 0°/180°.
• Bass Boost 0-12 dB.
• Fixed subsonic frequency 15 Hz.
• Remote bass level control.

About the Brand

Hifonics is among the global legends in car audio. Since its inception in the 1980s, it has set standards in automotive sound and is a strong player in the amplifier, speaker, and subwoofer segments. The brand is known for its uncompromising philosophy - combining top performance with precise craftsmanship and a distinctive design. Hifonics products appeal to all customers, from demanding audiophiles to enthusiasts who want to experience deep bass and maximum dynamics in their car. Hifonics amplifiers are renowned for their high stability, clear sound, and enormous power potential. Speakers and subwoofers also excel in precise craftsmanship and long lifespan even under extreme load. Hifonics continuously innovates its products. Modern technologies, such as hybrid buffer capacitors, extremely rigid carbon membranes, MICA composite membranes, or advanced cooling, push the boundaries of sound even further. In addition to top-notch amplifiers, you will find practical accessories in the portfolio, from remote bass controls to mounting accessories and designer protective grilles. If you are looking for a proven brand that combines a legendary name with modern technologies and top-notch sound, Hifonics is the right choice for your car. Treat yourself to exceptional performance that you can feel - with Hifonics, you'll always be a step ahead!

Catalog number	TSA300R
Brand	Hifonics
Links	Official web presentation
RMS power of the subwooferThe RMS power of an active subwoofer is the constant power that the active subwoofer can play over a long period of time. We recommend following this value. The RMS power of active subwoofers is taken as the RMS power of the integrated amplifier, which in most cases is slightly undersized, which guarantees protection against subwoofer burning.	300 W
Maximum subwoofer performancePeak performance or Max. power that an active subwoofer can play for a moment (approx. 0.5 s), for example when percussion instruments are struck in a recording. But it is not as important a parameter as the RMS power.	600 W
Energy class of the amplifierAmplifiers are divided into two basic classes: analog and digital . Analog amplifiers (A/B) have higher consumption requirements, but usually have a more natural sound. Digital amplifiers (D) have significantly lower consumption and higher efficiency, but the sound may not be as faithful as with classic analog amplifiers.	D
The diameter of the subwoofer usedThe diameter of the subwoofer that is installed in the active box.	300 mm (12\")
Low-pass filter (LPF)	50 - 150 Hz
High level inputThe high-level input on the active subwoofer enables connection directly to the speakers in the car without purchasing an external high/low converter. Use in the case of mounting an active subwoofer on the original car radio.	Yes
Automatic on and offThis function will facilitate your installation and solve the problem of finding a remote signal, which is sometimes a problem with original car radios. The active subwoofer with the Auto sense function can recognize that the equipment in the car is active and turn itself on. A useful and practical feature.	Yes
Bass boost functionBass boost or bass enhancement. With this function, the bass itself can be emphasized, at a high level of bass boost, the speakers and the subwoofer can distort a lot and the sound will be worse than better. We therefore recommend using the "bass boost" function wisely.	Yes
Phase rotation optionPhase shift is a linear electronic oscillator that produces a sinusoidal output. It consists of an inverting part of the amplifier such as a transistor. The feedback network "shifts" the phase at the output of the amplifier by 180 degrees to the oscillation frequency and gives positive feedback. The Phase shift filter produces a phase shift that increases with increasing frequency. This is usually used when the subwoofer sub-assembly is out with the magnet, or when two amplifiers are connected externally. Phase Shift is also used with active speaker wiring, where the time shift of the speakers is set. The point is that the subwoofer does not play the bass late, and for this reason better amplifiers offer this phase reversal option.	Yes
Cabling included in the packageSome active subwoofers have complete wiring included in the package. In the event that the package really includes complete wiring for connection, we mark the parameter as "yes". If the wiring is not included, it must be purchased.	No
Remote control included in the packageSome models of active subwoofers also have wired remote controls in the package, which on the one hand connect to the active box, and on the other hand you have a potentiometer that you can place anywhere in the cabin. A common place to place the remote control is under the steering wheel. The advantage is the regulation of power, and therefore volume, depending on driving conditions and the mood of the crew in the car.	Yes
Protective gridProtective grids or bars, as protection against mechanical damage to the subwoofer.	Yes
Loudspeaker type	Bass reflex
What is the baffle made of?Active subwoofers can be made of MDF board, hardened plastic, sheet metal, aluminum or a combination of different materials.	MDF board
Active subwoofer dimensions	44 x 36 x 40/31 cm
