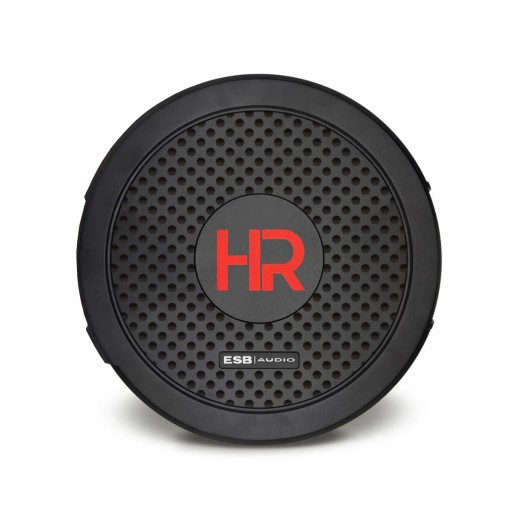

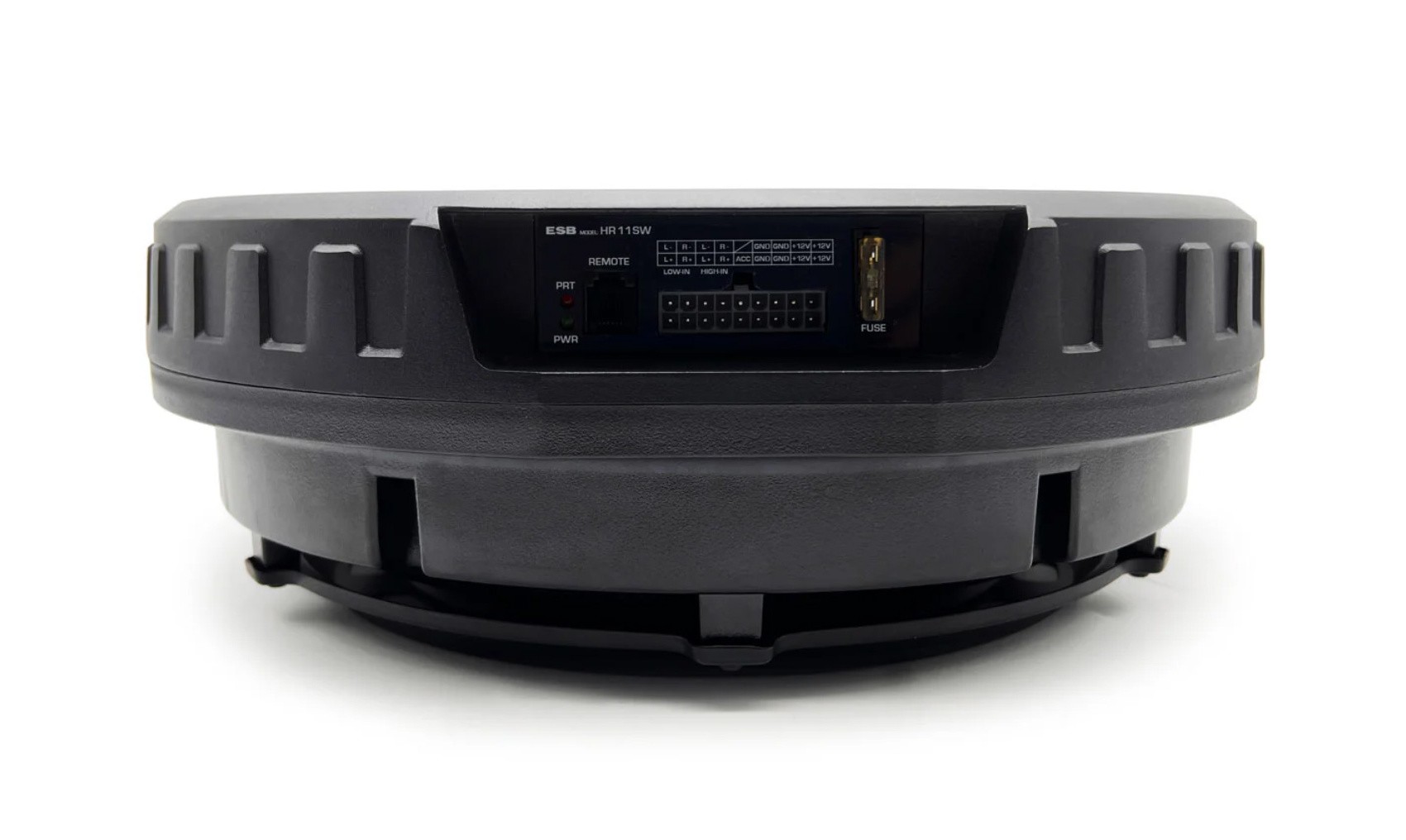

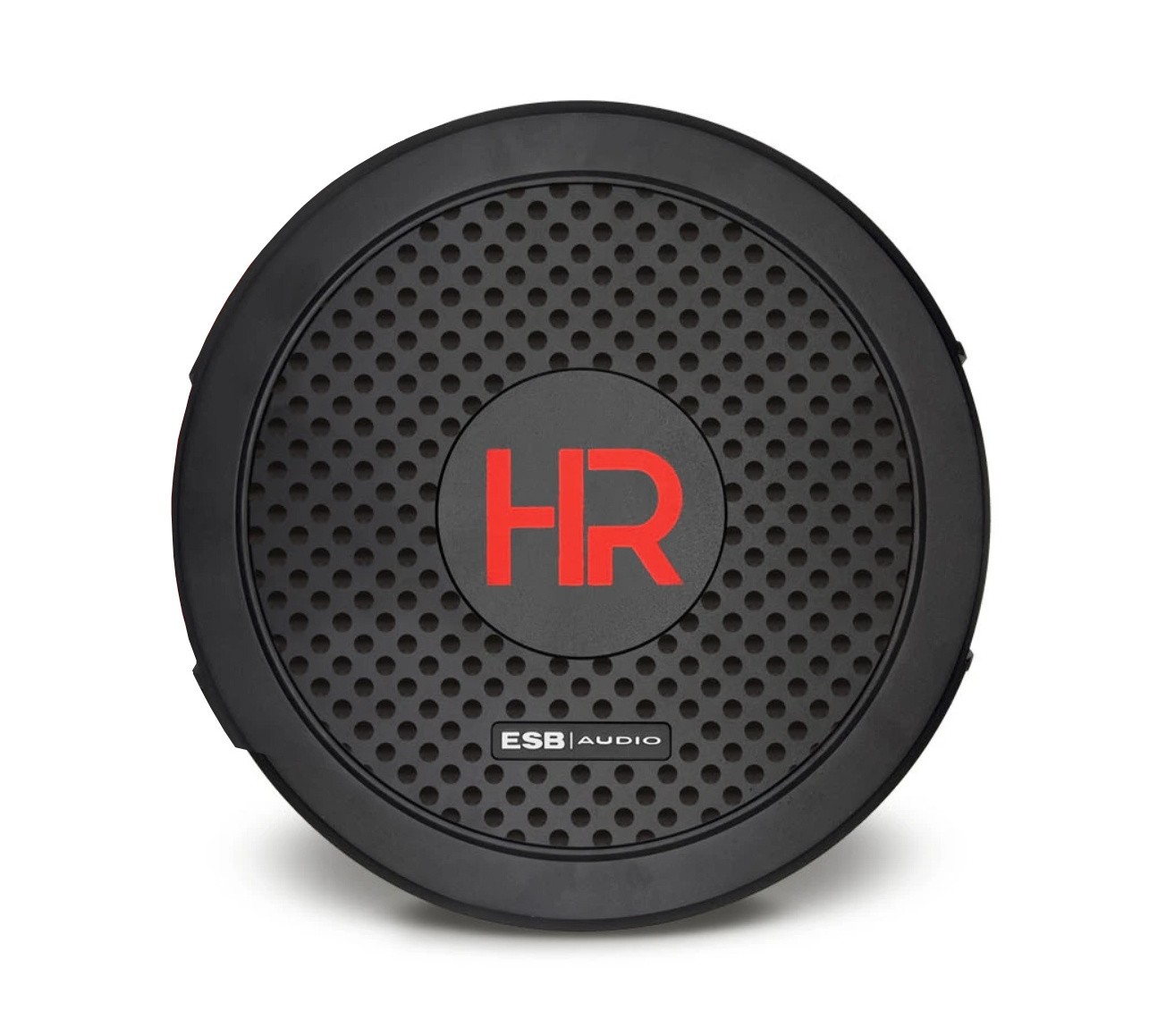

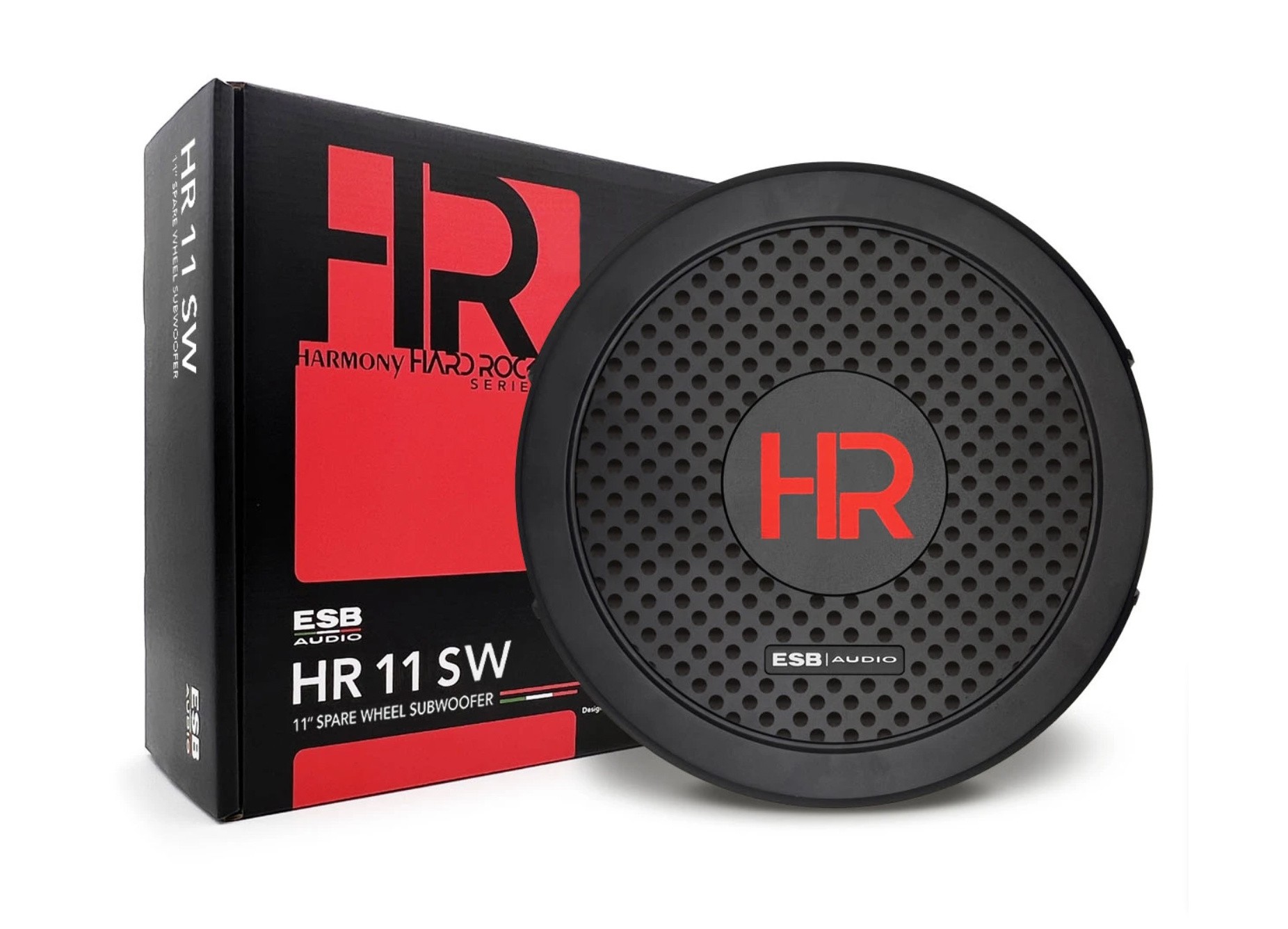

Active subwoofer for reserve ESB Audio HR 11 SW

ESB Audio presents the HR 11 SW active subwoofer from the new basic Harmony model series, which offers products with superior sound, exemplary workmanship and unobtrusive installation in the car interior. At ESB, they focused especially on acoustic quality and reliability, so that even the basic Harmony series honors the high standards of this Italian manufacturer. The HR 11 SW is an active subwoofer that fits comfortably in the rim of your spare wheel. The resulting installation is therefore completely hidden, but the subwoofer will give your sound system fantastic dynamics. The HR 11 SW will deliver powerful and dynamic sound thanks to its 11" diameter dual voice coil driver and 200 W RMS class D amplifier. The die-cast aluminum chassis makes the subwoofer robust, durable and long-lasting. You can adjust the volume level using the included remote control , change the input phase (non-inverted or inverted), crossover frequency from 50 to 150 Hz and boost the bass by up to 12 dB. Of course, there is a high-level input for easy integration with the factory system, and you can rely on automatic on and off of the subwoofer.

Model series Harmony

The Italian brand Harmony was born in the 80s together with the first home speakers produced by the Italian hi-end manufacturer ESB Audio. Car speaker production began in the 1990s with a wide range of products that combined high sound quality with a significantly lower price than ESB Audio products. And that was the main mission of the Harmony brand - to provide a high standard of sound quality with faithful reproduction of the entire sound spectrum, superior processing and all this at a more affordable price. The same applies even now, when ESB Audio decided to create a new product line Harmony Blue Note and Hard Rock. And why Blue Note? With this term, ESB Audio remembers the period of Blue Note Jazz from the 1930s to 1950s. It is a way to connect the name of audio products with important moments in modern music history. Products with the "Blue Note" label are characterized by high-quality sound without coloration for undisturbed listening to all genres of music. However, within the Harmony series you will also find "Hard Rock" products with different tuning, richer and deeper bass and higher performance. The Harmony series will gradually offer a wide range of products in order to offer a complete line of audio equipment and meet the needs of the widest group of music enthusiasts.

About the ESB Audio brand

The history of ESB Audio dates back to 1972, when this Italian brand was officially founded. ESB audio is one of the most famous speaker system manufacturers of the second half of the 20th century, and during their rich history they have launched many innovative technologies and many high-end home audio products that have achieved huge worldwide success. Based on the experience gained, in 1984, ESB engineers began to engage in research aimed at optimizing sound in the automotive environment, and two years later began the production of the first car speakers. Thanks to the great success, ESB began to focus more and more on the automotive industry and its demanding challenges. Car Audio is becoming a phenomenon of the time, and in 2005 a school dedicated exclusively to vehicle sound was founded in the city of Aprilia, where ESB is based. It was then that the final decision was made to leave the world of home audio and focus exclusively on vehicle sound systems. Currently, ESB is part of the Italian company Apex Group, together with the American manufacturer of audiophile amplifiers and DSP processors Zapco. In the offer you will find several model lines of speakers, led by the super high-end Diecimila three-way system, which represents probably the best quality and most expensive car speakers on the market today. And that is the main mission of ESB audio. To produce speakers of the highest quality, focused on faithful sound, which will allow the user to reproduce as the interpreter intended. Exactly according to the company's slogan "Just like live".

Catalog number	ESB HR 11 SW
Brand	ESB Audio
Links	Official web presentation
RMS power of the subwooferThe RMS power of an active subwoofer is the constant power that the active subwoofer can play over a long period of time. We recommend following this value. The RMS power of active subwoofers is taken as the RMS power of the integrated amplifier, which in most cases is slightly undersized, which guarantees protection against subwoofer burning.	200 W
Maximum subwoofer performancePeak performance or Max. power that an active subwoofer can play for a moment (approx. 0.5 s), for example when percussion instruments are struck in a recording. But it is not as important a parameter as the RMS power.	400 W
RMS power of the amplifier	200 W
Energy class of the amplifierAmplifiers are divided into two basic classes: analog and digital . Analog amplifiers (A/B) have higher consumption requirements, but usually have a more natural sound. Digital amplifiers (D) have significantly lower consumption and higher efficiency, but the sound may not be as faithful as with classic analog amplifiers.	D
The diameter of the subwoofer usedThe diameter of the subwoofer that is installed in the active box.	11" (280 mm)
Frequency rangeThe ability of the device to reproduce a signal from the lowest frequency to the highest, or the ability of an active subwoofer to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels for reasons of prestige. Data impoverished in this way is worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness, i.e. the undulation of the frequency course in good speaker systems for quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.	30 - 160 Hz
Low-pass filter (LPF)	50 - 150 Hz
High level inputThe high-level input on the active subwoofer enables connection directly to the speakers in the car without purchasing an external high/low converter. Use in the case of mounting an active subwoofer on the original car radio.	Yes
Automatic on and offThis function will facilitate your installation and solve the problem of finding a remote signal, which is sometimes a problem with original car radios. The active subwoofer with the Auto sense function can recognize that the equipment in the car is active and turn itself on. A useful and practical feature.	Yes
Bass boost functionBass boost or bass enhancement. With this function, the bass itself can be emphasized, at a high level of bass boost, the speakers and the subwoofer can distort a lot and the sound will be worse than better. We therefore recommend using the "bass boost" function wisely.	Yes
Phase rotation optionPhase shift is a linear electronic oscillator that produces a sinusoidal output. It consists of an inverting part of the amplifier such as a transistor. The feedback network "shifts" the phase at the output of the amplifier by 180 degrees to the oscillation frequency and gives positive feedback. The Phase shift filter produces a phase shift that increases with increasing frequency. This is usually used when the subwoofer sub-assembly is out with the magnet, or when two amplifiers are connected externally. Phase Shift is also used with active speaker wiring, where the time shift of the speakers is set. The point is that the subwoofer does not play the bass late, and for this reason better amplifiers offer this phase reversal option.	Yes
Cabling included in the packageSome active subwoofers have complete wiring included in the package. In the event that the package really includes complete wiring for connection, we mark the parameter as "yes". If the wiring is not included, it must be purchased.	No
Remote control included in the packageSome models of active subwoofers also have wired remote controls in the package, which on the one hand connect to the active box, and on the other hand you have a potentiometer that you can place anywhere in the cabin. A common place to place the remote control is under the steering wheel. The advantage is the regulation of power, and therefore volume, depending on driving conditions and the mood of the crew in the car.	Yes
What is the baffle made of?Active subwoofers can be made of MDF board, hardened plastic, sheet metal, aluminum or a combination of different materials.	Aluminum
Active subwoofer dimensions	360 x 360 x 126 mm
