Subwoofer JBL STAGE 82
8\" subwoofer, 200 W RMS, 88 dB (SPL 2.83 V/1 m), 4 Ω
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days

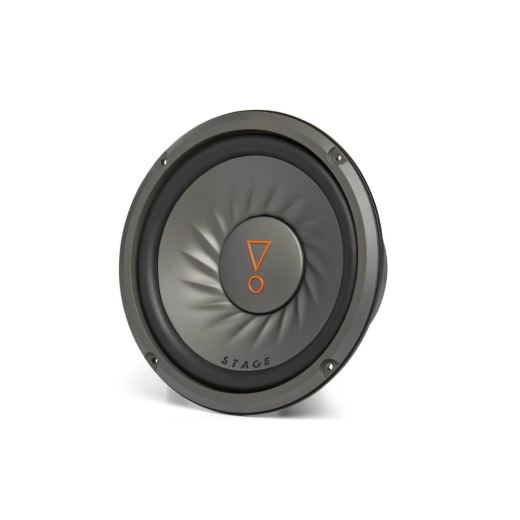

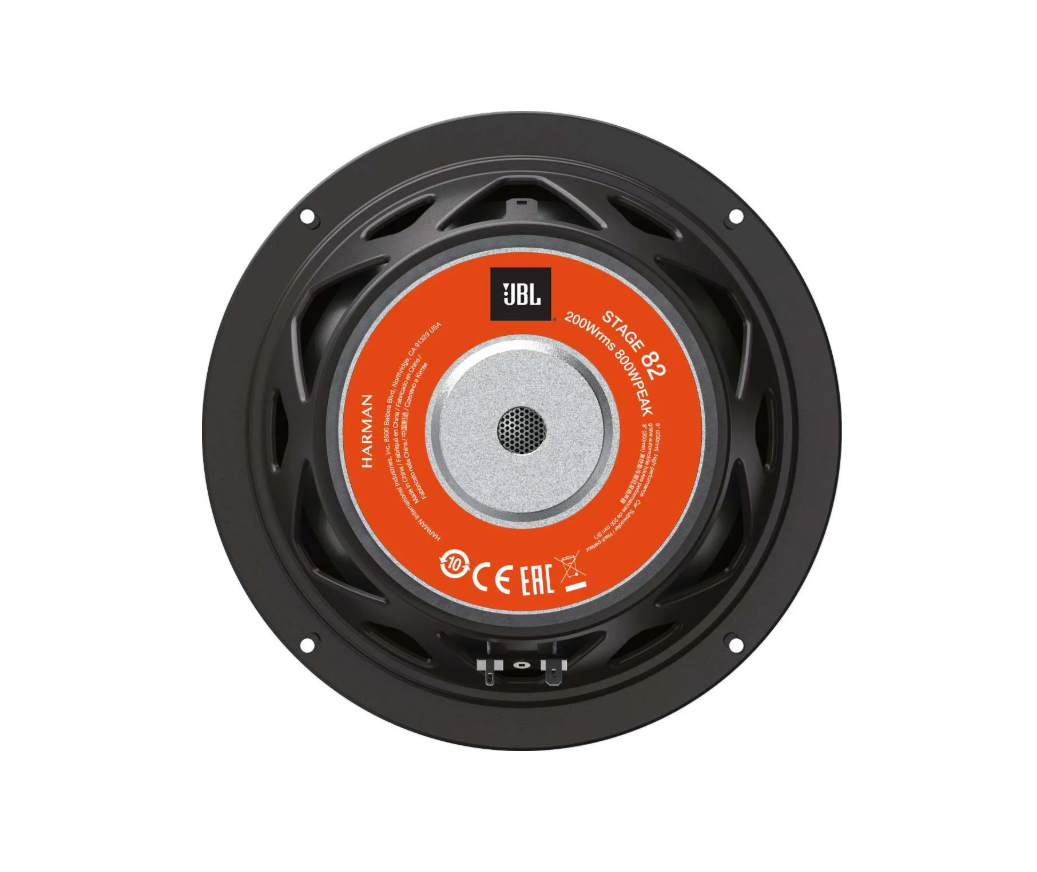

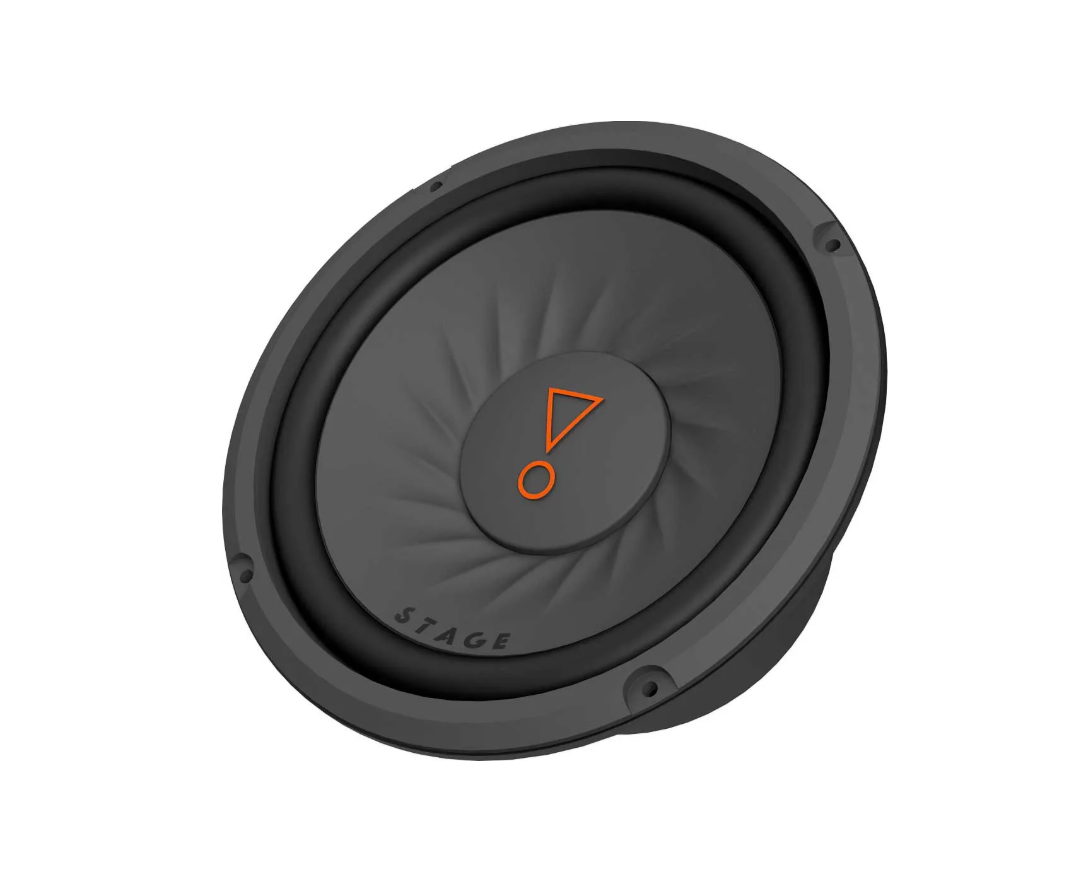

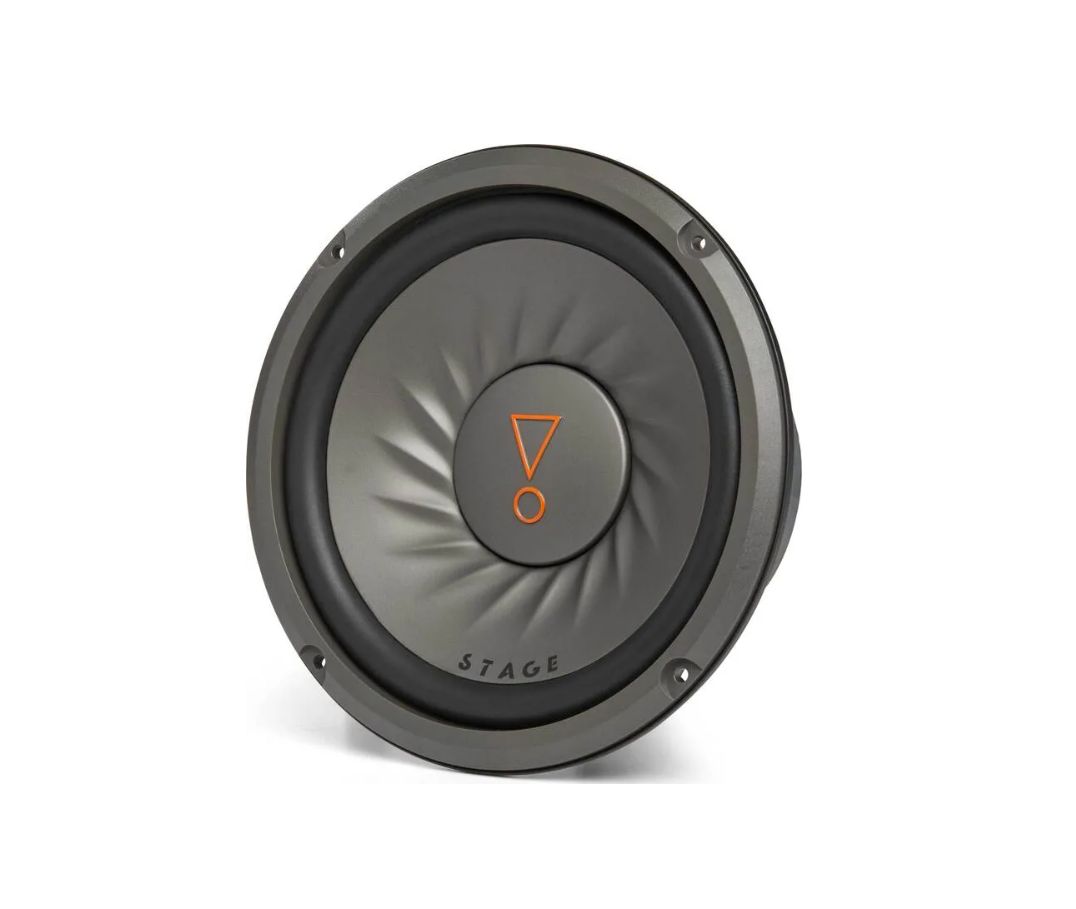

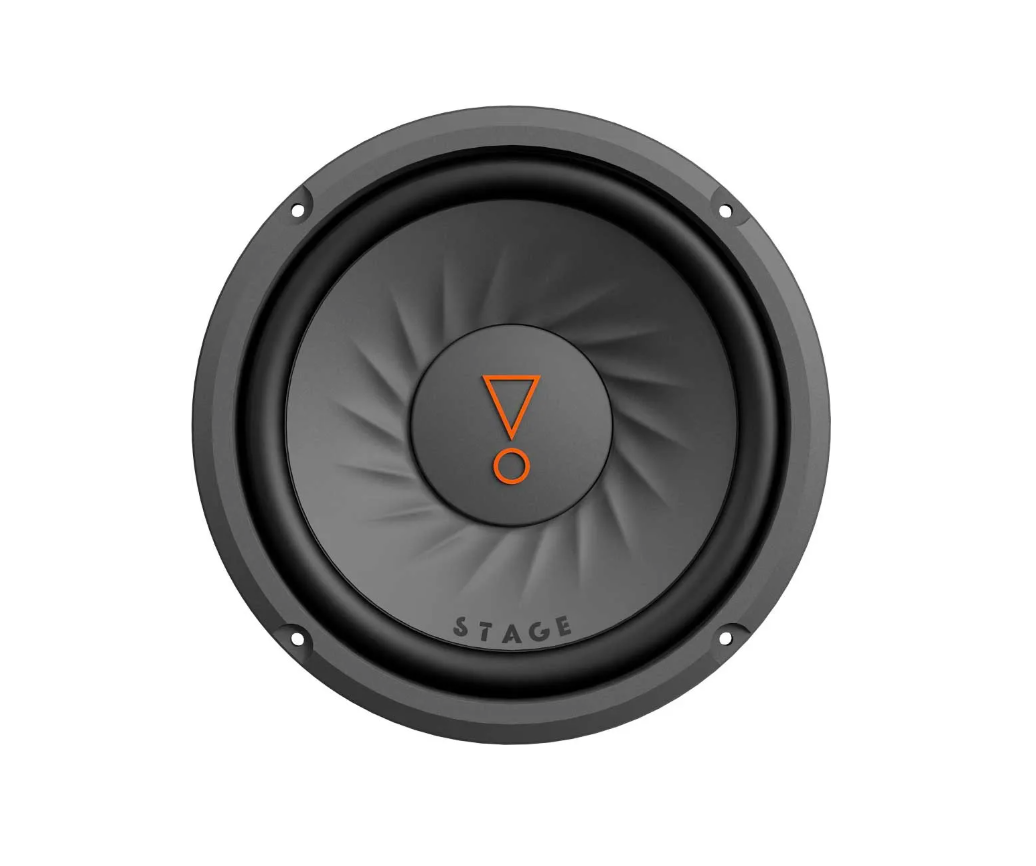

JBL Stage 82
The JBL Stage 82 subwoofer is a compact 8\" (200 mm) component subwoofer that delivers surprisingly strong, fast, and accurate bass even in smaller installations. Due to its dimensions it is ideal for vehicles with limited space, where it can still significantly improve the bass portion of the audio system.
At its core is a polypropylene cone with a hi-roll rubber surround, which ensures high durability, precise cone movement, and long life even under heavier loads. The subwoofer is tuned for high acoustic pressure (SPL) and low distortion, which is characteristic of JBL sound.
The Stage 82 model is equipped with a single 4-ohm voice coil, allowing simple wiring with most amplifiers. With 200 W RMS power and up to 800 W maximum power, it handles both everyday listening and more dynamic music with an emphasis on bass. The JBL Stage 82 is an ideal choice for anyone looking for a compact, affordable, and reliable subwoofer with good performance and easy installation.
Main features
- Component subwoofer from the JBL Stage series for strong and accurate bass.
- 8\" (200 mm) size suitable for smaller installations.
- Single 4-ohm voice coil for easy wiring.
- Polypropylene cone for a firm and controlled bass response.
- Hi-roll rubber surround for greater excursion and durability.
- 200 W RMS power for everyday and more dynamic listening.
- Maximum power up to 800 W for sufficient headroom.
- High efficiency and low distortion for a clean bass performance.
- Design tuned for high SPL and reliable operation.
- Ideal solution for upgrading or building a car audio system.
| Catalog number | STAGE 82 |
| Brand | JBL |
| Links | Official web presentation |
| RMS powerThe RMS power of the subwoofer is the constant power of continuous use of the subwoofer. If the power is exceeded for a longer period of time, irreversible damage may occur, or to burn out the voice coil of the subwoofer. | 200 W |
| Max. (maximum performancePeak performance , which the subwoofer can play momentarily (approx. 0.5 s), for example when hitting drums in a song. If the maximum power is exceeded, damage can quickly occur, or to burn out the voice coil of the subwoofer. | 800W |
| Sensitivity (SPL 2.83V/1m)Subwoofer sensitivity or efficiency. The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a de facto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88 dB subwoofer needs 300 Watts to produce a certain volume, then a subwoofer with 91 dB sensitivity needs only 150 Watts to reach the same efficiency. | 88 dB |
| ImpedanceImpedance - measurement of electrical resistance. When buying a subwoofer, it is very important that everyone make sure that the impedance matches the amplifier that you are connecting to it. For subwoofers with a double voice coil, we recommend following the information in the advice center! Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms. A 4 Ohm subwoofer can easily be used on an amplifier that is stable up to 2 Ohms. Connecting a 4 Ohm subwoofer to an amplifier that is stable up to 4 Ohms also without problems. The most common subwoofer impedance is 4 Ohm. | 4 Ω |
| Frequency rangeThe ability of the subwoofer to play a signal from the lowest frequency to the highest, or the ability of a subwoofer to faithfully reproduce sound in a specific frequency band. Subwoofers ideally play from 20 - 150 Hz. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even indicate this maximum tolerance of sound pressure in decibels in their catalogs for tactical reasons. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 38 - 200 Hz |
| Subwoofer diameterThe diameter of the subwoofer is indicated on the screw holes. The overall outer diameter of the subwoofer is usually 1-2 cm wider, depending on the size category of the subwoofer. For a 30 cm subwoofer, the outer diameter incl. protective rubber 31.8 cm and in the 25 cm subwoofer it is 26.5 cm incl. protective rubbers. | 200mm (8") |
