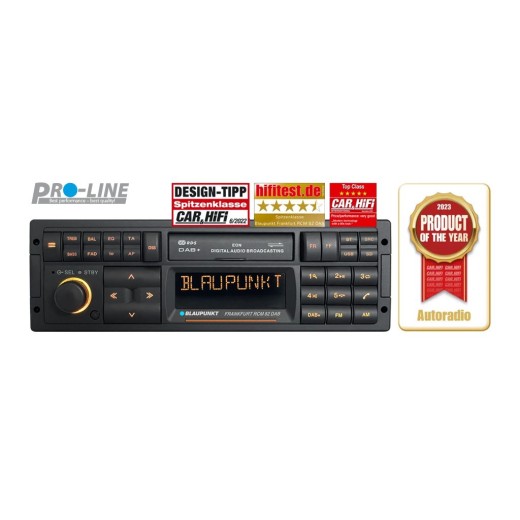

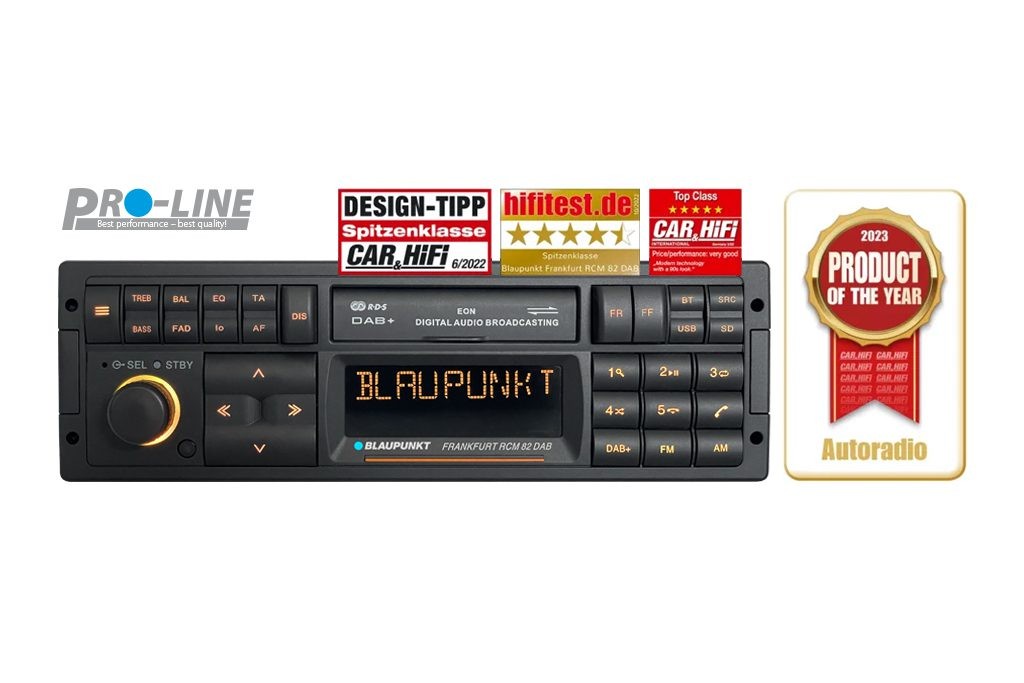

Blaupunkt Frankfurt RCM 82 DAB
The Blaupunkt Frankfurt RCM 82 DAB is a modern reissue of the legendary Frankfurt RCM 82 car radio from 1992. It preserves the characteristic 90s look but offers contemporary technology inside – DAB/DAB+, Bluetooth 5.0, 2× USB, microSD, AUX, iPod/iPhone support, two 14-band parametric equalizers and variable backlight with 4096 colors. Its short installation depth makes it particularly suitable for youngtimers and classic cars, such as BMW E30/E34/E36, Mercedes-Benz W124/R129/W140, Porsche 911/944/928 or VW Golf III.
DAB+ and High-End CODEM IV tuner
The Frankfurt RCM 82 DAB uses a High-End CODEM IV tuner supporting FM, AM, DAB and DAB+. It offers Radiotext/DLS, Travelstore, Service Following between DAB and FM and other functions for stable radio reception.
Bluetooth Twin Connect
Bluetooth 5.0 LE enables hands-free calling and wireless music streaming. The radio remembers the last 5 paired devices and with Twin Connect up to 2 phones can be connected simultaneously. It supports aptX, AAC and SBC codecs. An internal microphone and an external microphone input are available, along with access to a phonebook for up to 1000 numbers and support for voice assistants Siri, Google Assistant or Alexa.
2× USB, microSD and AUX
The radio offers front and rear USB-A, a front 3.5 mm AUX input and a microSD / microSDHC / microSDXC reader. A small USB stick or microSD card can be used with the cover closed, preserving the original retro look of the front panel. Supported formats are MP2, MP3, WMA, FLAC, M4A/AAC, APE and WAV. The radio also supports controlling compatible Apple iPod/iPhone devices via front and rear USB.
2× 14-band parametric equalizer
The Frankfurt RCM 82 DAB offers a true 2× 14-band parametric equalizer, separate bass and treble settings per source, Balance/Fader, Loudness and Rock, Pop and Classic presets. It also features variable HPF and LPF separately for front and rear channels. The built-in amplifier provides 4 × 50 W max. / 4 × 24 W RMS at 14.4 V. For external amplifiers there are 4 RCA channels with levels under 4 V and a separate stereo Sub-Out with adjustable gain and frequency.
Variocolor backlight with 4096 colors
A major advantage is the Variocolor backlight for the display and buttons with 4096 colors, allowing the radio to be color-matched to the illumination of a specific youngtimer or classic car.
Main features
- Authentic design of the legendary Frankfurt RCM 82 car radio from 1992.
- DAB/DAB+ and High-End CODEM IV FM/AM tuner.
- Bluetooth 5.0 LE with Twin Connect function.
- Memory of the last 5 paired devices.
- Possibility to connect 2 phones simultaneously.
- Internal and external hands-free microphone.
- Support for aptX, AAC and SBC codecs.
- Front and rear USB-A inputs.
- microSD, microSDHC and microSDXC reader.
- Front 3.5 mm AUX input.
- Support for MP2, MP3, WMA, FLAC, M4A/AAC, APE and WAV.
- Direct control of compatible Apple iPod/iPhone.
- 2× 14-band parametric equalizer.
- Variable HPF and LPF.
- Loudness function and sound presets.
- Maximum power 4 × 50 W.
- Four-channel RCA preamp output.
- Separate adjustable Sub-Out.
- Analog programmable steering wheel control.
- Variocolor backlight with 4096 colors.
- Short installation depth of only 116 mm.
- Permanent memory of settings and presets.
Technical specifications
- Format: 1DIN.
- Tuner: FM / AM / DAB / DAB+.
- Bluetooth: 5.0 LE.
- Paired devices: Max. last 5.
- Simultaneously connected devices: Max. 2.
- Bluetooth profiles: A2DP, AVRCP, HFP, SPP.
- Bluetooth codecs: aptX, AAC, SBC.
- Internal microphone: Yes.
- External microphone: Yes.
- Front USB: Yes, USB-A.
- Rear USB: Yes, USB-A.
- Memory card: microSD / microSDHC / microSDXC.
- AUX: Yes, front 3.5 mm.
- Supported formats: MP2, MP3, WMA, FLAC, M4A/AAC, APE, WAV.
- iPod/iPhone: Yes, via USB.
- Equalizer: 2× 14-band parametric.
- HPF / LPF: Yes, variable.
- Loudness: Yes.
- Sound presets: Rock, Pop, Classic.
- Maximum power: 4 × 50 W.
- RMS power: 4 × 24 W at 14.4 V.
- RCA outputs: 4 channels, < 4 V.
- Sub-Out: 2× RCA, adjustable level and frequency.
- SWC: Yes, analog and programmable.
- Backlight: Variocolor, 4096 colors.
- Display: 2-line negative LCD.
- Front panel: Fixed.
- Power supply: 10.5–14.4 V.
- Standby current: < 3.5 mA.
- Body dimensions: 50 × 178 × 116 mm.
- Weight: approx. 0.67 kg.
What's in the box
- Blaupunkt Frankfurt RCM 82 DAB car radio.
- External Bluetooth microphone.
- ISO A/B connection wiring.
- DIN/ISO antenna adapter.
- Removal tools.
About the brand
Blaupunkt is a traditional and globally recognized brand with a long history in automotive electronics. For decades it has been primarily associated with car radios and practical automotive accessories. Today’s range includes modern car radios with Bluetooth, handsfree, digital DAB+ radio, USB or support for Apple CarPlay and Android Auto. There are also popular retro-designed models that combine a classic look with modern technology. These retro car radios are particularly interesting Blaupunkt products. They are ideal for youngtimers and classic cars where preserving the original look and interior atmosphere is important. The brand also offers subwoofers, car antennas, reversing cameras, monitors and other installation accessories. Blaupunkt appeals to drivers who seek a well-known brand, simple and functional solutions, good compatibility and a balanced price-performance ratio.
| Catalog number | FRANKFURT RCM 82 DAB |
| Brand | Blaupunkt |
| Links | Official web presentation |
| Car radio sizeCar radios are divided into 2 basic sizes, 1DIN car radios and 2DIN car radios . 1DIN size car radios - the exact dimensions including the metal frame where the car radio is inserted are 184 x 53 mm, the external dimensions of the branded 1DIN car radio are 188 x 59 mm. We know 2DIN car radios from newer vehicles, a classic example is the VW Golf IV with navigation. The dimensions of a 2DIN car radio without a metal frame are 180 x 101 mm, the external dimensions of a branded 2DIN car radio are 189 x 119 mm. | 1DIN |
| CD driveCar radios with CD drive. Car radios that have an input slot for inserting a CD. | No |
| Integrated BluetoothBluetooth is a communication technology used for wireless connection between two or more electronic devices. A mobile phone, for example, can be connected to a car radio with built-in Bluetooth. Most car radios for 2017 and later can also wirelessly stream (play) music via Bluetooth -> A2DP function. | Yes |
| USB inputThe USB input of the car radio is used to connect a USB flash drive or smartphone. Today, playing music via USB is the most popular way to listen to music in the car. The USB input can be front (on the front panel of the car radio) or rear (on the back of the cable). | Yes |
| SD card accessModern branded car radios can play SDHC SD cards up to 32 GB, sometimes even 64 GB. The SD card slot is behind the front panel in most car radios. | Yes |
| Supported formats via USB inputList of all supported formats (MP3, AAC, Flac, DivX, etc.) that the car radio can play via USB input. | MP2, MP3, WMA, FLAC, M4A (AAC), APE, WAV |
| Apple CarPlayApple CarPlay is a completely new option for connecting a smartphone to a car radio that has the Apple CarPlay function. The connection is only by cable, thanks to the high data flow. You click on the Apple CarPlay icon on the car radio screen and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. It also works with voice control and Siri. | No |
| Android AutoGoogle's Android Auto is a completely new option for connecting a smartphone to a car radio that has the Android Auto function. The connection is only by cable, thanks to the high data flow. The Android OS requirement is at least version 5.0. You click on the Android Auto icon on the car radio screen, and application icons appear on the car radio screen like on a smartphone, and you can continue to control everything using the car radio. Voice control and GPS signal also works. | No |
| Car radio performanceThe performance of the car radio shown in maximum values. This is therefore the MAX value. The performance of the internal amplifier of the car radio. Today, the RMS power of a car radio ranges from 17 - 30 W RMS per channel. | 4 x 50 W |
| Number of RCA outputsRCA outputs , colloquially called "cinches", are used to connect an external amplifier or active subwoofer. Aftermarket car radios are usually equipped with 1 to 3 pairs of RCA outputs. FRONT, REAR and SUB are used. It also depends on how many volt outputs the car radio is equipped with. More basic models of car radios have 2V outputs, more expensive units have 4V and more. The higher the specified value, the less power demands are placed on the external amplifier and the sound quality increases. | 3 pairs |
| Output level on RCAAn important parameter if you are going to install an external amplifier. If you purchase a car radio with a basic value, i.e. 2V outputs, then greater demands will be placed on the power of the amplifier. As the value increases, e.g. 4V or 5V, the power of the external amplifier increases significantly, in layman's terms. A car radio with strong outputs therefore has the advantage that you do not pull so much power through the amplifier and thus achieve a better sound, as external amplifiers lose control at higher loads. | 4 V |
| Backlit buttonsColor options for the backlight of the car radio buttons. | Variable |
| External microphone included in the packageThe external microphone is connected from the back of the car radio to the input marked "MIC". For ideal sound quality during a phone call, we recommend placing the external microphone on the left "A" pillar at the point where the "A" pillar and the roof panel connect to each other. A very good position to place an external microphone is also near the central rear-view mirror. | Yes |
| Remote control includedCard IR remote control of the car radio, thanks to which certain functions of the car radio incl. control the volume from the hand, remotely. | No |
| Removable front panelPossibility to remove the entire front panel of the car radio by pressing the side button. A very effective weapon against car radio theft. We recommend not hiding the panel in the vehicle, but taking it with you. Alternatively, place the panel in a hidden place in the trunk, but not when leaving the car, but before parking. You never know when a thief might be watching you. | No |
