Smartphone mirroring module via USB cable CA450

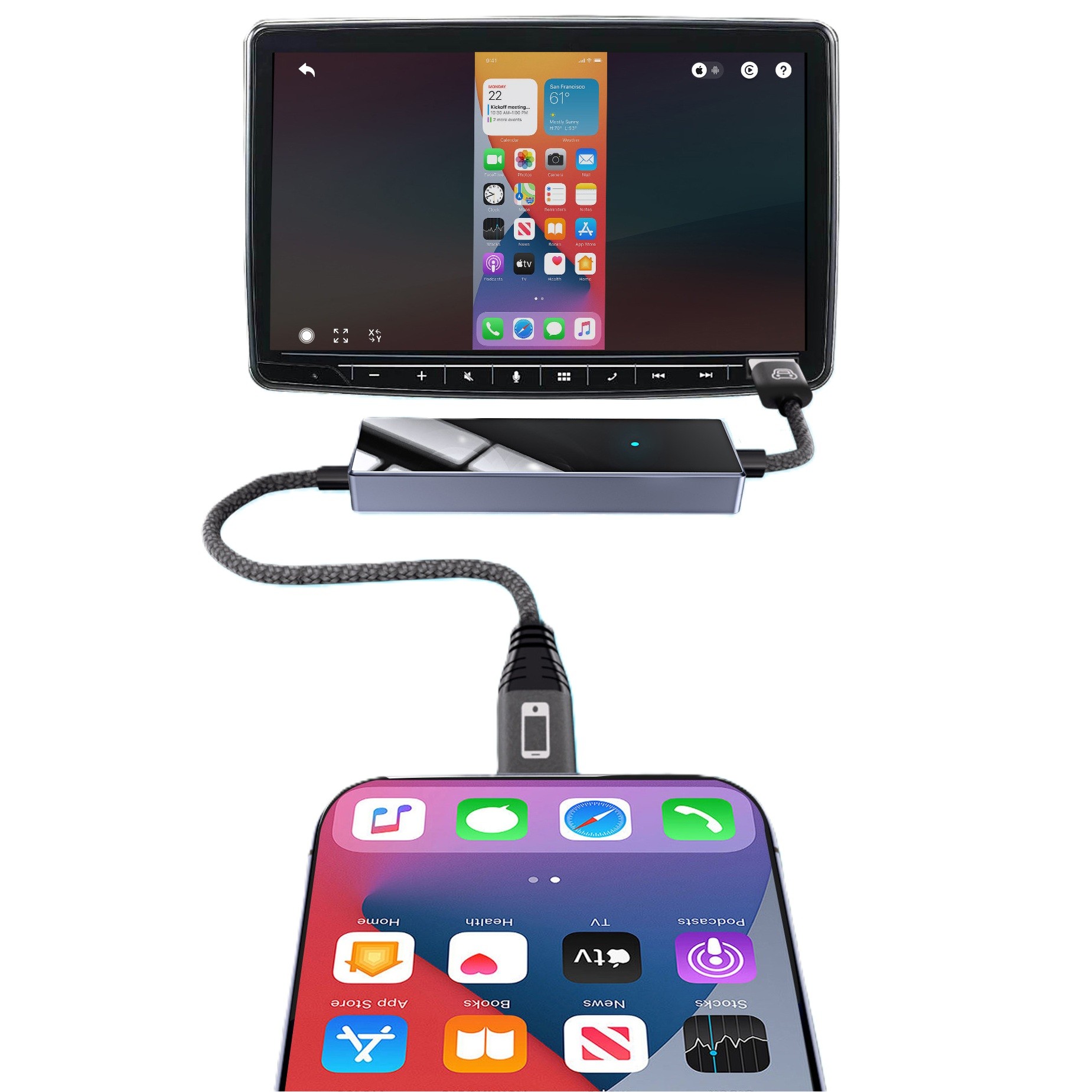

Universal module for unrestricted phone content mirroring over a USB connection. Faithfully mirrors your smartphone display to your car screen. Supports Android phones with DP (DisplayPort) capability as well as iPhone 15 and 16 series. CA450 also enables wireless connection of the phone to Apple CarPlay / Android Auto. The module is designed for vehicles with a wired Apple CarPlay / Android Auto head unit. In addition to unrestricted phone mirroring over USB, the module also allows wireless connection to Apple CarPlay / Android Auto. Control of supported apps is preserved via the vehicle touchscreen, steering wheel buttons, or other existing controls. Simple installation — plug into the vehicle USB slot intended for the phone. The phone connects to the vehicle head unit through the module automatically (after initial Bluetooth pairing).
Mirroring
- Extremely fast mirroring with a delay of 0.08 seconds.
- Two-way control — via the vehicle display and via the mobile display.
- Mirroring on the vehicle display continues even when the phone display is in sleep mode.
- Security first — the vehicle unit only mirrors the phone (so all messages, logins, history and data remain on your phone).
- Power delivery — when an optional charging USB-C cable is connected to the module, the phone can be charged with up to 27 Watts.
Mirroring provides features focused on safety and performance. All your messages, login credentials, history and data remain stored exclusively on your phone, ensuring maximum personal data protection. With a display latency of only 0.08 seconds, which the human eye cannot perceive, use is fast and smooth. The highly adaptive technology ensures the system automatically switches to full-screen orientation for most apps and display functions, allowing you to take full advantage of your phone.
Main features
- Faithful mirroring of the phone display without restrictions over USB connection.
- Converts OEM wired CarPlay / Android Auto to wireless.
- Preserves the original control methods.
- Processor: Single-core Allwinner V815S3.
- RAM + ROM: 128 MB + 16 MB.
- Wi‑Fi: Dual-band 802.11 a/b/g/n 2.4 GHz + 5 GHz.
- Bluetooth: BT 4.0.

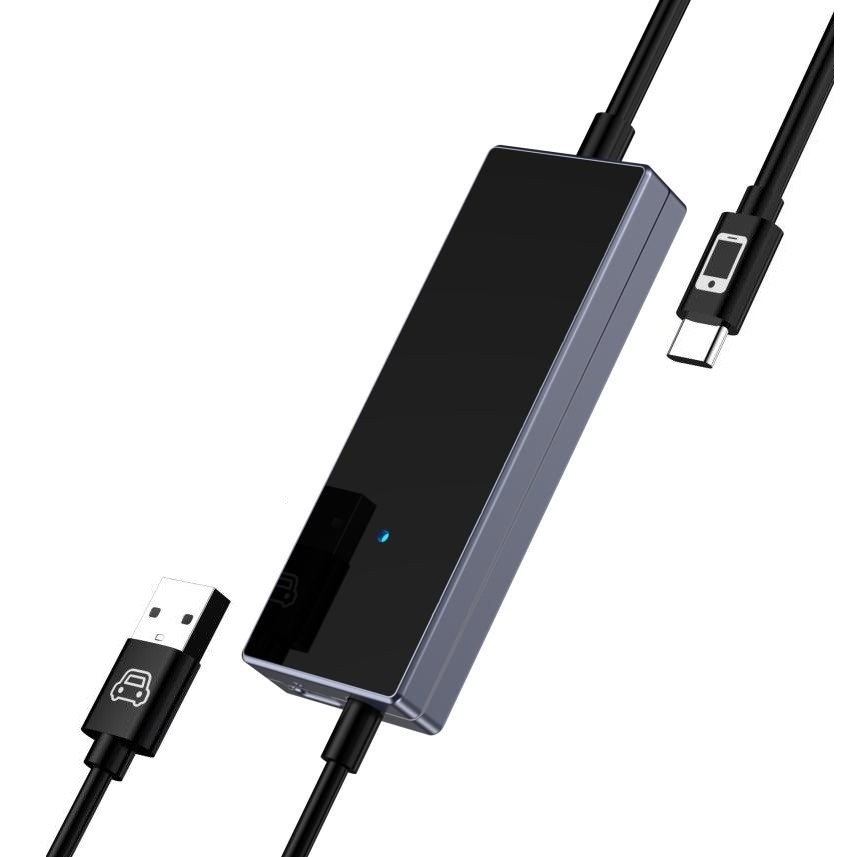

- Connectors:
- USB A male — to the car USB
- USB C male — to the phone
- USB C female — for power input from the cigarette power socket
- Dimensions: 13 x 34 x 94 mm.
- Micro button (long press for 10 seconds erases all data and restores factory settings).
- Status LED indicator.

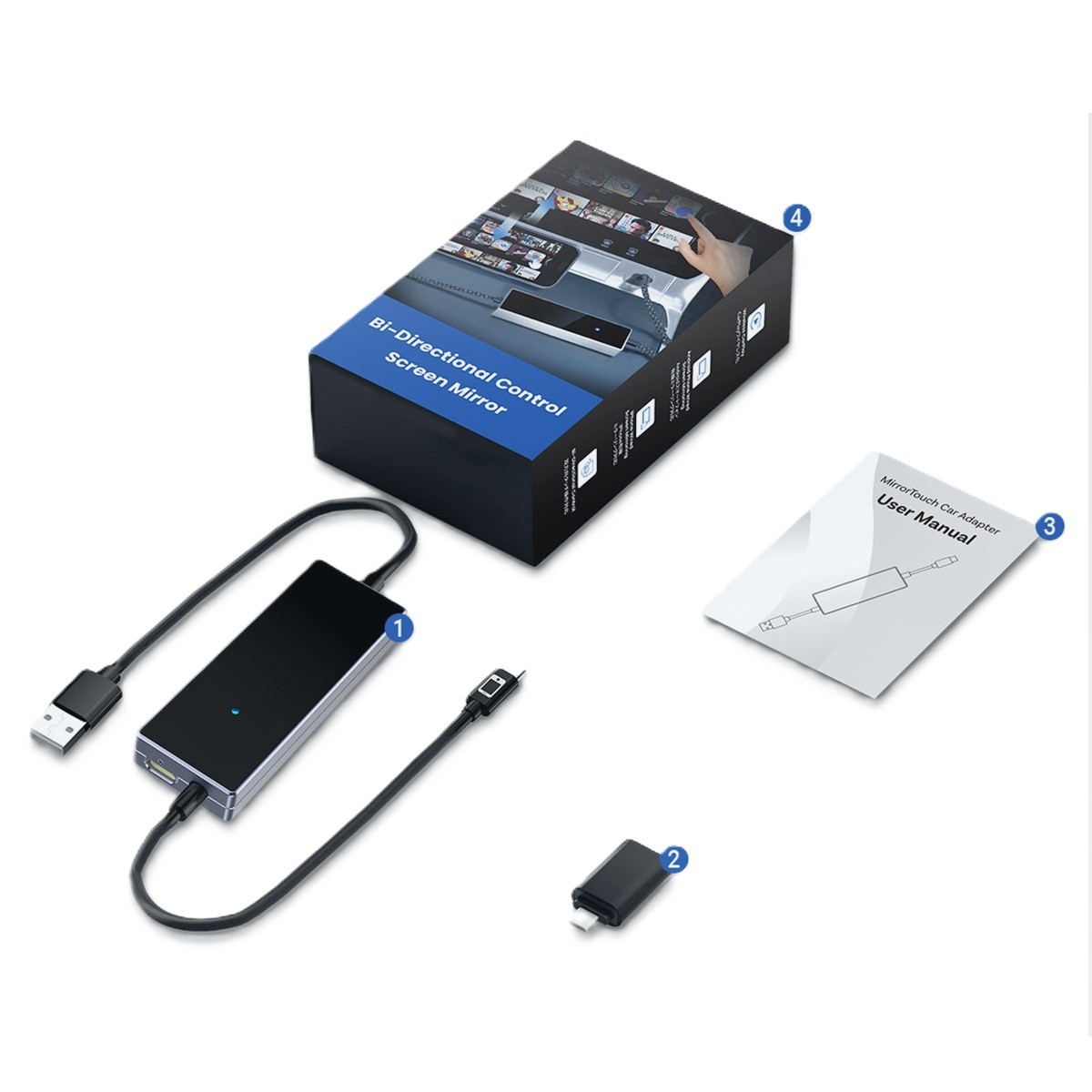

Package contents
- Module.
- USB-A / USB-C adapter (female / male).
- User manual.
Smartphone compatibility for display mirroring
CA450 supports Android smartphones with DP (DisplayPort) technology and iPhone 15 and 16 series, allowing you to mirror the phone display to your car screen. Check whether your device supports screen mirroring via DP. Some phones require manual activation of the "DeX" function from the notification/status bar.
To verify phone compatibility, consult the compatibility list provided by the manufacturer.
| Catalog number | CA450 |
| Brand | TSS Group |
