Module for wireless connection Carplay and AndroidAuto CA505 Mini
More about the product
- You can return the goods to us within 14 days

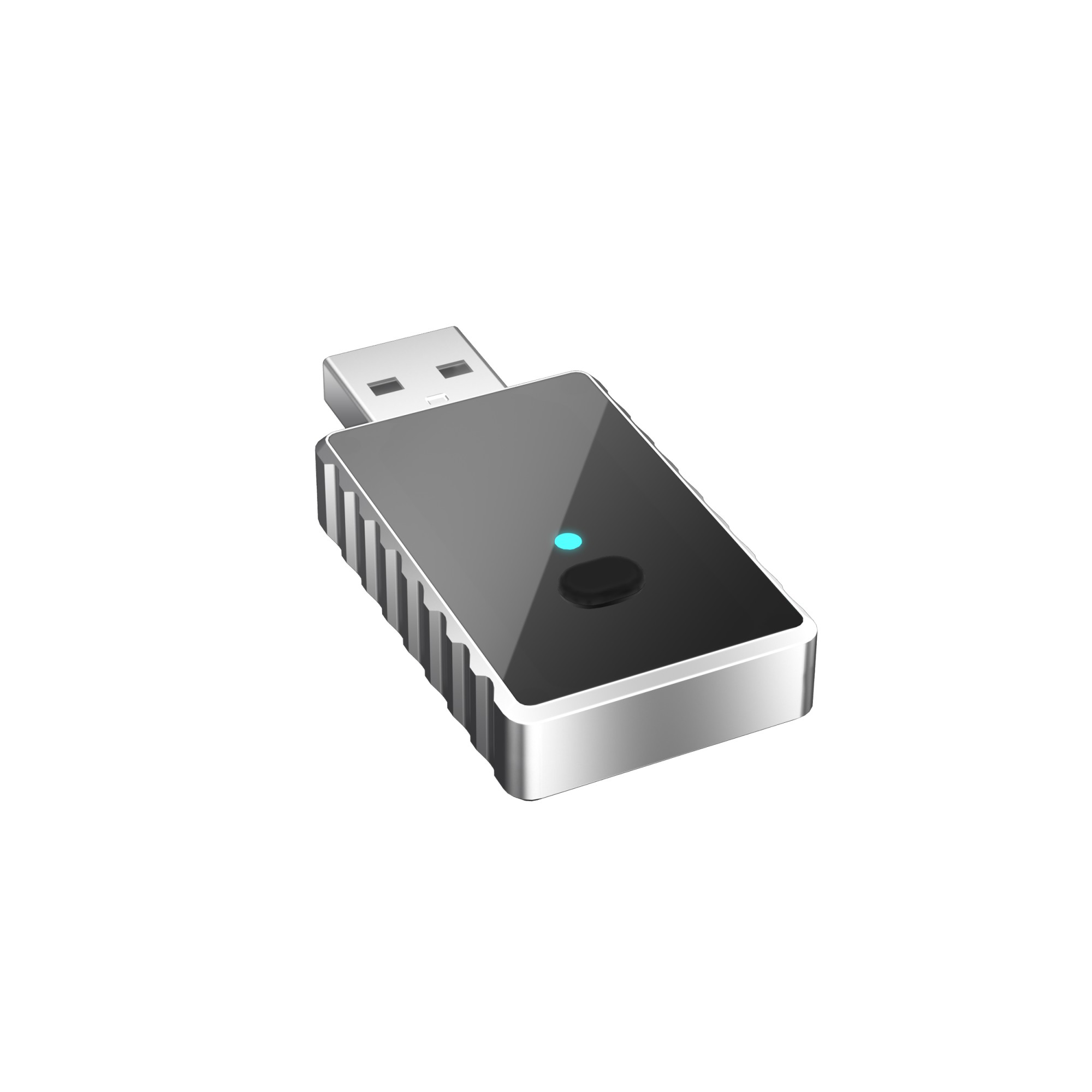

Wireless CarPlay and Android Auto Connection Module CA505 Mini

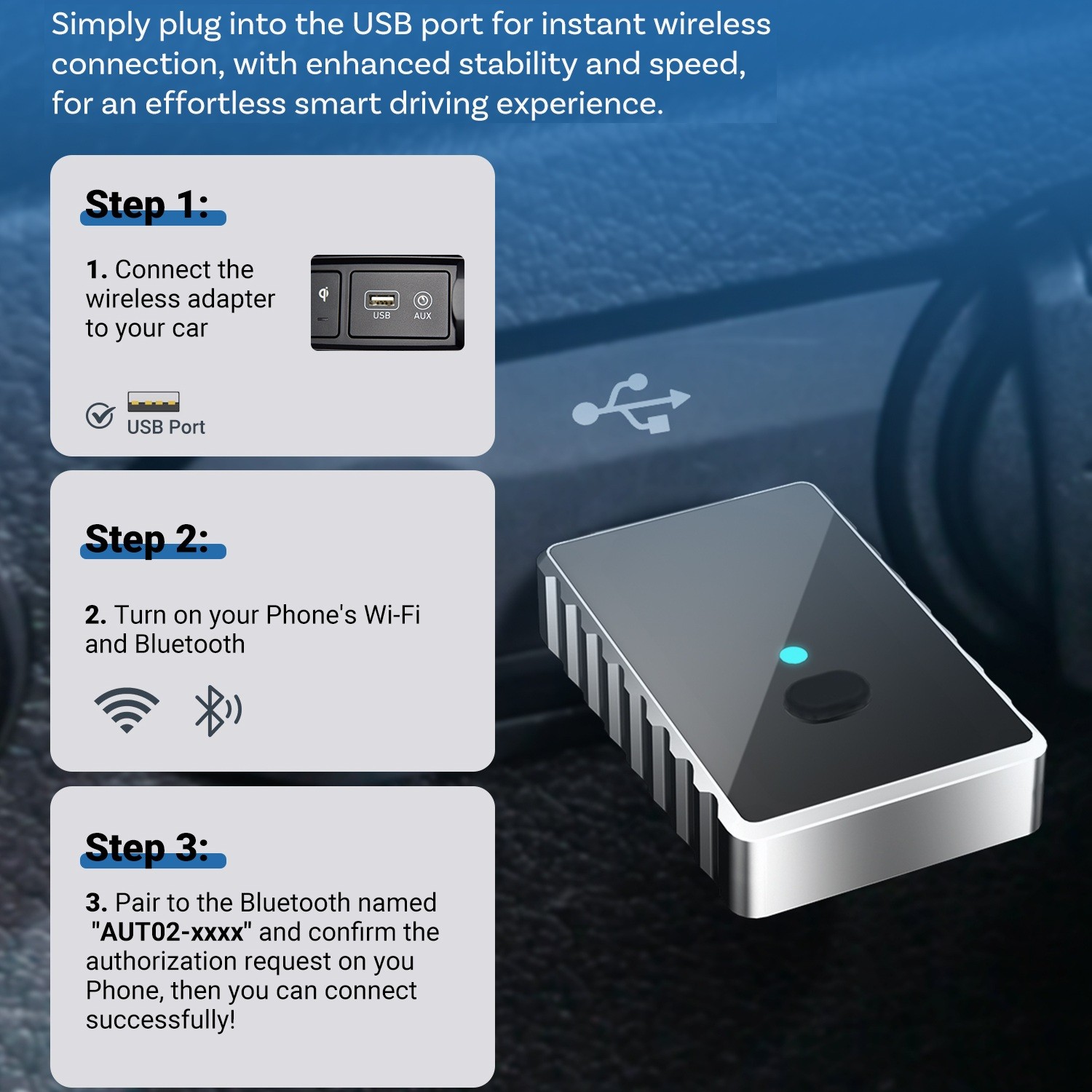

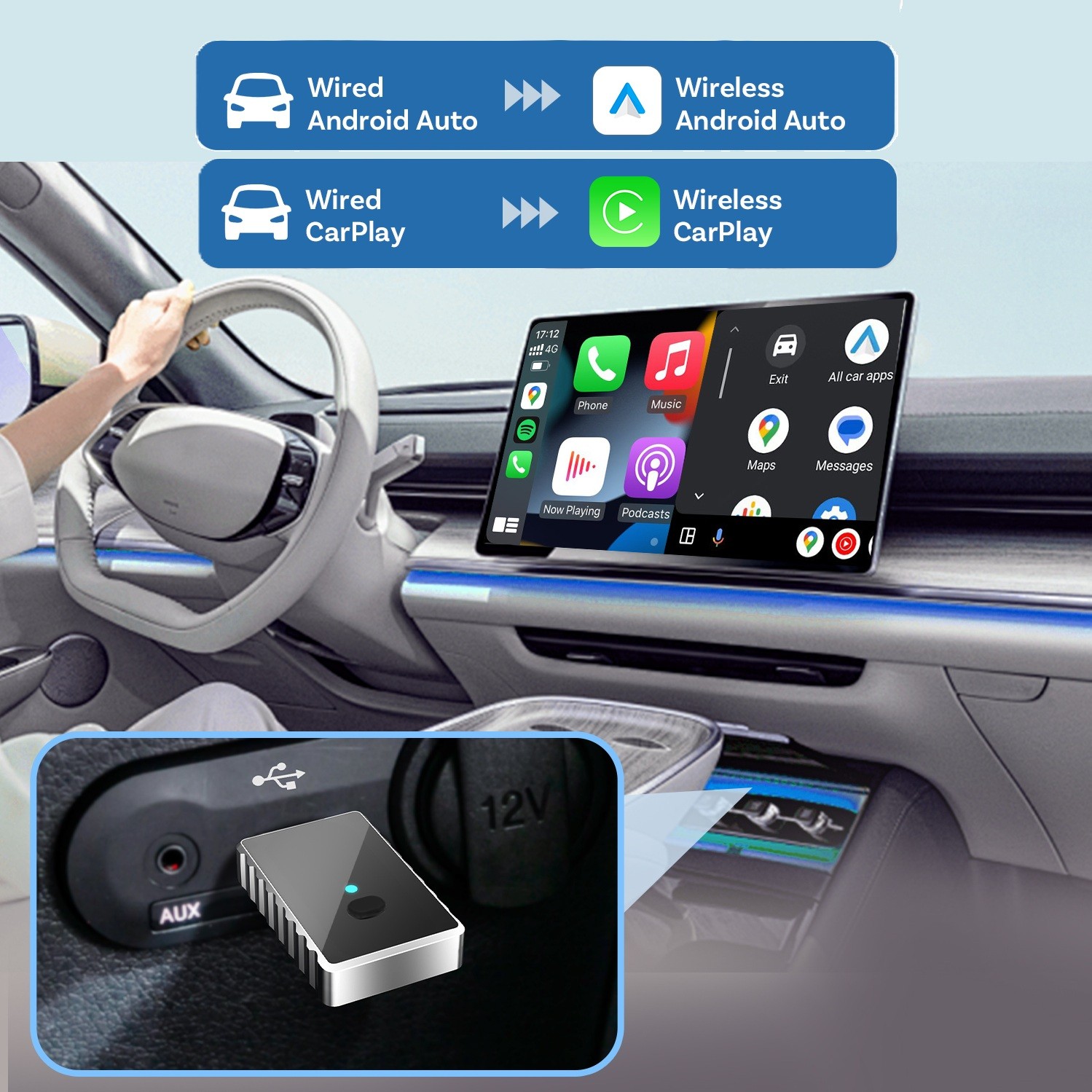

Universal miniature adapter for wireless connection of Apple CarPlay / Android Auto. Designed for vehicles with a wired Apple CarPlay/Android Auto head unit. Control of supported apps remains available via the touchscreen, steering wheel buttons, or other controls. The module is easy to install — plug it into the vehicle USB port intended for a phone. The phone connects to the vehicle head unit through the module automatically (after the initial Bluetooth pairing). With the CA505 mini module you no longer need to plug your phone into the vehicle USB. The connection to the vehicle's Apple CarPlay / Android Auto head unit is established automatically over Wi‑Fi whenever the ignition is switched on. The module stays permanently plugged into the vehicle USB port instead of the phone, so you can enjoy cable-free freedom.
Main features
- Converts OEM wired CarPlay / Android Auto to wireless.
- Preserves the original control methods.
- Smart button for disconnecting and resetting.
- Operating system: Linux.
- Processor: Single-core ARM Cortex-A7 900 MHz.
- RAM + ROM: 64 MB + 16 MB.
- Wi‑Fi: Dual-band 802.11 a/b/g/n 2.4 GHz + 5 GHz.
- Bluetooth: BT 5.4.
- Power: USB 5V.
- Operating temperature: -20 to 70 ℃.
- Connectors: USB adapter (Type A to C).

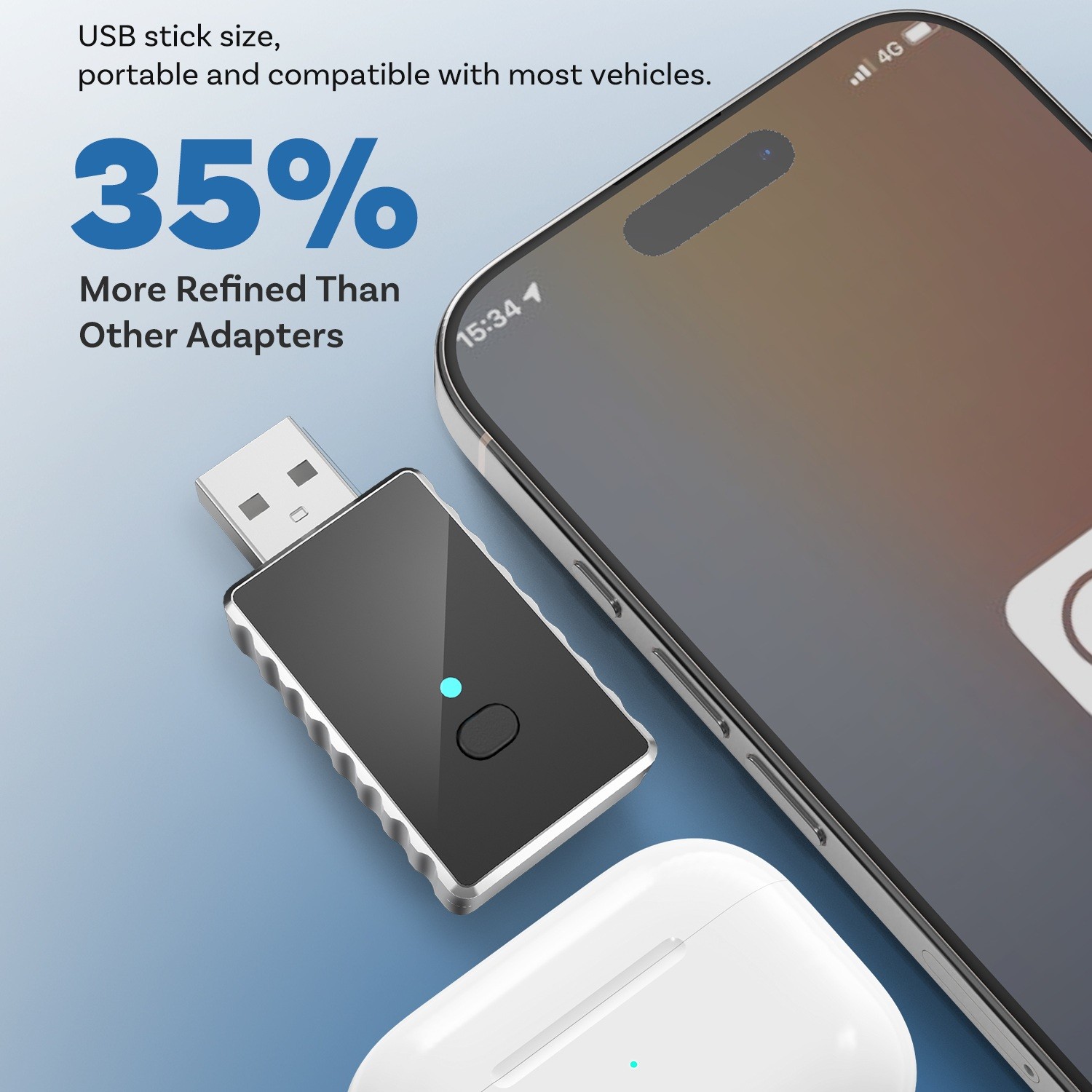

- Dimensions: 8 x 24 x 50 mm (without USB‑C adapter).

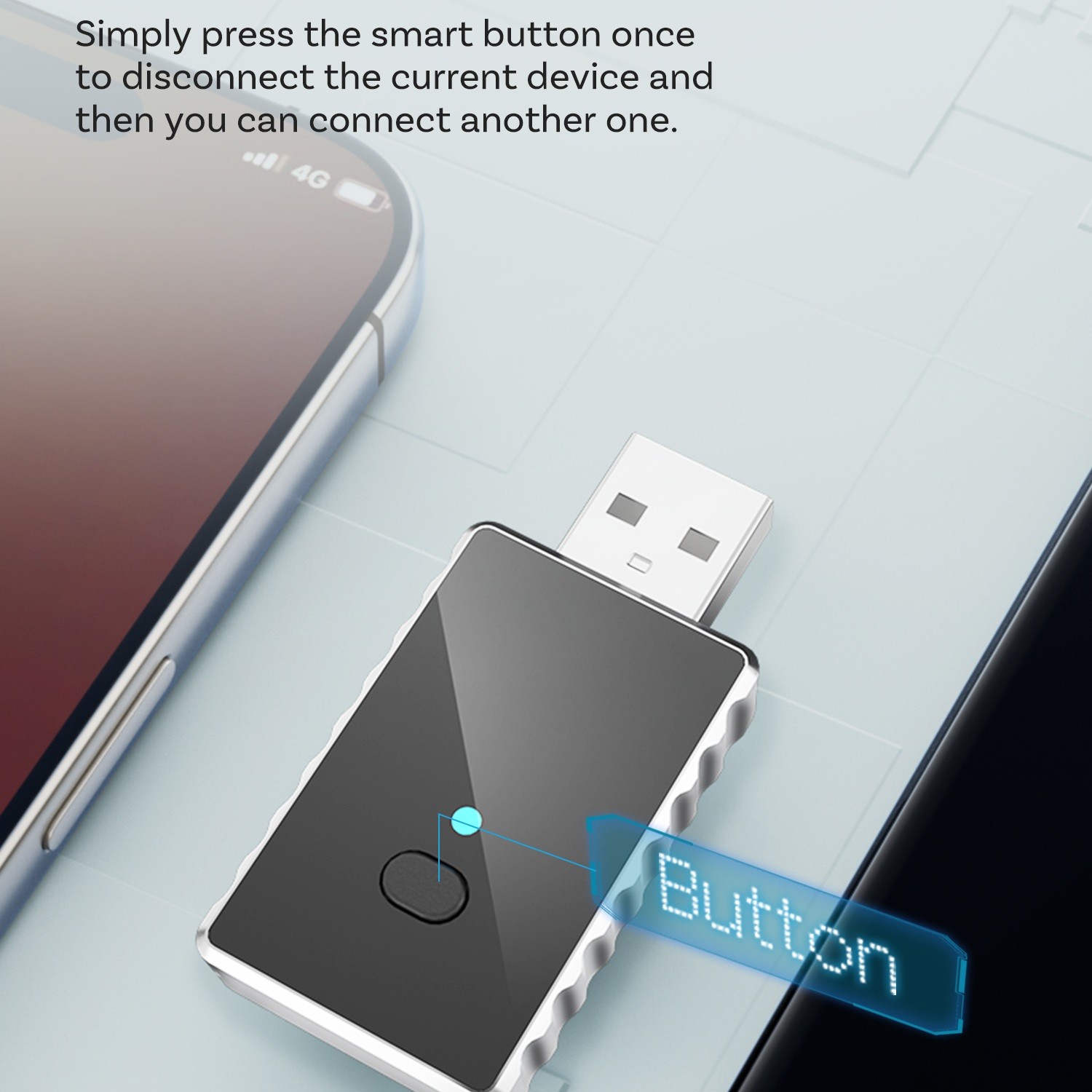

- Smart button.
- Tap to disconnect the current connection.
- Long press for 15 seconds to erase all data and restore factory settings.
- Indicator LED
- Solid red: powered on
- Blinking blue: automatic communication successful
- Solid blue: mobile phone successfully connected
- Blinking red and blue: firmware update in progress...
- Blinking white: firmware update completed
- Blinking red: unexpected firmware update
- Blinking white: reset completed

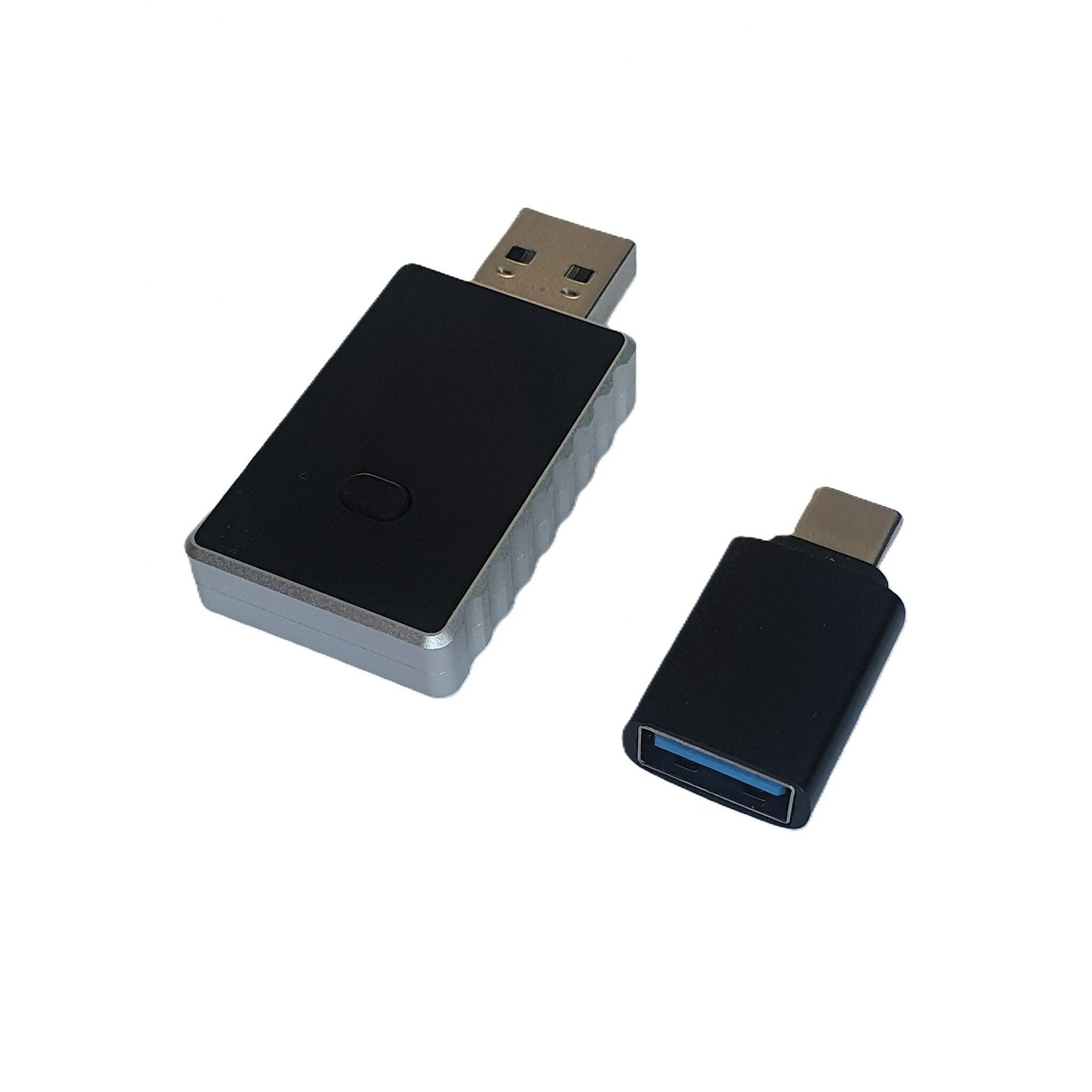

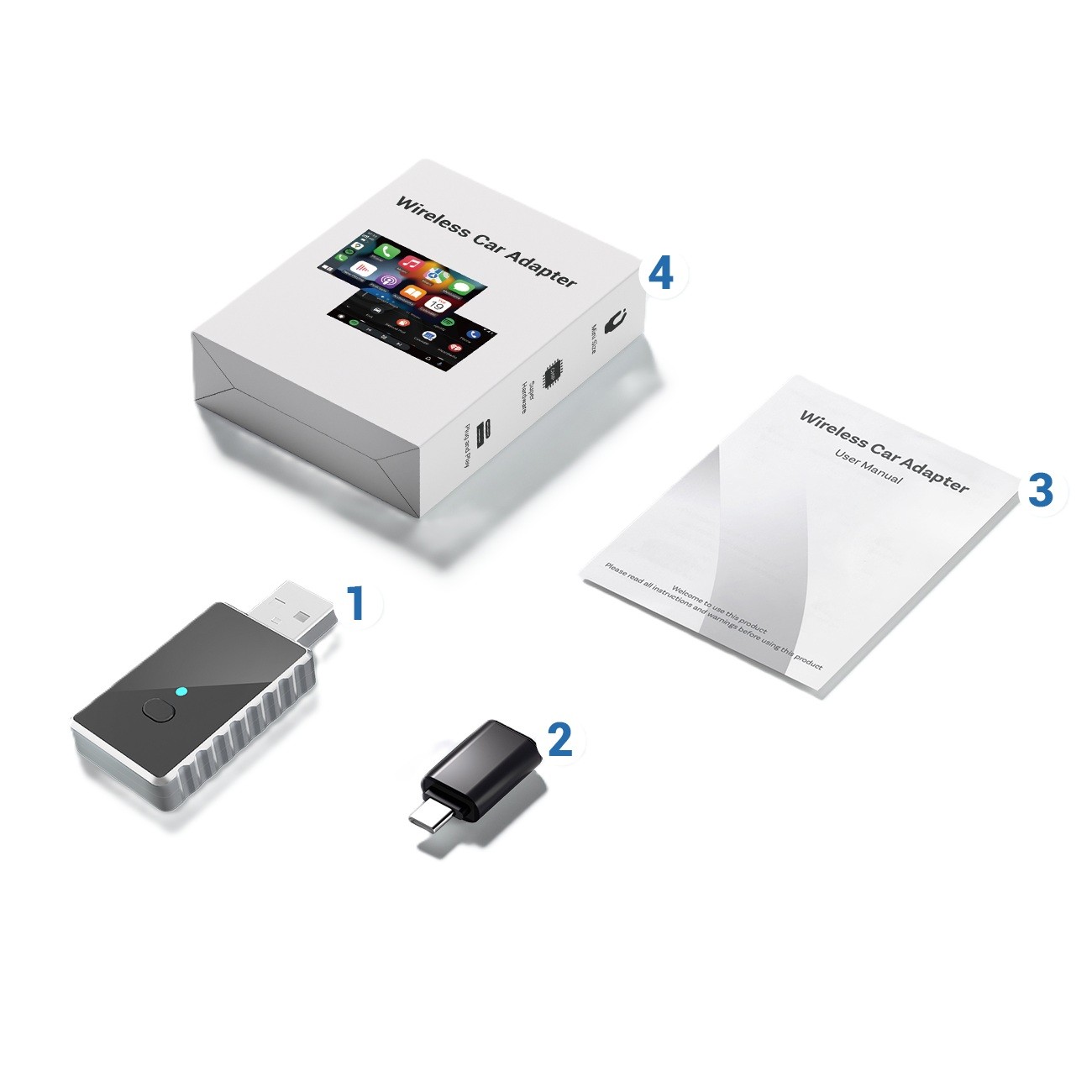

Package contents
- Wireless module.
- USB-A / USB-C adapter (female / male).
- Manual.
| Catalog number | CA505 |
| Brand | TSS Group |
